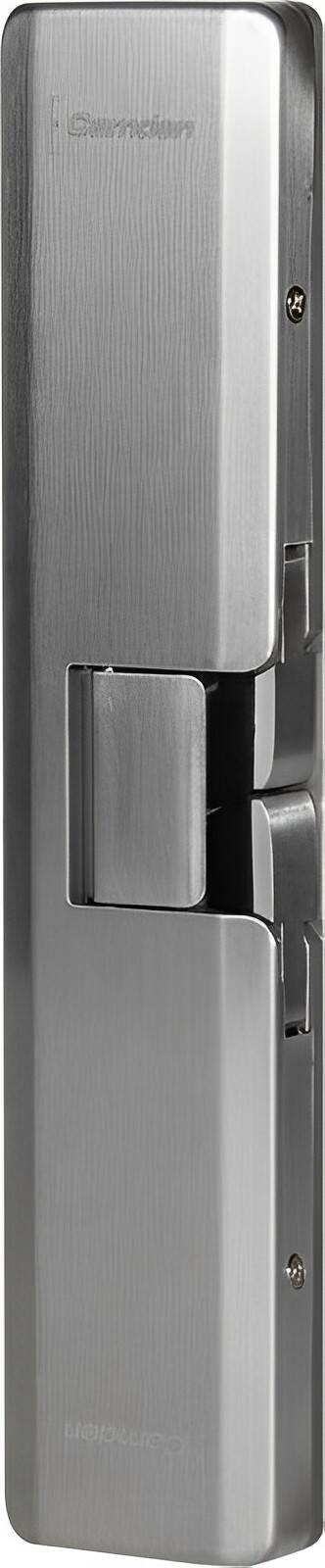

Camden Surface Mount RIM Strike, w/ Preload, 12/24V AC DC, Plugin Latch Mon Overview
Camden introduces the first surface mount RIM strike with preload in the security industry. CX-EPD1289L grade 1 surface mount RIM strike, with latch monitoring, also offers a ‘Universal’ strike design that delivers unparalleled application flexibility, with both UL security and fire listings.
Preload is the pressure exerted on the keeper of a strike that causes the mechanism to fail to release. Whether caused by air pressure, a misaligned door, or inexact installation, CX-EPD1289L RIM strikes are designed to operate where other strikes fail!
Camden Surface Mount RIM Strike Features
- ‘No Cut’ surface mount RIM strike for Pullman latches
- Operates with up to 15 lbs. of preload pressure
- 'Universal’ design with selectable:
- 12/24V, AC/DC operation
- Fail-Safe/Fail-Secure Operation
- 3/4"" latch projection
- Latches operate independently of each other
- Metal mounting jig included for easy installation
- Patented design
- Heavy-duty stainless steel construction
- Horizontal adjustment, spacer plate available
- A removable latch monitoring switch included
- Non-handed, left or right
- 5-year warranty
Camden Surface Mount RIM Strike Specifications
- Latch Projection: 3/4
- Voltage: 12/24V AC/DC
- Current Draw:
- 560mA @12V DC
- 280mA @24V DC
- Static Strength: 1,500 lbs. (UL Verified)
- Preload: 15 lbs.
- Dynamic Strength: 70 ft-lbs.
- Endurance:
- 1,000,000 Cycles (Factory Tested)
- 250,000 Cycles (UL Verified)
- Fire Rating: UL10C/CAN4-S104 3hrs. (Fail Secure Mode Only)
- Mode: Field Selectable Fail Safe or Fail Secure
- Operation: AC Buzz, DC Silent
- Duty: Continuous
- Latch Monitor: SPDT, 100mA @24V DC, Resistive
- Dimensions: 9-1/8""L x 1-7/8""W x 3/4""D (231.6mm x 48mm x 19.8mm)
Especificaciones técnicas
Camden Surface Mount RIM Strike, w/ Preload, 12/24V AC DC, Plugin Latch Mon Overview
Camden introduces the first surface mount RIM strike with preload in the security industry. CX-EPD1289L grade 1 surface mount RIM strike, with latch monitoring, also offers a ‘Universal’ strike design that delivers unparalleled application flexibility, with both UL security and fire listings.
Preload is the pressure exerted on the keeper of a strike that causes the mechanism to fail to release. Whether caused by air pressure, a misaligned door, or inexact installation, CX-EPD1289L RIM strikes are designed to operate where other strikes fail!
Camden Surface Mount RIM Strike Features
- ‘No Cut’ surface mount RIM strike for Pullman latches
- Operates with up to 15 lbs. of preload pressure
- 'Universal’ design with selectable:
- 12/24V, AC/DC operation
- Fail-Safe/Fail-Secure Operation
- 3/4"" latch projection
- Latches operate independently of each other
- Metal mounting jig included for easy installation
- Patented design
- Heavy-duty stainless steel construction
- Horizontal adjustment, spacer plate available
- A removable latch monitoring switch included
- Non-handed, left or right
- 5-year warranty
Camden Surface Mount RIM Strike Specifications
- Latch Projection: 3/4
- Voltage: 12/24V AC/DC
- Current Draw:
- 560mA @12V DC
- 280mA @24V DC
- Static Strength: 1,500 lbs. (UL Verified)
- Preload: 15 lbs.
- Dynamic Strength: 70 ft-lbs.
- Endurance:
- 1,000,000 Cycles (Factory Tested)
- 250,000 Cycles (UL Verified)
- Fire Rating: UL10C/CAN4-S104 3hrs. (Fail Secure Mode Only)
- Mode: Field Selectable Fail Safe or Fail Secure
- Operation: AC Buzz, DC Silent
- Duty: Continuous
- Latch Monitor: SPDT, 100mA @24V DC, Resistive
- Dimensions: 9-1/8""L x 1-7/8""W x 3/4""D (231.6mm x 48mm x 19.8mm)
