Acerca del producto

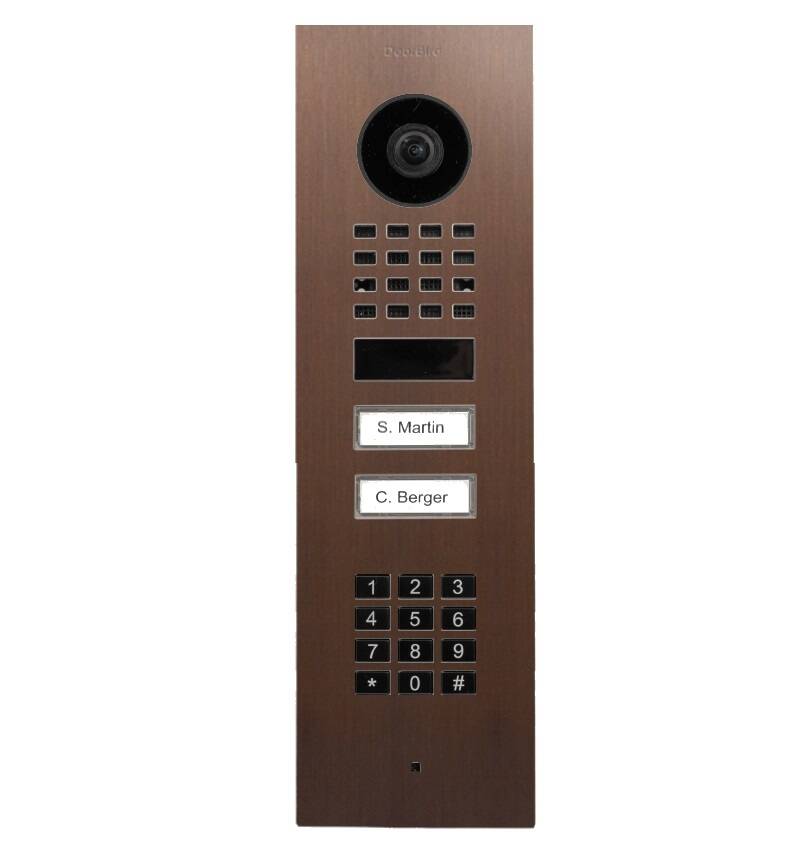

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into select existing Smart Home platforms and NVRs. Compatible with a wide variety of door strikes and operators with the built-in configurable bistable latching relay.
D1102KV-F-ARCHBRNZ Specs and Features
- Open API
- Full-colour HD video and audio calling
- Smart Transmission Mode (STM)
- Smart Home & NVR compatible (select models)
- Built-in full-duplex Microphone
- Automatic door buzzer built-in
- Free visitor history & event logging
- Individual action schedules, e.g. Geofencing
- Built-in IR-based night vision
- HD 1080p Video
- Light sensor and automatic night-vision switching
- One freely configurable bistable latching relay (1-24 VDC/AC @ 1 A max)
- Built-in single-press call button
- Motion sensor with 4D technology
- Noise reduction and echo cancellation (AEC, ANR)
- WiFi and Bluetooth Low Energy (BLE) enabled for easy network connection
- Keypad Module allows for individual administrator assigned numbers and code entry
- Network:
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WiFi: 2.4 GHz b/g/n
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
- Motion Sensor:
- Type: Active
- Detection angle: 80° (H), 50° (V)
- Range: 1 - 6 m (3.3 - 19.7 ft), depending on the environment, configurable in 1 m (3.3 ft) steps
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g., Radio Frequency Energy (RFE)
- Integrated Wireless Modules:
- WiFi: 2.4 GHz
- Bluetooth: Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
- Sensor: 24 GHz, can be disabled
- Video:
- Camera: HDTV 1080p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens, 180° (D), 150° (H), 82° (V), straightened, IR-capable
- Night vision: Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
- Audio:
- Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
- General:
- Front panel: 3 mm (0.12 in)
- Mounting housing (backbox): Polycarbonate
- Mounting type: Surface-mounted, flush-mounted version sold separately
- Call button: Illuminated
- Keypad Module:
- 12 keys, illuminated, configurable via App, e.g. PIN codes
- Individual events (e.g., switch a relay, HTTP(s) request)
- Individual schedules
- Up to 500 PIN codes are manageable
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Weight: 995 g
- Connectors:
- LAN/PoE (T+, T-, R+, R-)
- Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g., for the electric door opener
- External input for external door opener button
- 15 V DC input (+, -), max. 15 W
- Weatherproof: Yes, IP65
- Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
- Dimensions: 65.00 x 264.00 x 29.50 mm (H x W x D), 2.56 x 10.39 x 1.16 in (H x W x D)
- Minimum installation height of 57'' suggested
- Operating conditions: -25 to +55°C / -13 to 131°F
- What's Included:
- 1x Main Electrical Unit
- 1x Front panel
- 1x Flush-mounting housing (backbox)
- 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
- 1x RJ45 adapter
- 1x Screwdriver
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
- Warranty: See www.doorbird.com/warranty
Especificaciones técnicas
DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into select existing Smart Home platforms and NVRs. Compatible with a wide variety of door strikes and operators with the built-in configurable bistable latching relay.
D1102KV-F-ARCHBRNZ Specs and Features
- Open API
- Full-colour HD video and audio calling
- Smart Transmission Mode (STM)
- Smart Home & NVR compatible (select models)
- Built-in full-duplex Microphone
- Automatic door buzzer built-in
- Free visitor history & event logging
- Individual action schedules, e.g. Geofencing
- Built-in IR-based night vision
- HD 1080p Video
- Light sensor and automatic night-vision switching
- One freely configurable bistable latching relay (1-24 VDC/AC @ 1 A max)
- Built-in single-press call button
- Motion sensor with 4D technology
- Noise reduction and echo cancellation (AEC, ANR)
- WiFi and Bluetooth Low Energy (BLE) enabled for easy network connection
- Keypad Module allows for individual administrator assigned numbers and code entry
- Network:
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WiFi: 2.4 GHz b/g/n
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
- Motion Sensor:
- Type: Active
- Detection angle: 80° (H), 50° (V)
- Range: 1 - 6 m (3.3 - 19.7 ft), depending on the environment, configurable in 1 m (3.3 ft) steps
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g., Radio Frequency Energy (RFE)
- Integrated Wireless Modules:
- WiFi: 2.4 GHz
- Bluetooth: Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
- Sensor: 24 GHz, can be disabled
- Video:
- Camera: HDTV 1080p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens, 180° (D), 150° (H), 82° (V), straightened, IR-capable
- Night vision: Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
- Audio:
- Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
- General:
- Front panel: 3 mm (0.12 in)
- Mounting housing (backbox): Polycarbonate
- Mounting type: Surface-mounted, flush-mounted version sold separately
- Call button: Illuminated
- Keypad Module:
- 12 keys, illuminated, configurable via App, e.g. PIN codes
- Individual events (e.g., switch a relay, HTTP(s) request)
- Individual schedules
- Up to 500 PIN codes are manageable
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Weight: 995 g
- Connectors:
- LAN/PoE (T+, T-, R+, R-)
- Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g., for the electric door opener
- External input for external door opener button
- 15 V DC input (+, -), max. 15 W
- Weatherproof: Yes, IP65
- Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
- Dimensions: 65.00 x 264.00 x 29.50 mm (H x W x D), 2.56 x 10.39 x 1.16 in (H x W x D)
- Minimum installation height of 57'' suggested
- Operating conditions: -25 to +55°C / -13 to 131°F
- What's Included:
- 1x Main Electrical Unit
- 1x Front panel
- 1x Flush-mounting housing (backbox)
- 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
- 1x RJ45 adapter
- 1x Screwdriver
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
- Warranty: See www.doorbird.com/warranty
