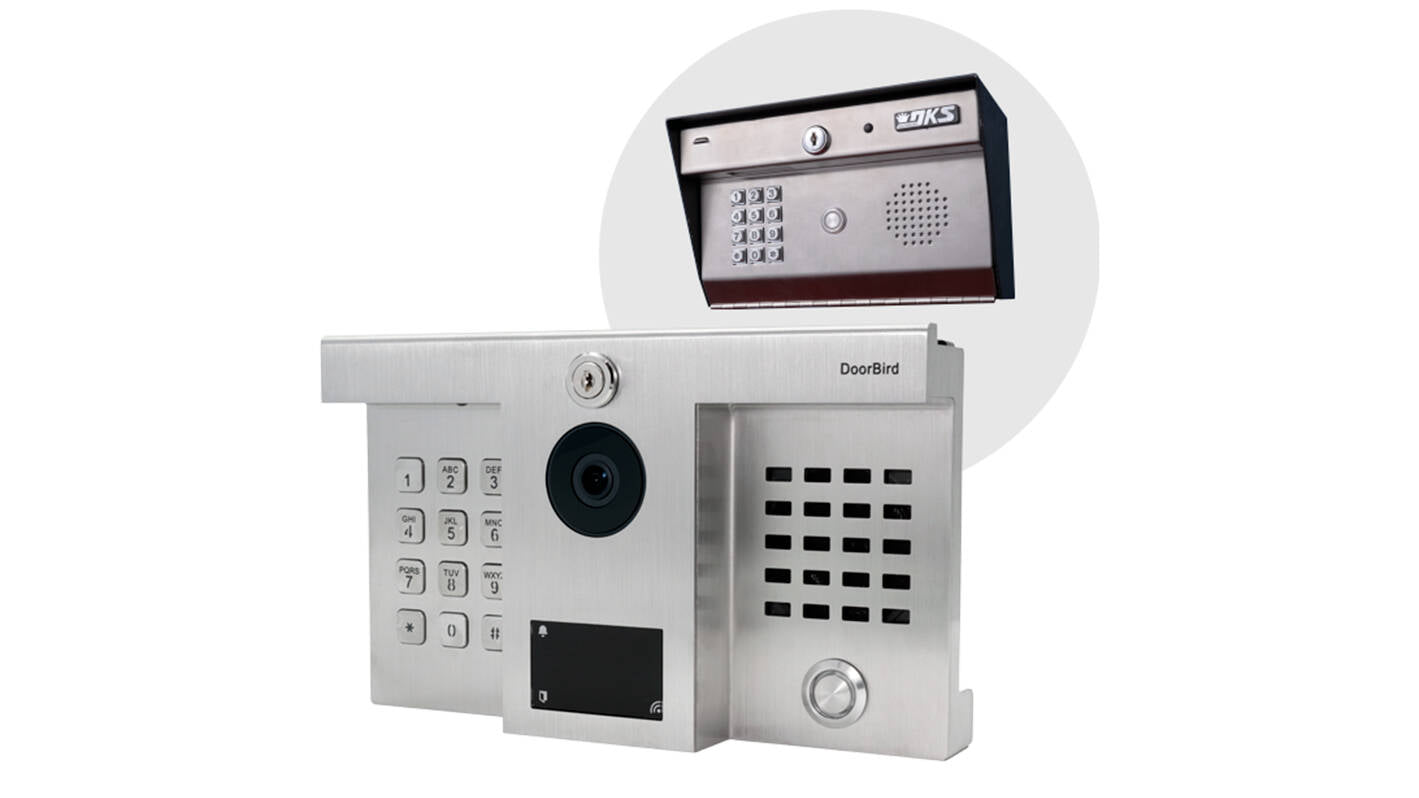

The Doorbird Video Door Station Hybrid Upgrade for DoorKing 1812 Classic and Plus systems keeps the original analog telephone line from the DoorKing system while taking advantage of modern PoE connections to upgrade older access control systems into remote, app-controlled door stations with live video, two-way audio, wireless strike control, and more.
Upgrade older DoorKing 1812 Classic (1871-010) or (1970-010), flush or surface mount, or DoorKing 1812 Plus (1871-010) or (1970-010), flush or surface mount systems.
Why Upgrade?
- Adds real-time HD 1080p video and two-way audio (optimized for mobile/WiFi devices)
- RFID and Bluetooth card access, geofencing for automatic locking/unlocking gates or doors for admins automatically
- User profiles and scheduling, free visitor history logging (video recording options available)
- Motion sensing, 24/7 infrared recording
- Two configurable bi-stable relays for door control
- Configurable keypad with more than 500 individual PIN codes for customized control (relay requests, dialing users, etc.)
- Expands compatibility to Smart Home and NVR systems via popular platforms like Control4, Lilin, Crestron, Synology, Dahua, URC, QNAP, RTI, ELAN, Synology, Bang & Olufsen and others
- Keeps original hardware in place, reducing install time and cost while preserving landline backup options
- Brushed stainless steel V2A finish
The DoorBird service is FREE with no set up or monthly fees. Cloud video recording is available for an optional monthly fee. Multiple users can be set up to receive alerts or check video/audio as needed. Users can have access to multiple doorbird stations in a single home or multiple properties using the same app.
D1812-SSV2A Specs and Features
- Compatiblity:
- DoorKing® 1812 Classic (Flush & Surface Mount)*
- DoorKing® 1812 Plus (Flush & Surface Mount)*
- *Note: Revisions “1871-010” or “1970-010”
- Front panel: 2 mm (0.078 in), brushed stainless steel V2A
- Call button: Stainless steel button with illuminated LED ring
- Power supply: 12 – 15 DC (min. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Keypad Module: 12 keys, illuminated, configurable via App, e.g. Individual PIN codes, Individual events (e.g. switch a relay, HTTP(s) requests, Individual schedules, Up to 500 PIN codes manageable
- Weight: 1.700 g
- Connectors:
- RJ45, for LAN/PoE
- 2x bistable relays, max. 30 V DC/V AC,3 A, e.g. for electric door opener
- Wiegand output (26 bit and 34 bit)
- External input, e.g. for external door opener button
- 12 - 15 V DC
- Protection class: IP65, IK08
- Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
- Dimensions: 150.5 x 248 x 73.5 mm (H x W x D), 5.93 x 9.76 x 2.89 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F
- Humidity: 10 to 85 % RH (non-condensing)
- Package Includes:
- 1x Main Electrical Unit
- 1x Front panel
- 1x Power supply unit (mains adaptor) with country-specific adaptors (100 - 240 V AC to 15 V DC)
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
- Warranty: see www.doorbird.com/warranty
- System requirements:
- Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
- Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
- Network: Ethernet Network, with DHCP
- Recommended installation height: Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.
- Camera: HDTV 1080p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens, 180° (D), 150° (H), 82° (V), straightened, IR-capable
- Night-vision: Yes, light sensor, automatic IR-cut filter, IR-LEDs (850 nm)
- Audio components: Speaker and microphone, echo and noise cancellation (AEC, ANR)
- Audio streaming: Two-way
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WIFI: n/a
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
- Motion Sensor Type: Active
- Detection angle: 80° (H), 50° (V)
- Range: 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.
- Range (1 - 6 m / 3.3 - 19.7 ft)
- Movement direction (coming, leaving, both)
- Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
- Individual schedule
- RFID Reader Type: Active Reader Passive Tag (ARPT) system, Standard ISO 14443A. MIFARE® Classic®. MIFARE® DESFire® EV1, MIFARE® DESFire® EV2, NFC
- Frequency: 13.56 MHz
- Range: 0 - 3 cm, depends on environment
- Antenna: Internal
- Compatible Transponder: RFID transponder key fobs (sold separately), up to 500 tags manageable
- Wiegand Protocols: 26, 30, 31, 34 and 44 bit
- Direction: Output (Keypad, RFID reader)
- Maximum cable length: 150 m (492 ft)
- Highlights: Galvanic isolation of the Wiegand output signals, max 5 mA per output (data line)
- Configuration: Via App, e.g. protocol and interface on/off
- Bluetooth: Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
- RFID: 13.56 MHz
- Sensor: 24 GHz, can be disabled
- Partner integrations: see www.doorbird.com/connect
- API: see www.doorbird.com/api
- Simultaneous video streams: One, for event-based and continuous recording
Especificaciones técnicas
The Doorbird Video Door Station Hybrid Upgrade for DoorKing 1812 Classic and Plus systems keeps the original analog telephone line from the DoorKing system while taking advantage of modern PoE connections to upgrade older access control systems into remote, app-controlled door stations with live video, two-way audio, wireless strike control, and more.
Upgrade older DoorKing 1812 Classic (1871-010) or (1970-010), flush or surface mount, or DoorKing 1812 Plus (1871-010) or (1970-010), flush or surface mount systems.
Why Upgrade?
- Adds real-time HD 1080p video and two-way audio (optimized for mobile/WiFi devices)
- RFID and Bluetooth card access, geofencing for automatic locking/unlocking gates or doors for admins automatically
- User profiles and scheduling, free visitor history logging (video recording options available)
- Motion sensing, 24/7 infrared recording
- Two configurable bi-stable relays for door control
- Configurable keypad with more than 500 individual PIN codes for customized control (relay requests, dialing users, etc.)
- Expands compatibility to Smart Home and NVR systems via popular platforms like Control4, Lilin, Crestron, Synology, Dahua, URC, QNAP, RTI, ELAN, Synology, Bang & Olufsen and others
- Keeps original hardware in place, reducing install time and cost while preserving landline backup options
- Brushed stainless steel V2A finish
The DoorBird service is FREE with no set up or monthly fees. Cloud video recording is available for an optional monthly fee. Multiple users can be set up to receive alerts or check video/audio as needed. Users can have access to multiple doorbird stations in a single home or multiple properties using the same app.
D1812-SSV2A Specs and Features
- Compatiblity:
- DoorKing® 1812 Classic (Flush & Surface Mount)*
- DoorKing® 1812 Plus (Flush & Surface Mount)*
- *Note: Revisions “1871-010” or “1970-010”
- Front panel: 2 mm (0.078 in), brushed stainless steel V2A
- Call button: Stainless steel button with illuminated LED ring
- Power supply: 12 – 15 DC (min. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Keypad Module: 12 keys, illuminated, configurable via App, e.g. Individual PIN codes, Individual events (e.g. switch a relay, HTTP(s) requests, Individual schedules, Up to 500 PIN codes manageable
- Weight: 1.700 g
- Connectors:
- RJ45, for LAN/PoE
- 2x bistable relays, max. 30 V DC/V AC,3 A, e.g. for electric door opener
- Wiegand output (26 bit and 34 bit)
- External input, e.g. for external door opener button
- 12 - 15 V DC
- Protection class: IP65, IK08
- Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
- Dimensions: 150.5 x 248 x 73.5 mm (H x W x D), 5.93 x 9.76 x 2.89 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F
- Humidity: 10 to 85 % RH (non-condensing)
- Package Includes:
- 1x Main Electrical Unit
- 1x Front panel
- 1x Power supply unit (mains adaptor) with country-specific adaptors (100 - 240 V AC to 15 V DC)
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
- Warranty: see www.doorbird.com/warranty
- System requirements:
- Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
- Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
- Network: Ethernet Network, with DHCP
- Recommended installation height: Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.
- Camera: HDTV 1080p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens, 180° (D), 150° (H), 82° (V), straightened, IR-capable
- Night-vision: Yes, light sensor, automatic IR-cut filter, IR-LEDs (850 nm)
- Audio components: Speaker and microphone, echo and noise cancellation (AEC, ANR)
- Audio streaming: Two-way
- Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
- WIFI: n/a
- Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
- Motion Sensor Type: Active
- Detection angle: 80° (H), 50° (V)
- Range: 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.
- Range (1 - 6 m / 3.3 - 19.7 ft)
- Movement direction (coming, leaving, both)
- Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
- Individual schedule
- RFID Reader Type: Active Reader Passive Tag (ARPT) system, Standard ISO 14443A. MIFARE® Classic®. MIFARE® DESFire® EV1, MIFARE® DESFire® EV2, NFC
- Frequency: 13.56 MHz
- Range: 0 - 3 cm, depends on environment
- Antenna: Internal
- Compatible Transponder: RFID transponder key fobs (sold separately), up to 500 tags manageable
- Wiegand Protocols: 26, 30, 31, 34 and 44 bit
- Direction: Output (Keypad, RFID reader)
- Maximum cable length: 150 m (492 ft)
- Highlights: Galvanic isolation of the Wiegand output signals, max 5 mA per output (data line)
- Configuration: Via App, e.g. protocol and interface on/off
- Bluetooth: Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
- RFID: 13.56 MHz
- Sensor: 24 GHz, can be disabled
- Partner integrations: see www.doorbird.com/connect
- API: see www.doorbird.com/api
- Simultaneous video streams: One, for event-based and continuous recording
