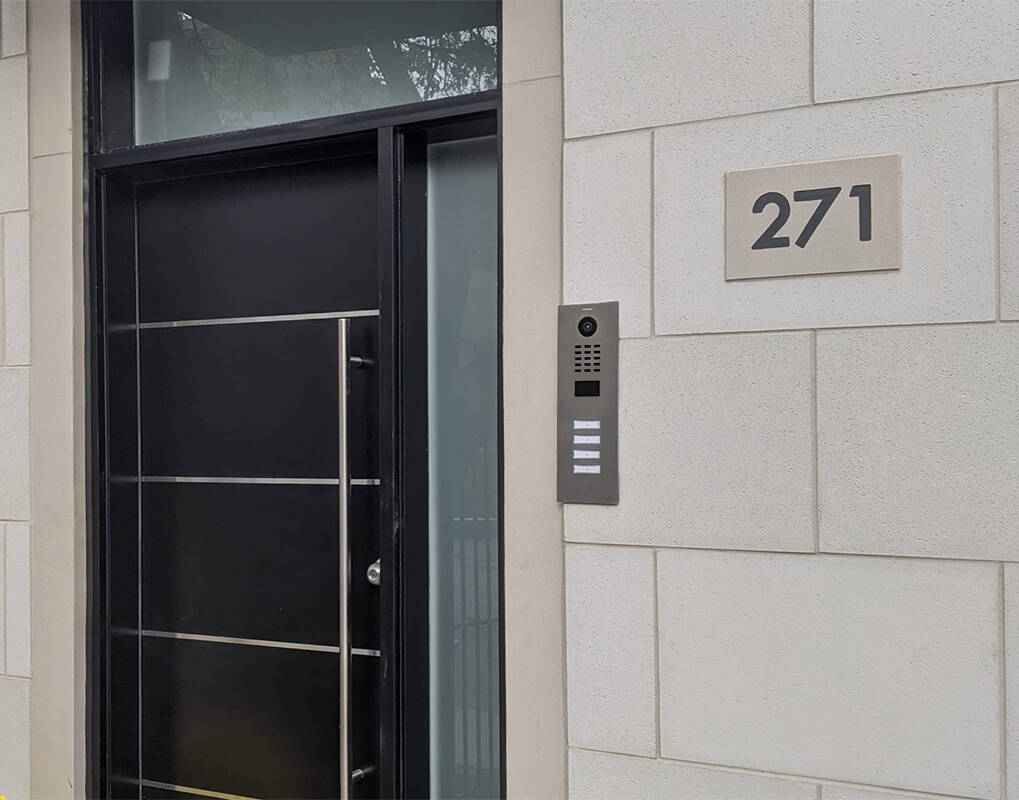

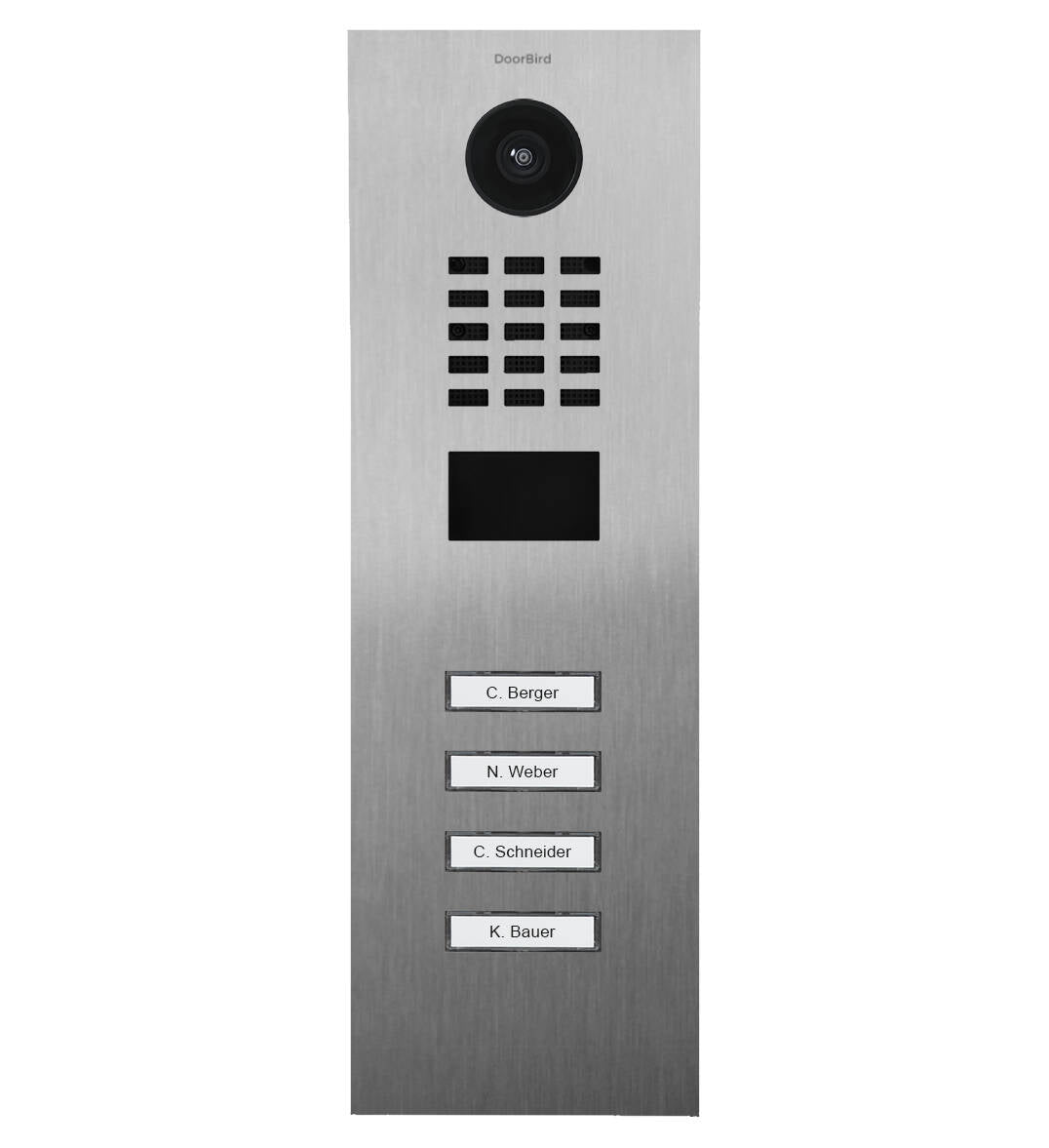

The DoorBird IP Video Door Station with 4 Call Buttons is a flush or surface mounted video call station for businesses or multi-tenant buildings with 4 units (backbox sold separately).
Optimized for mobile devices and app control, users can connect remotely to visitors via real time, ultra-wide (180°) HD 720p video with two-way audio. Built-in motion sensing and 24/7 infrared night time recording ensure clear video and additional security for connected users, day or night.
Ideal for use in medical offices or small business environments; convenient call buttons can trigger individual rooms or users, and additional access control options like RFID card access, user scheduling, geofencing and remote strike control give connected users customizable and scheduled access.
Connects via PoE or 2-wire ethernet converter (sold separately). Brushed stainless steel V2A construction.
The DoorBird service is FREE with no set up or monthly fees. Cloud video recording is available for an optional monthly fee. Multiple users can be set up to receive alerts or check video/audio as needed. Users can have access to multiple doorbird stations in a single home or multiple properties using the same app.
D2104V-SSV2A Specs and Features
- Front panel: 3 mm (0.12 in)
- Mounting type: Flush- or surface-mounted, mounting housing sold separately
- Call button: Illuminated
- Nameplate: Plastic. Engravable metal nameplate sold separately
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Weight: 1208 g
- Connectors:
- RJ45, for LAN/PoE
- Bistable latching relay #1, max. 24 V DC?/?AC, 1 Ampere, e.g. for electric door opener
- Bistable latching relay #2, max. 24 V DC?/?AC, 1 Ampere, e.g. for electric door opener
- External input for external door opener button
- 15 V DC input (+, -), max. 15 W
- Relays can be expanded / detached with DoorBird I/O Door Controller
- Weather-proof: Yes, IP65
- Approvals: IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
- Dimensions: 403 x 131 x 45,75 mm (H x W x D), 15.87 x 5.16 x 1.80 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F
- Humidity: 10 to 85 % RH (non-condensing)
- Scope of delivery:
- 1x Main Electrical Unit
- 1x Front panel
- 1x RFID key fob
- 1x Screwdriver
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
- Warranty: see www.doorbird.com/warranty
- Camera: HDTV 720p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
- Night-vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)
- Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
- Motion Sensor Type: Active
- Detection angle: 54° (H), 70° (V)
- Range: 1 - 10 m (3.3 - 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.
- Range (1 - 10 m / 3.3 - 32.9 ft)
- Movement direction (coming, leaving, both)
- Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) notification)
- Individual schedules
- RFID Type: Active Reader Passive Tag (ARPT) system
- Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
- Frequency: 125 KHz
- Range: 0 - 3 cm, depends on environment
- Antenna: Internal
- Compatible Transponder: RFID key fobs, (sold separately) up to 500 tags manageable
- Configuration: Via App, e.g.
- Tag (add, delete)
- Individual events (e.g. switch a relay, SIP call [audio/video], HTTP(s) notification)
- Individual schedules
- RFID history available for 60 minutes in the app
- RFID: 125 KHz
- Sensor: 24 GHz, can be disabled
- API: see www.doorbird.com/api
- Simultaneous video streams: One, for event-based and continuous recording
Especificaciones técnicas
The DoorBird IP Video Door Station with 4 Call Buttons is a flush or surface mounted video call station for businesses or multi-tenant buildings with 4 units (backbox sold separately).
Optimized for mobile devices and app control, users can connect remotely to visitors via real time, ultra-wide (180°) HD 720p video with two-way audio. Built-in motion sensing and 24/7 infrared night time recording ensure clear video and additional security for connected users, day or night.
Ideal for use in medical offices or small business environments; convenient call buttons can trigger individual rooms or users, and additional access control options like RFID card access, user scheduling, geofencing and remote strike control give connected users customizable and scheduled access.
Connects via PoE or 2-wire ethernet converter (sold separately). Brushed stainless steel V2A construction.
The DoorBird service is FREE with no set up or monthly fees. Cloud video recording is available for an optional monthly fee. Multiple users can be set up to receive alerts or check video/audio as needed. Users can have access to multiple doorbird stations in a single home or multiple properties using the same app.
D2104V-SSV2A Specs and Features
- Front panel: 3 mm (0.12 in)
- Mounting type: Flush- or surface-mounted, mounting housing sold separately
- Call button: Illuminated
- Nameplate: Plastic. Engravable metal nameplate sold separately
- Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Weight: 1208 g
- Connectors:
- RJ45, for LAN/PoE
- Bistable latching relay #1, max. 24 V DC?/?AC, 1 Ampere, e.g. for electric door opener
- Bistable latching relay #2, max. 24 V DC?/?AC, 1 Ampere, e.g. for electric door opener
- External input for external door opener button
- 15 V DC input (+, -), max. 15 W
- Relays can be expanded / detached with DoorBird I/O Door Controller
- Weather-proof: Yes, IP65
- Approvals: IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
- Dimensions: 403 x 131 x 45,75 mm (H x W x D), 15.87 x 5.16 x 1.80 in (H x W x D)
- Operating conditions: -25 to +55°C / -13 to 131°F
- Humidity: 10 to 85 % RH (non-condensing)
- Scope of delivery:
- 1x Main Electrical Unit
- 1x Front panel
- 1x RFID key fob
- 1x Screwdriver
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
- Warranty: see www.doorbird.com/warranty
- Camera: HDTV 720p, dynamic (VGA – HDTV)
- Lens: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
- Night-vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)
- Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
- Audio streaming: Two-way, full duplex
- Motion Sensor Type: Active
- Detection angle: 54° (H), 70° (V)
- Range: 1 - 10 m (3.3 - 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
- Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
- Configuration: Via App, e.g.
- Range (1 - 10 m / 3.3 - 32.9 ft)
- Movement direction (coming, leaving, both)
- Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) notification)
- Individual schedules
- RFID Type: Active Reader Passive Tag (ARPT) system
- Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
- Frequency: 125 KHz
- Range: 0 - 3 cm, depends on environment
- Antenna: Internal
- Compatible Transponder: RFID key fobs, (sold separately) up to 500 tags manageable
- Configuration: Via App, e.g.
- Tag (add, delete)
- Individual events (e.g. switch a relay, SIP call [audio/video], HTTP(s) notification)
- Individual schedules
- RFID history available for 60 minutes in the app
- RFID: 125 KHz
- Sensor: 24 GHz, can be disabled
- API: see www.doorbird.com/api
- Simultaneous video streams: One, for event-based and continuous recording
