Data Capturing Devices

Expected delivery 3 to 7 business days (exceptions applied)

Elo

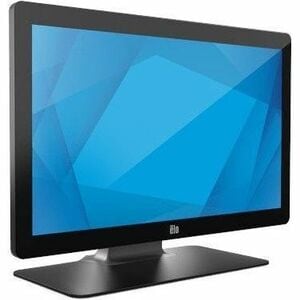

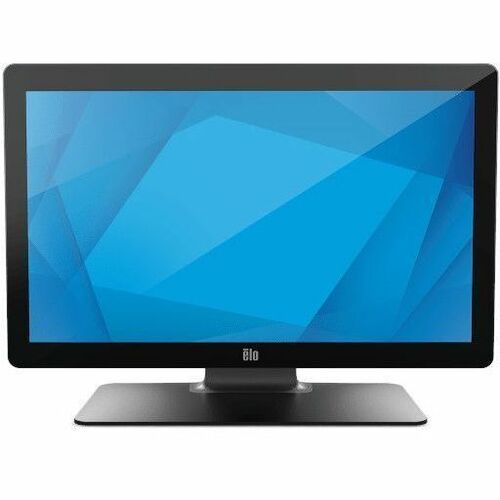

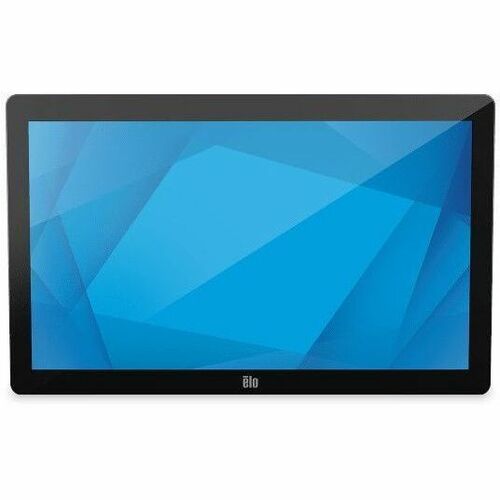

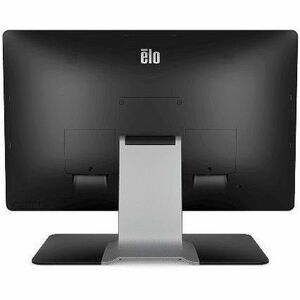

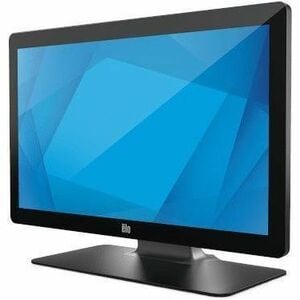

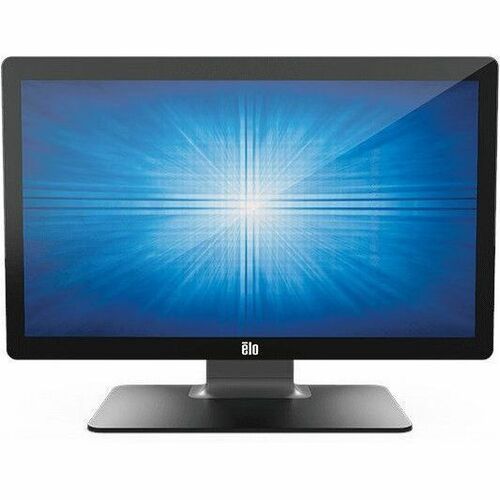

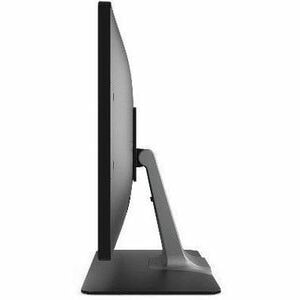

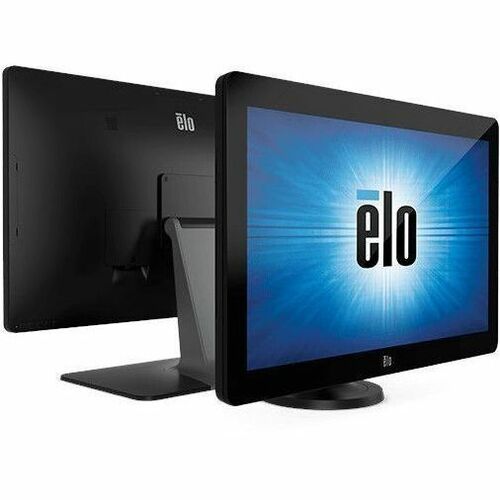

Monitor táctil LED Elo 2202L de 22" - 16:9 - 14 ms - 21,5" visibles -

Monitor táctil LED Elo 2202L de 22" - 16:9 - 14 ms - 21,5" visibles -

Precio habitual $0.00 CAD
Precio habitual $0.00 CAD Precio de oferta $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Monitor táctil LED Elo 2202L de 22" - 16:9 - 14 ms - 21,5" visibles - TouchPro capacitivo proyectado - Pantalla multitáctil de 10 puntos - 1920 x 1080 - Full HD - Transistor de película fina (TFT) - 16,7 millones de colores - 250 cd/m² - Retroiluminación LED - Altavoces - HDMI - USB - VGA - Negro - 3 años de garantía - Hub USB

VPN:E159758 SKU:DCD172015 UPC:

  • La retroiluminación LED mejora el rendimiento de la pantalla para ofrecer una gama de colores y una relación de contraste excepcionales.
  • Proporciona imágenes cautivadoras con niveles de brillo de aproximadamente 250 cd/m²
  • HDMI (Interfaz multimedia de alta definición) ofrece una fantástica calidad de sonido y video junto con la comodidad de un solo cable.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Monitor táctil LED Elo 2202L de 22" - 16:9 - 14 ms - 21,5" visibles -

Resumen de información del producto

Monitor táctil LED Elo 2202L de 22" - 16:9 - 14 ms - 21,5" visibles -

Acerca del producto

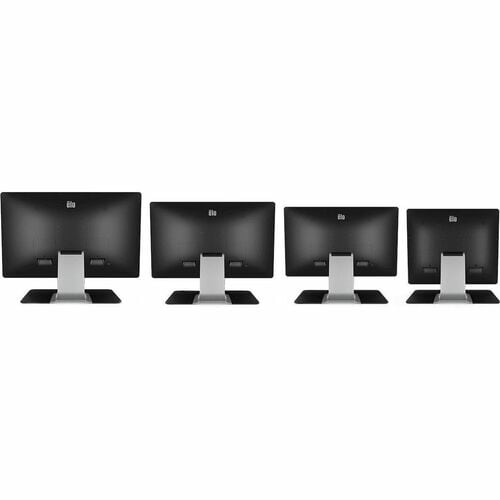

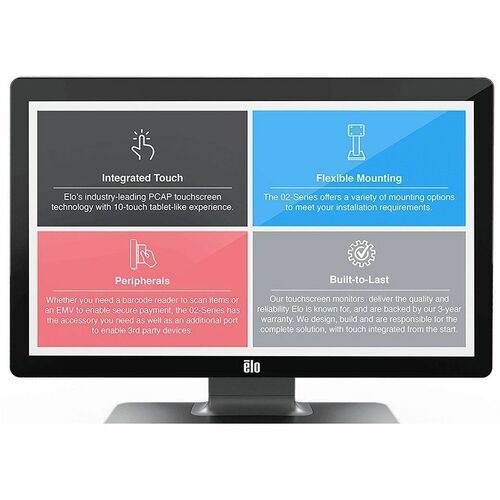

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches

The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Fingerprint Scanner

The Biometric Fingerprint Scanner can be attached to provide secure and quick login.

MSR

Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Barcode Scanner

Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

NFC

The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.

One for You. One for Your Customers.

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

The Elo Advantage | Customization

Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.

Global Reach

Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.

Long Life Cycle

We do everything in our power to minimize design changes and we've kept some monitors available to order for over seven years

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • Furnishes captivating visuals with about 250 cd/m² brightness levels
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
  • Furnishes staggering touch utilization with astonishing screen execution

Especificaciones técnicas

Built-in Devices
Built-in DevicesUSB Hub
Audio
SpeakersYes
Number of Speakers2
Power Description
Frequency50 Hz
60 Hz
Operating Power Consumption16.78 W
Touchscreen Information
Touchscreen TypeTouchPro Projected Capacitive
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10
Interfaces/Ports
USBYes
HDMIYes
VGAYes
Number of USB Ports4
Video
Brightness250 cd/m²
Color Supported16.7 Million Colors
Maximum Resolution1920 x 1080
Native Contrast Ratio1,000:1
Miscellaneous
Package Contents
  • 2202L 22" Touchscreen Monitor
  • Stand
  • Quick Install Guide
  • 3 x Tie Wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick
  • Power Cable
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
General Information
Product TypeLED Touchscreen Monitor
Manufacturer Part NumberE159758
Manufacturer Website Addresshttp://www.elotouch.com
ManufacturerElo Touch Solutions, Inc
Product Model2202L
Product Name2202L 22" Touchscreen Monitor
Product Series02
Brand NameElo
Physical Characteristics
Weight (Approximate)10.47 lb (4749.11 g)
Height12.87" (326.90 mm)
Width20.74" (526.80 mm)
Depth1.68" (42.67 mm)
Weight with Stand (Approximate)14.88 lb (6749.45 g)
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Height with Stand15.11" (383.79 mm)
Width with Stand20.74" (526.80 mm)
Depth with Stand7.61" (193.29 mm)
Product ColorBlack
Color FamilyBlack
Technical Information
Aspect Ratio16:9
Response Time14 ms
FeaturesWide Viewing Angle
On-screen Display (OSD)
Bezel-less Design
OSD/Power Lock
Anti-glare
Mount TypeWall Mountable
Shelf Mount
Pole Mount
Viewable Screen Size21.5"
Screen ModeFull HD
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Backlight TechnologyLED
Panel TechnologyThin Film Transistor (TFT)
Horizontal Frequency30 kHz to 82 kHz
Vertical Frequency50 Hz to 75 Hz
Screen Size Class22"
Ingress Protection (IP) RatingIPX1
Impact Protection (IK) RatingIK06
Response Time Details14ms Typical
