Acerca del producto

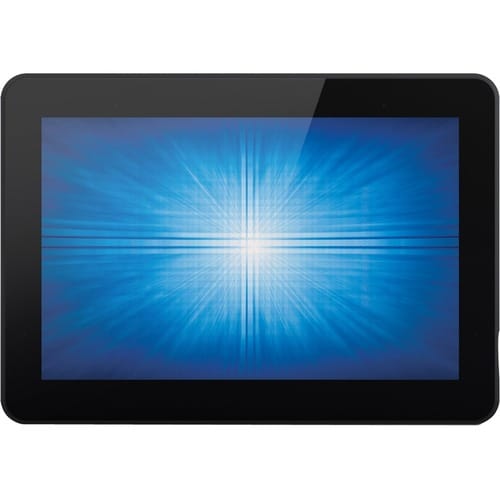

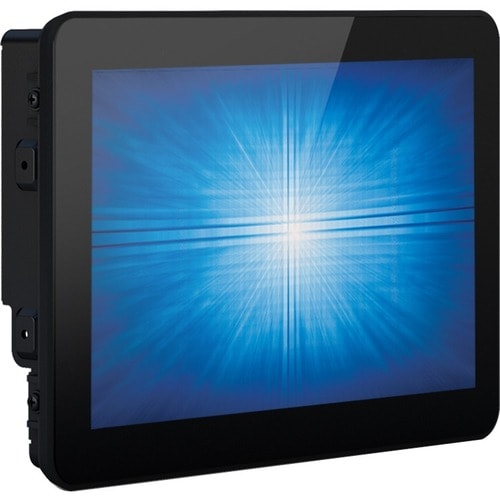

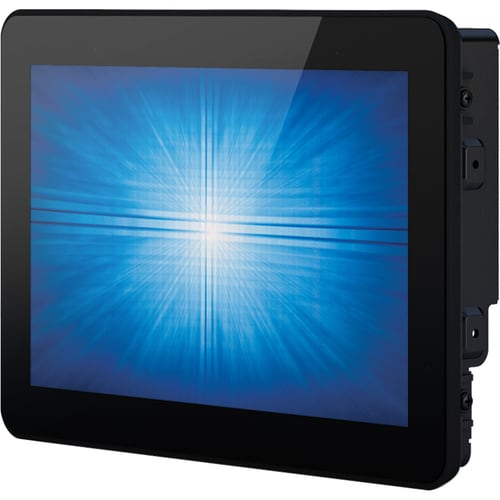

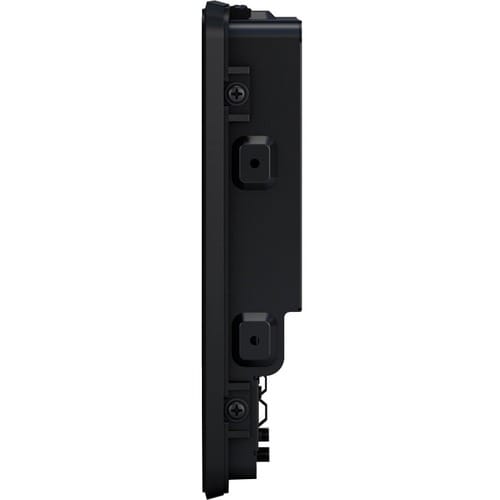

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities

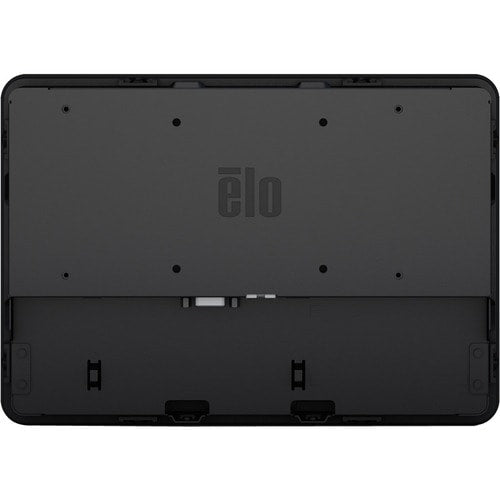

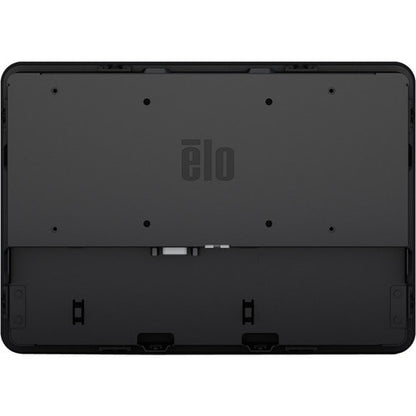

- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- The 350 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
- The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
Especificaciones técnicas
| Power Description | |
| Operating Power Consumption | 25 W |
| Standby Power Consumption | 700 mW |
| Off-Mode Power Consumption | 500 mW |
| Energy Consumption per Year | 10 kWh |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Contrast Ratio | 800:1 |
| Brightness | 350 cd/m² |
| Color Supported | 262,000 Colors |
| Maximum Resolution | 1280 x 800 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| HDMI Version | 1.3 |
| VGA | Yes |
| DisplayPort | Yes |
| USB Standard | USB 2.0 |
| DisplayPort Version | 1.1a |
| Physical Characteristics | |
| Weight (Approximate) | 2.65 lb (1202.02 g) |
| Height | 7.03" (178.56 mm) |
| Width | 10.07" (255.78 mm) |
| Depth | 1.45" (36.83 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | E321195 |
| Manufacturer Website Address | http://www.elotouch.com |
| Packaged Quantity | 1 |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1093L |
| Product Name | 1093L 10.1" Open Frame Touchscreen (RevB) |
| Brand Name | Elo |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| China Restriction of Hazardous Substances (China RoHS) | |
| Technical Information | |
| Aspect Ratio | 16:10 |
| Response Time | 25 ms |
| Features | On-screen Display (OSD) |
| Mount Type | Flush Mount |
| Viewable Screen Size | 10.1" |
| Screen Mode | WXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 60 kHz |
| Curved Screen | No |
| Maximum Refresh Rate | 75 Hz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 10" |
