Data Capturing Devices

Expected delivery 3 to 7 business days (exceptions applied)

Elo

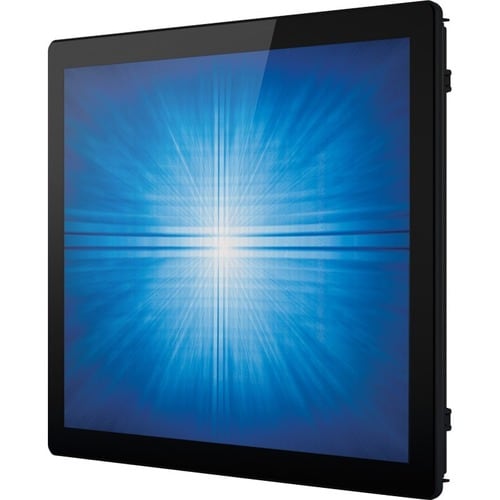

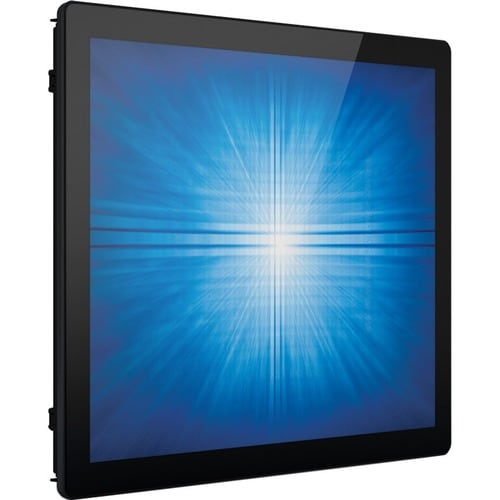

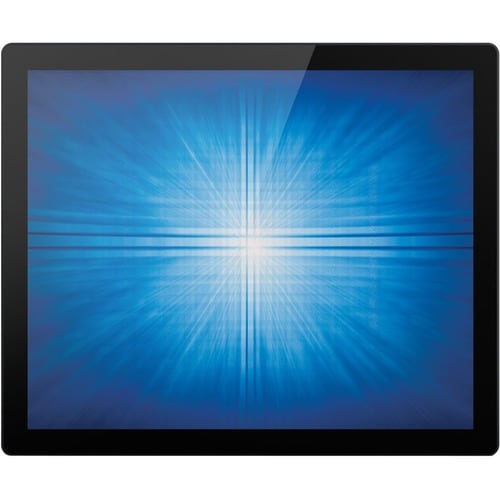

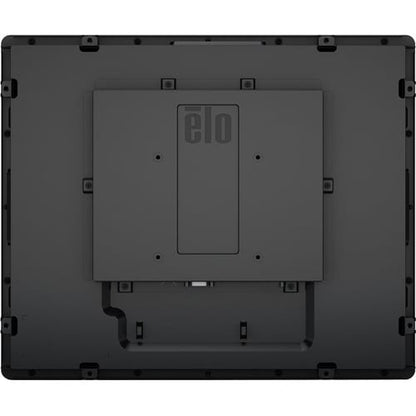

Monitor LCD táctil de marco abierto Elo 1991L de 19" - 5:4 - 14 ms - Vista de 19"

Monitor LCD táctil de marco abierto Elo 1991L de 19" - 5:4 - 14 ms - Vista de 19"

Precio habitual $0.00 CAD
Precio habitual $0.00 CAD Precio de oferta $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Monitor táctil LCD de marco abierto Elo 1991L de 19" - 5:4 - 14 ms - 19" visibles - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - 16,7 millones de colores - 1000:1 - 250 cd/m² - Retroiluminación LED - HDMI - USB - VGA - DisplayPort - Negro - 3 años de garantía

VPN:E328700 SKU:DCD236734 UPC:

  • Las pantallas táctiles IntelliTouch Surface Wave constan de una capa de vidrio con transductores piezoeléctricos de transmisión y aceptación para los ejes X e Y.
  • La tecnología de retroiluminación LED proporciona un bajo consumo de energía líder en la industria y materiales menos peligrosos.
  • La relación de contraste de 1000:1 produce una nitidez mejorada y precisión de sombreado en cada imagen.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Monitor LCD táctil de marco abierto Elo 1991L de 19" - 5:4 - 14 ms - Vista de 19"

Resumen de información del producto

Monitor LCD táctil de marco abierto Elo 1991L de 19" - 5:4 - 14 ms - Vista de 19"

Acerca del producto

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

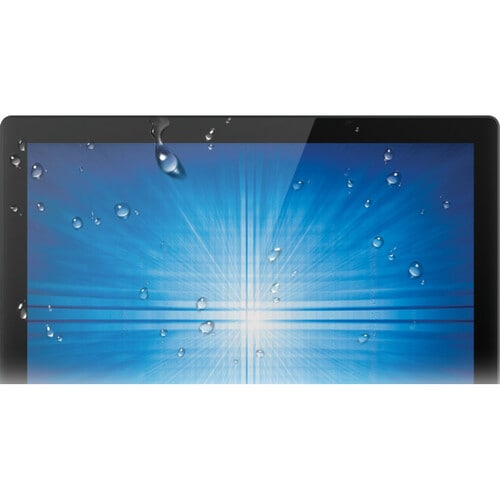

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

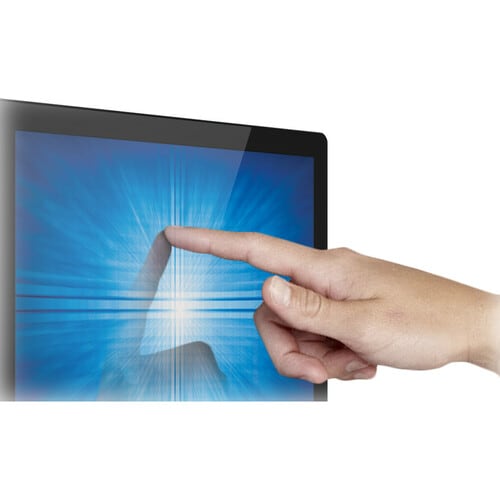

The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
  • The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 cd/m² brightness
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications

Especificaciones técnicas

Power Description
Operating Power Consumption17 W
Touchscreen Information
Touchscreen TypeIntelliTouch Surface Wave
Interfaces/Ports
USBYes
HDMIYes
VGAYes
DisplayPortYes
Video
Contrast Ratio1,000:1
Brightness250 cd/m²
Color Supported16.7 Million Colors
Maximum Resolution1280 x 1024
Miscellaneous
Package Contents
  • 1991L 19" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards
  • TÜV
  • Environmentally FriendlyYes
    Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
    Restriction of Hazardous Substances (RoHS)
    China Restriction of Hazardous Substances (China RoHS)
    General Information
    Product TypeOpen-frame LCD Touchscreen Monitor
    Manufacturer Part NumberE328700
    Manufacturer Website Addresshttp://www.elotouch.com
    ManufacturerElo Touch Solutions, Inc
    Product Model1991L
    Product Name1991L 19" Open Frame Touchscreen (Rev B)
    Brand NameElo
    Physical Characteristics
    Weight (Approximate)10.14 lb (4599.43 g)
    Height13.50" (342.90 mm)
    Width16.33" (414.78 mm)

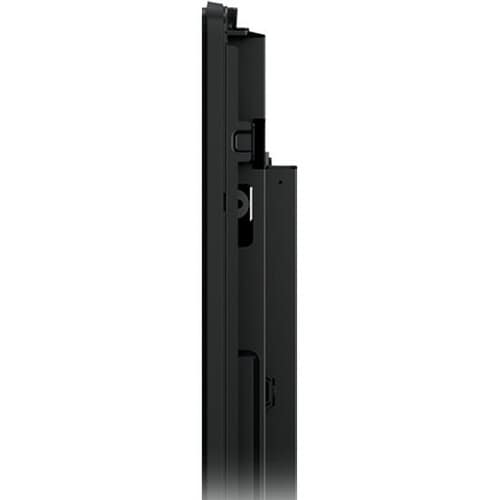

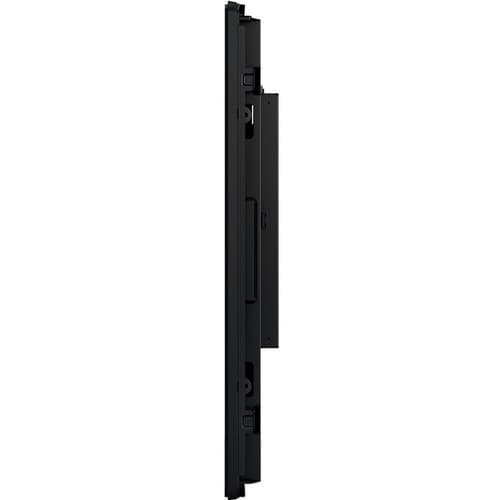

    Depth1.97" (50.04 mm)

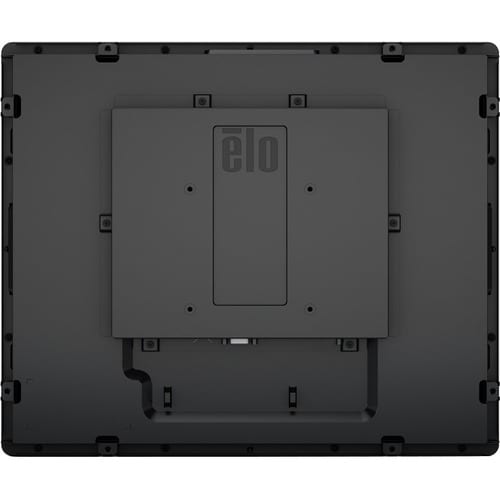

    VESA Mount CompatibleYes
    Product ColorBlack
    Color FamilyBlack
    Technical Information
    Aspect Ratio5:4
    Response Time14 ms
    Mount TypeFront Mount
    Rack-mountable
    Viewable Screen Size19"
    Screen ModeSXGA
    Backlight TechnologyLED
    Screen Size Class19"
