Introduction

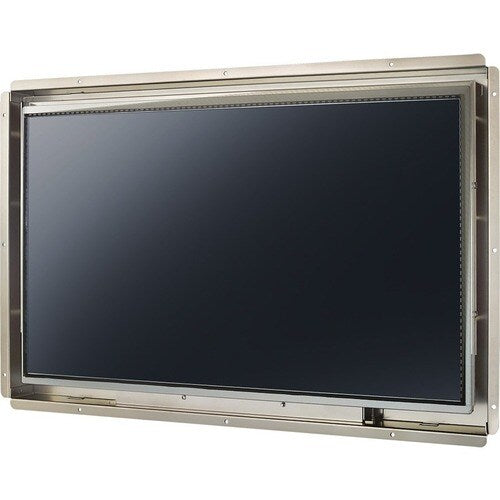

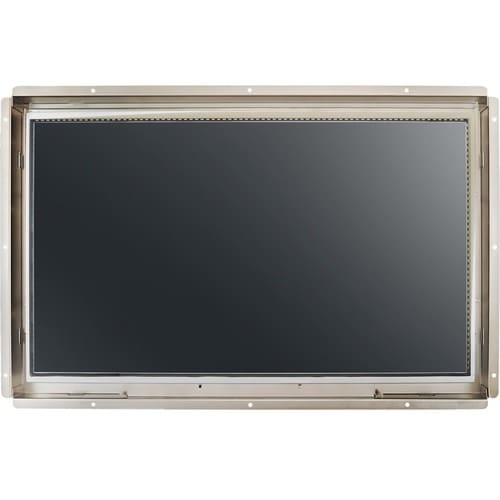

The Advantech IDS-3118W Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
- 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Enjoy crisp content and energetic hues with the 300 cd/m² brightness

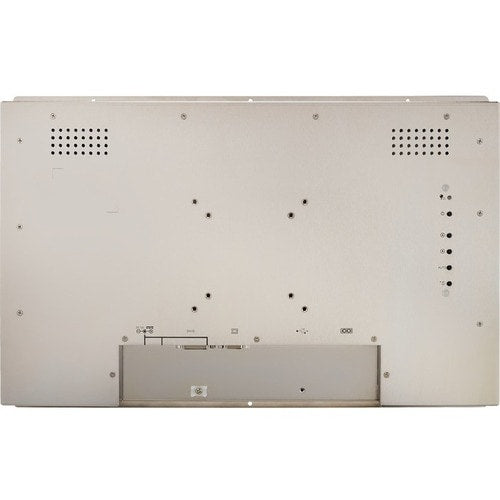

- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

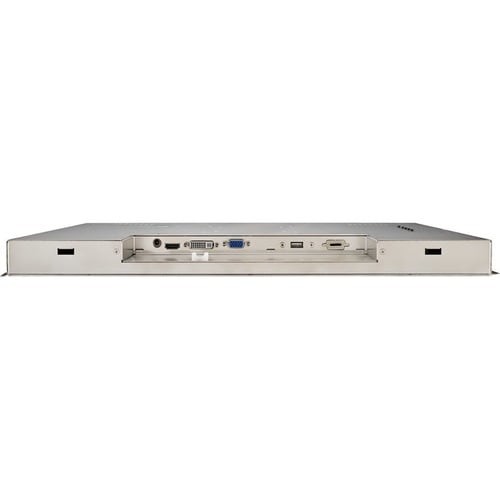

- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
Especificaciones técnicas
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 300 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1366 x 768 |
| Native Contrast Ratio | 1,000:1 |
| Physical Characteristics | |
| Weight (Approximate) | 10.36 lb (4700 g) |
| Height | 12.01" (305 mm) |
| Width | 18.82" (478 mm) |
| Depth | 1.40" (35.50 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Technical Information | |
| Response Time | 5 ms |
| Mount Type | Rear Mount |
| Viewable Screen Size | 18.5" |
| Screen Mode | WXGA |
| Backlight Technology | LED |
| Screen Size Class | 19" |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3118WR-30HDA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3118WN-30HDA1E |
| Product Name | 18.5" HD Open Frame Monitor |
| Product Series | IDS-3118W |
| Brand Name | Advantech |
