Acerca del producto

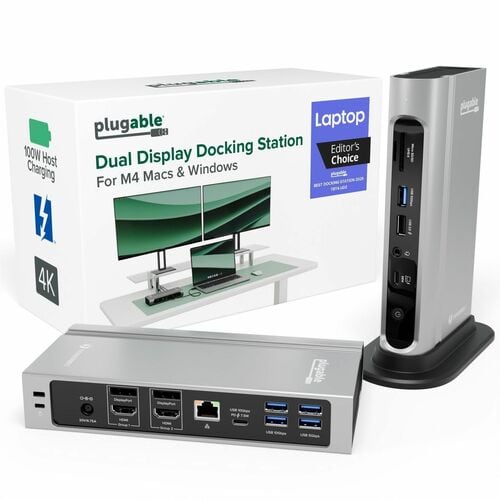

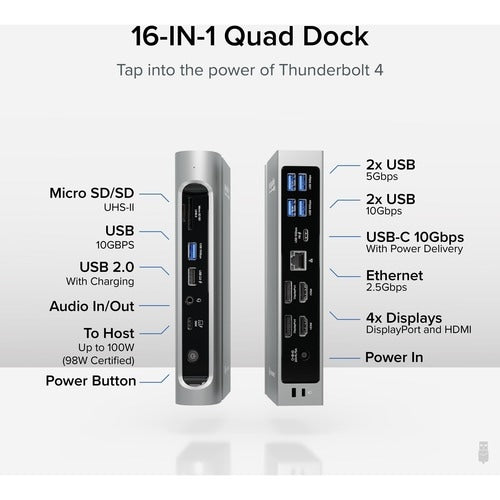

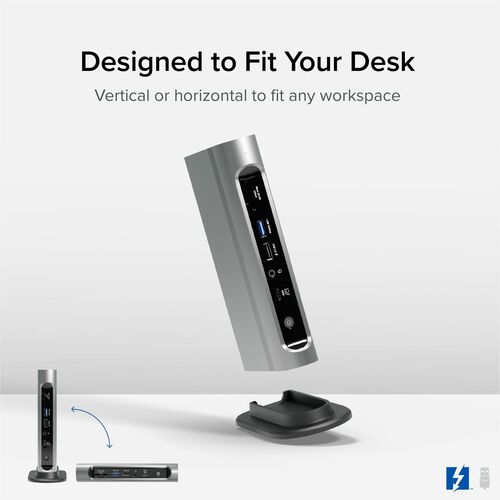

The Thunderbolt Certified 16-in-1 Quad docking station from Plugable delivers peak performance. The innovation starts with our display connections. Connect your 4K screens through 2x HDMI ports and 2x DisplayPort ports - a rare level of display flexibility in a Thunderbolt dock. But the real expansion picks up at the ports. Offering sixteen total ports to park your peripherals, including 7x USB ports, SD and microSD card readers, Audio, and 2.5Gbps Ethernet. It even adapts to your desk with an included stand for vertical or horizontal orientation options.
Quad Display
With this Thunderbolt 4 docking station Windows computers can use the 2x HDMI ports, and 2x DisplayPort ports to connect as many as 4x screens at up to 4K 60Hz. Can also be used a single, dual, or triple display docking station.

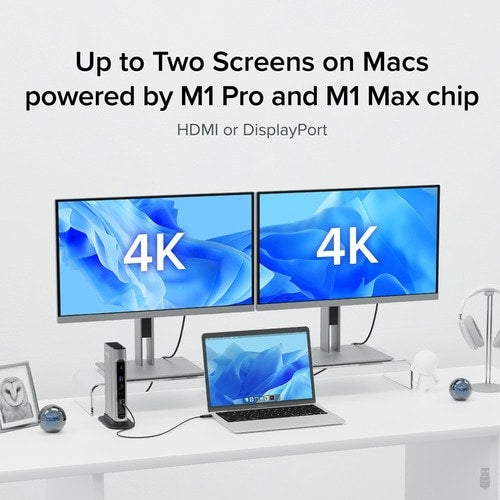

On Mac (Intel, M1 / M2 / M3 Pro/Max, M4/ Pro/Max CPU), extend your desktop to 2x screens using any combination of HDMI and/or DisplayPort. Macs with an M1 / M2 / M3 CPU only support one external display.

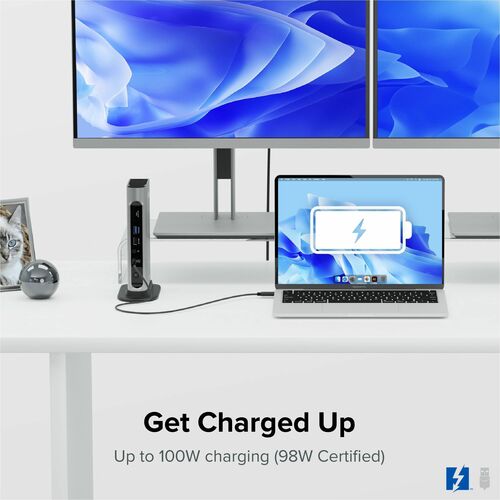

100W Power Delivery
The laptop Thunderbolt docking station offers USB Power Delivery up to 100W (98W certified) - no more climbing under the desk to get plugged in.
Not all laptop docking stations handle power the same. With the TBT4-UDZ, if your laptop needs less power, the docking station adjusts and only sends the optimal wattage.
And with 6x available USB ports, and one USB-C port, your devices will always have a place to connect.
Compatibility
The TBT4-UDZ is compatible with *Windows 10 and later and **macOS 11+.
Actual number of screens that can be extended depends on capabilities of the host computer. Be sure to see the Display Compatibility Chart below.
*On some Windows laptops, enabling four displays may require a Windows settings change to disable the internal screen.
**On Macs, additional monitors beyond specs below may not function, and/or will ""mirror"" rather than extend.
- Award Winning Plugable Thunderbolt 4 Dock: Premium 16-in-1 design enables dual 4K 60Hz screens on M4 Macs, Windows and USB4. Laptop Mag 2025 Dock of the Year with 7 USB ports, 2.5Gbps Ethernet, SD/microSD slots, audio, and 100W charging.

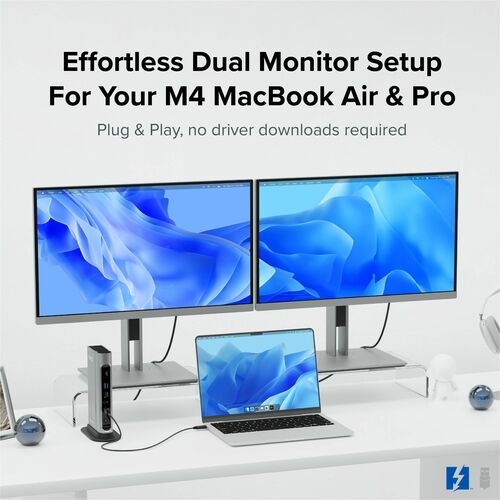

- Seamless Dual Monitor Setup for M4 Macs: This dual monitor for laptop docking station enables two 4K 60Hz displays via HDMI or DisplayPort-no drivers needed. Just plug and play. Also supports Windows Thunderbolt 4/USB4 laptops.
- 100W Power Delivery: Ensure all-day laptop charging with 100W Power Delivery. Third party lab tested to UL standards for safe, worry-free charging. Automatically adjusts for lower power systems and provides USB-C and USB ports for peripheral charging.

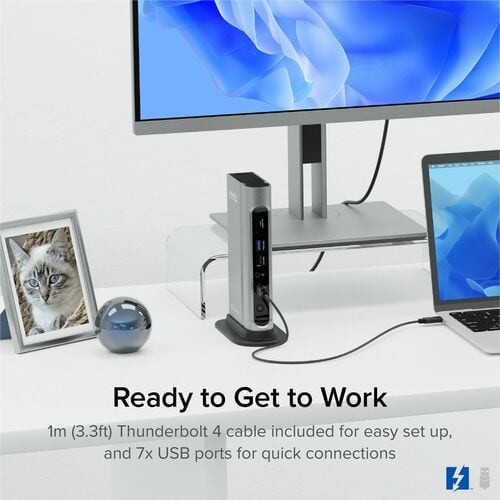

- Universal Compatibility: Works with Thunderbolt 5, Thunderbolt 4, USB4, and USB-C laptops. Compatible with macOS 11+ and Windows 10 or later. This dual monitor docking station connects effortlessly with the included Thunderbolt 4 cable (40Gbps, 3.3ft/1m).
- Boost Productivity: Turn your laptop into a powerful dual monitor workstation with this dual monitor thunderbolt dock. Perfect for multitasking, content creation, and professional workflows - perfect for Mac users needing a clean, simple dual-monitor solution.
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 98 W |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Apple MacBook |
| Brand Compatibility | Apple |
| Software | |
| Operating System Supported | macOS Big Sur |
| Windows 10 | |
| Windows 11 | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | TBT4-UDZ |
| Manufacturer Website Address | http://www.plugable.com |
| Packaged Quantity | 1 |
| Manufacturer | Plugable Technologies |
| Product Model | TBT4-UDZ |
| Product Name | Thunderbolt 4 & USB4 Quad Display Docking Station With 98W Charging |
| Brand Name | Plugable |
| Technical Information | |
| Device Supported | Desktop PC |
| Monitor | |
| Notebook | |
| Connectivity Technology | Wired |
| Memory Card Supported | SDXC |
| SD | |
| MultiMediaCard (MMC) | |
| microSD | |
| SDHC | |
| Memory Card Reader | Yes |
| Number of Displays Supported | 4 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Thunderbolt 4 | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C, Rear, USB 3.2 Gen 2 (10Gbps) |
| Number of USB Type-A Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| USB Type-A | Yes |
