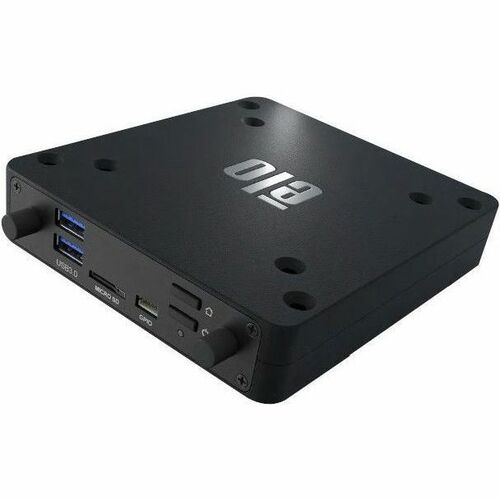

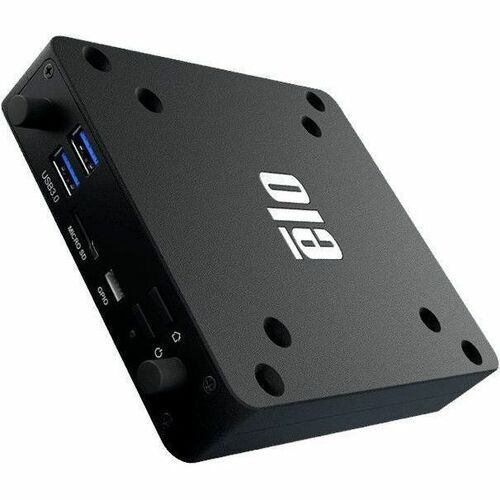

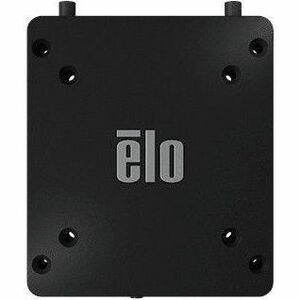

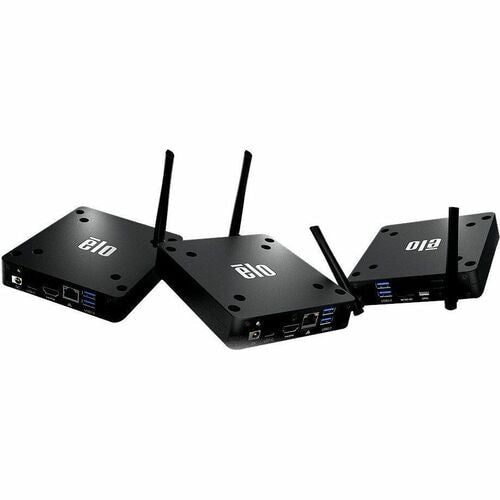

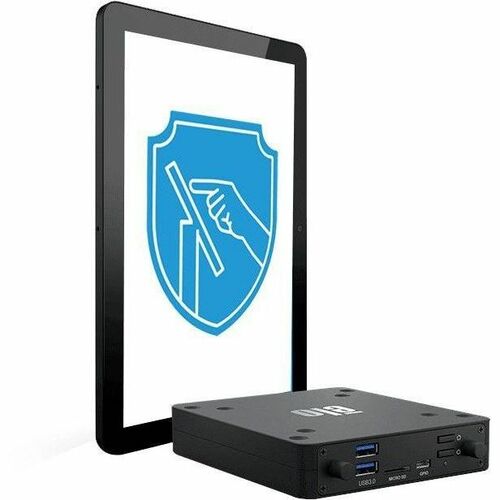

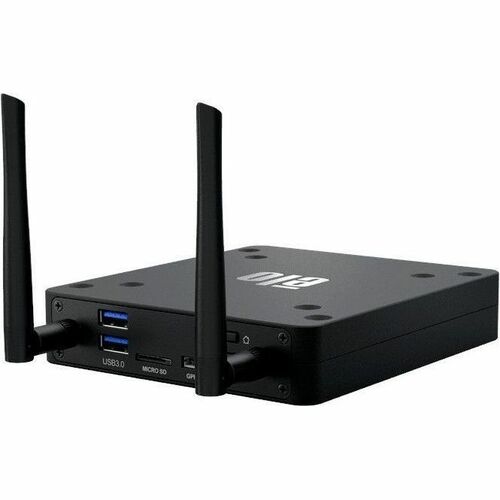

The Elo Backpack is a powerful, commercial-grade Linux PC complete with a low-power, high-performance Rockchip processor. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight and can secure to any counter or in a kiosk easily with the built-in 75 mm or 100 mm VESA mount.

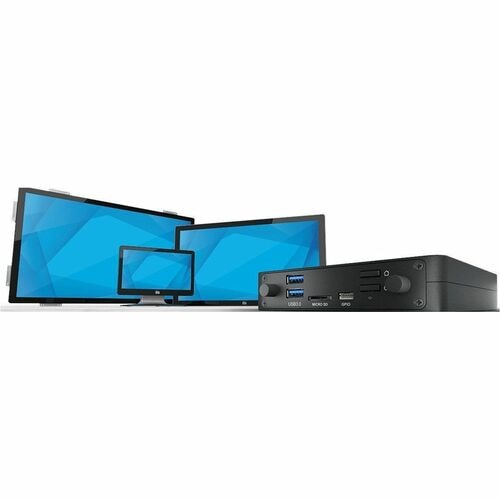

Designed to simplify scaling Elo's enterprise Linux platform across sizes and form factors, simply pair the Elo Backpack with any Elo touchscreen from 7-65 inches to create a consistent deployment that is cost effective and optimized for commercial use.
With decades of development and customizations made to support global enterprise customers, Elo's Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.

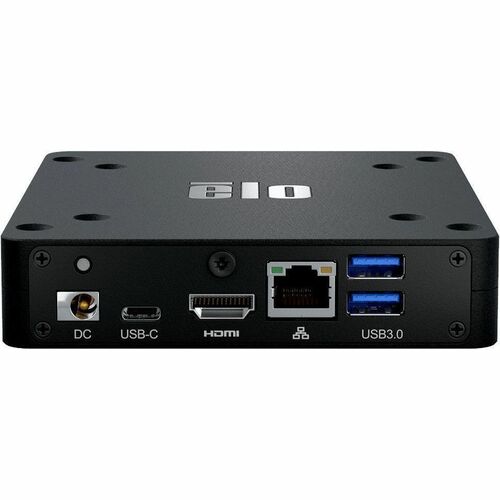

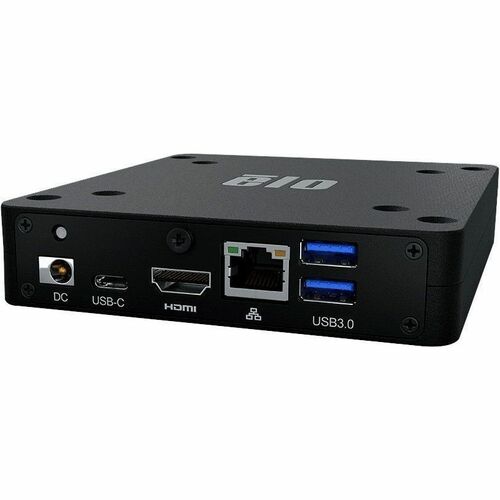

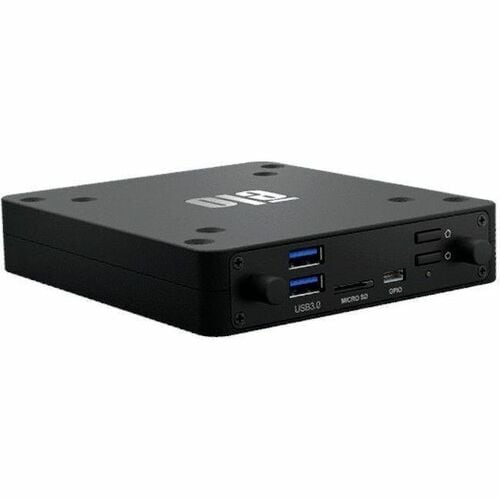

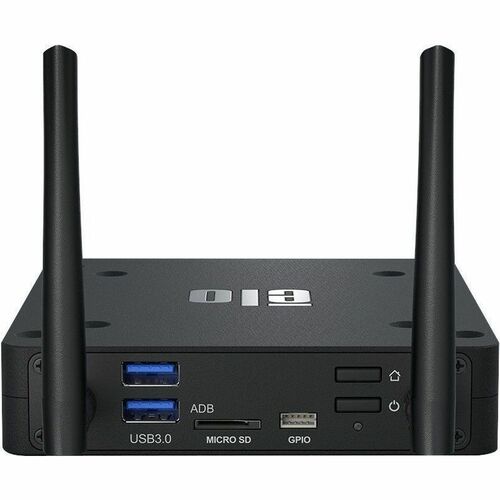

- Connectivity includes HDMI, USB 3.0, USB-C, Ethernet, Bluetooth, Wi-Fi, micro-SD and GPIO
- Elo's Linux-based platform offers device drivers, uniform SDKs, and a constantly growing set of tools
- Compatible with Elo touchscreens from 7 to 65-inches
Especificaciones técnicas
| Software | |
| Operating System | Linux Debian 10 |
| Video | |
| Scan Format | 2160p |
| Display & Graphics | |
| Display Resolution | 3840 x 2160 |
| Graphics Modes | 4K UHD |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | LPDDR4 |
| Processor & Chipset | |
| Processor Model | RK3399 |
| Processor Core | Single-core (1 Core) |
| Miscellaneous | |
| Application/Usage | Commercial |
| Kiosk | |
| Package Contents |
|
| Network & Communication | |
| Bluetooth | Yes |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Off-Mode Power Consumption | 280 mW |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB 3.0 Ports | 4 |
| USB Type-C | Yes |
| General Information | |
| Product Type | Digital Signage Appliance |
| Manufacturer Part Number | E143585 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | Backpack Digital Signage Appliance |
| Product Line | Backpack |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 13.05 oz (370 g) |
| Height | 0.98" (25 mm) |
| Width | 4.49" (114 mm) |
| Depth | 5.47" (139 mm) |
| VESA Mount Standard | 100 x 100 |
| Product Color | Black |
| Color Family | Black |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 95% |
