Acerca del producto
Modular design.Endless versatility.

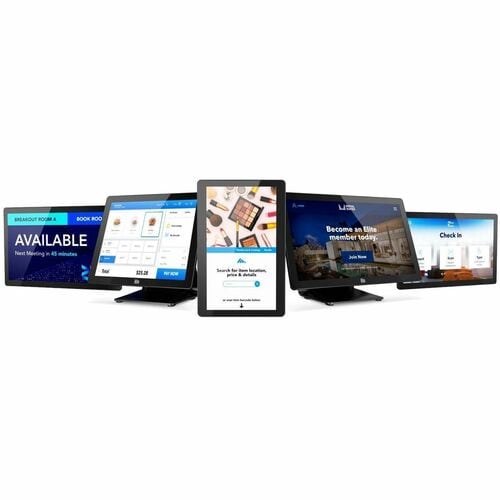

Available in sizes ranging from 15 to 24 inches, including with
and without stand options, you can easily configure the I-Series
to fit the needs of your business - from signage and point-of-sale
to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the
I-Series with the built-in
VESA mount.
Expand with Edge Connect
Seamlessly attach a variety
of peripherals to the edge of
the touchscreen.
Reliable, securityand performance.
Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro™ and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.
Supportfor Linux.
For added flexibility, the I-Series 3 offers no
OS models, all pretested with Linux SuSE,
Ubuntu and Red Hat operating systems.
Bridge the gap betweenWindows and Android.
Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.
- The 16 GB DDR5 SDRAM memory allows you to multitask and run intensive applications lag-free
- Everything will look astonishing on the all-in-one's 21.5" display
- Touchscreen interface empowers quick access
- The additional cache space and hyper-threading architecture of Intel Core i7 4.40 ghz processor delivers high performance for demanding applications with better on-board graphics and faster turbo boost
- 256 GB SSD provides ample space for important documents
- The fanless cooling architecture promotes noise-free
Especificaciones técnicas
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Miscellaneous | |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | AC Power |
| DC Power | |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2 |
| Physical Characteristics | |
| Weight (Approximate) | 22.30 lb (10115.11 g) |
| Product Color | Black |
| Color Family | Black |
| Processor & Chipset | |
| Processor Speed | 4.40 GHz |
| Processor Type | Core i7 |
| Processor Cache | 10 MB |
| Technical Information | |
| Features | Anti-glare |
| Edge-to-Edge Glass Design | |
| Form Factor | All-in-One |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Cooling Fan | Fanless |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E708162 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | I-Series POS Terminal |
| Product Series | I-Series |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 4 |
| Cash Drawer Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Color Supported | 16.7 Million Colors |
| Screen Size | 21.5" |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Touchscreen | Yes |
| Graphics Controller Model | Intel UHD Graphics |
| Display Screen Type | LED |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Panel Technology | In-plane Switching Technology (IPS) |
| Active Display Size (Horizontal) | 18.74" (476 mm) |
| Active Display Size (Vertical) | 10.54" (267.72 mm) |
| Number of Simultaneous Touch Points | 10 |
