Acerca del producto

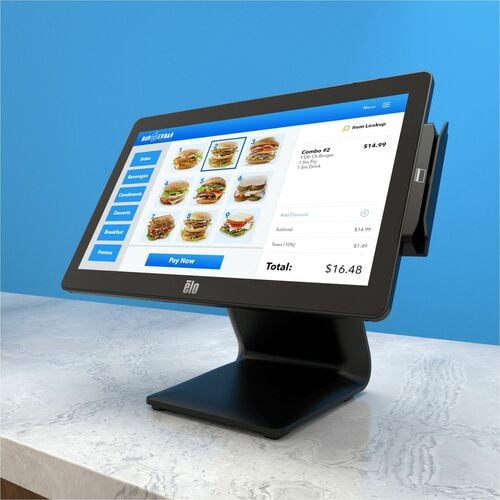

Brilliant and beautiful, interactive platform.
- 10-touchTouchPro PCAP
- Fanless, P54rated design
- Full HD IPSTouchscreen
- Easy to cleanedge-to-edge glass
- 50,000MTBF

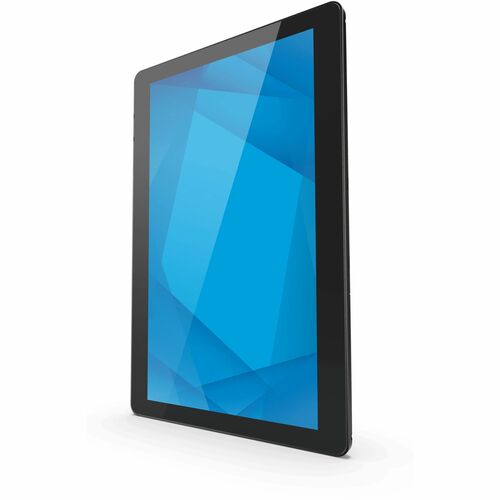

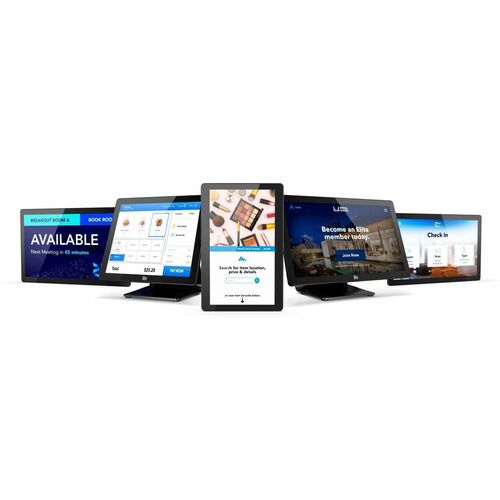

Modular design. Endless versatility.

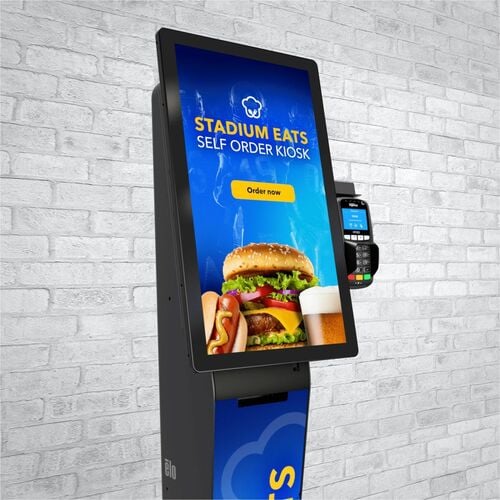

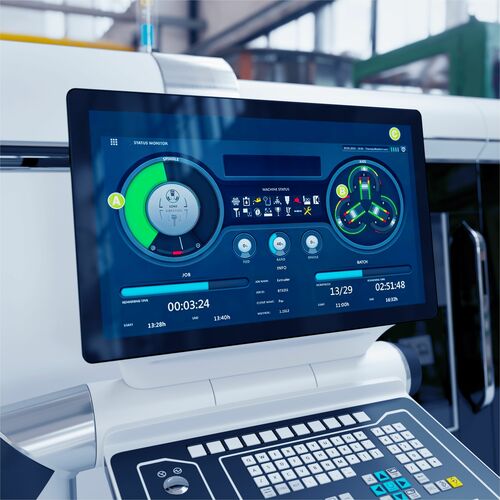

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

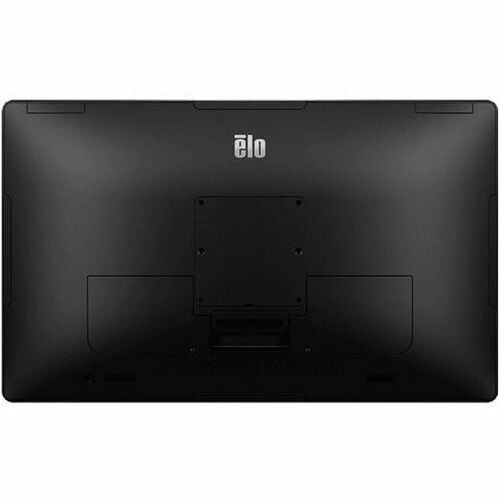

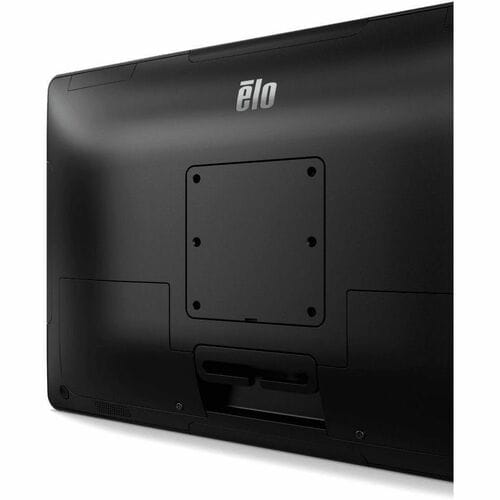

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro™ and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Support for Linux.
For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
EloBridge | Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.
- ? Advance Unit Replacement
- Extended Warranty
- Professional Services
- The 16 GB DDR5 SDRAM memory allows you to multitask and run intensive applications lag-free

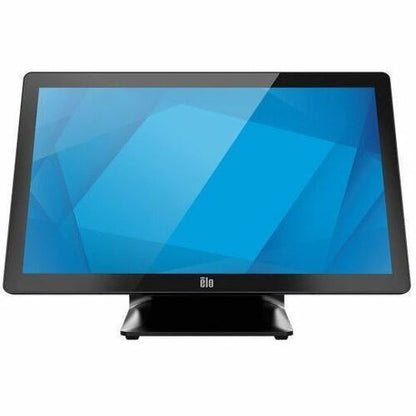

- The 21.5" (546.10 mm) diagonal display empowers you to work on your terminal with suitability
- Touchscreen interface enables swift access
- The Intel Core i5 4.40 GHz processor offers an ultra-efficient architecture to avoid apparent delays during multitasking and thus increase productivity
- 256 GB SSD provides you with enough space to store large files
- The fanless cooling architecture promotes noise-free
Especificaciones técnicas
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Miscellaneous | |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | DC Power |
| AC Power | |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2 |
| Physical Characteristics | |
| Weight (Approximate) | 22.30 lb (10115.11 g) |
| Product Color | Black |
| Color Family | Black |
| Processor & Chipset | |
| Processor Speed | 4.40 GHz |
| Processor Type | Core i5 |
| Processor Model | i5-1245UL |
| Processor Cache | 12 MB |
| Processor Manufacturer | Intel |
| Technical Information | |
| Features | Edge-to-Edge Glass Design |
| Anti-glare | |
| Form Factor | All-in-One |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Cooling Fan | Fanless |
| General Information | |
| Product Type | POS Terminal |
| Manufacturer Part Number | E457278 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Name | I-Series 3 POS Terminal |
| Product Line | I-Series 3 |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Powered USB | Yes |
| Number of USB 3.0 Ports | 4 |
| Cash Drawer Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type C Ports | 1 |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Color Supported | 16.7 Million Colors |
| Screen Size | 21.5" (546.10 mm) |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Xe Graphics |
| Display Screen Type | LED |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Panel Technology | In-plane Switching Technology (IPS) |
| Active Display Size (Horizontal) | 18.74" (476 mm) |
| Active Display Size (Vertical) | 10.54" (267.72 mm) |
| Number of Simultaneous Touch Points | 10 |
