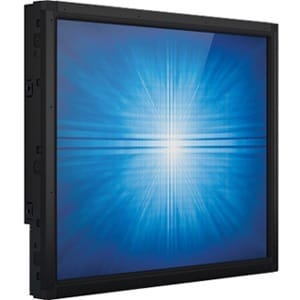

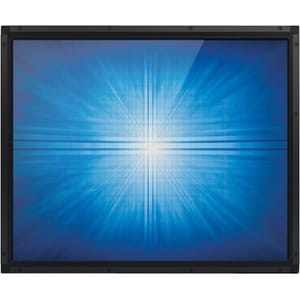

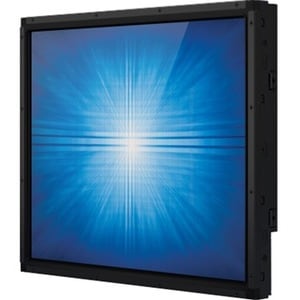

Elo 1790L Open Frame Touchscreen Display
The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Furnishes captivating visuals with about 250 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
Especificaciones técnicas
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Surface Wave |
| Touchscreen | Yes |
| Power Description | |
| Operating Power Consumption | 17.80 W |
| Standby Power Consumption | 1.50 W |
| Off-Mode Power Consumption | 500 mW |
| Energy Consumption per Year | 30 kWh |
| Video | |
| Contrast Ratio | 800:1 |
| Brightness | 250 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | E326942 |
| Manufacturer Website Address | http://www.elotouch.com |
| Packaged Quantity | 1 |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1790L |
| Product Name | 1790L 17" Open Frame Touchscreen (Rev B) |
| Brand Name | Elo |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| HDMI Version | 1.3 |
| VGA | Yes |
| DisplayPort | Yes |
| Serial Port | Yes |
| USB Standard | USB 2.0 |
| DisplayPort Version | 1.1a |
| Physical Characteristics | |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Height | 12.06" (306.32 mm) |
| Width | 14.50" (368.30 mm) |
| Depth | 1.87" (47.50 mm) |

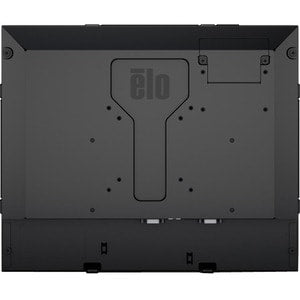

| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Technical Information | |
| Aspect Ratio | 5:4 |
| Response Time | 5 ms |
| Features | Anti-glare |
| On-screen Display (OSD) | |
| Mount Type | Front Mount |
| Rack-mountable | |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Curved Screen | No |
| Maximum Refresh Rate | 75 Hz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 17" |
