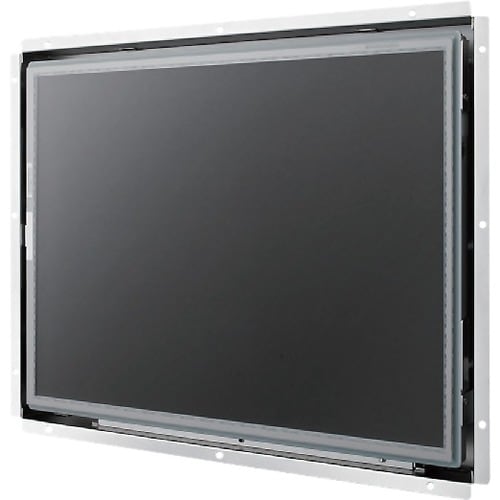

The Advantech IDS-3117 Open Frame Monitor Series offer ultra slim design supporting a 17" 1280 x 1024 pixels TFT LCD screen, with -20 ~ +60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- 350 cd/m² brightness gives an exceptional visible display for clear and consistent on-screen pictures
- 30 ms response time provides flicker-free video and images for your viewing pleasure
- VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs
Especificaciones técnicas
| Interfaces/Ports | |
| DVI | Yes |
| VGA | Yes |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 350 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 800:1 |
| Physical Characteristics | |
| Weight (Approximate) | 7.61 lb (3450 g) |
| Height | 13.57" (344.70 mm) |
| Width | 15.75" (400 mm) |
| Depth | 1.31" (33.40 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Technical Information | |
| Response Time | 30 ms |
| Mount Type | Rear Mount |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Number of Screens | 1 |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Screen Size Class | 17" |
| General Information | |
| Product Type | Open-frame LCD Monitor |
| Manufacturer Part Number | IDS-3117N-35SXA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3117N-35SXA1E |
| Product Name | 17" SXGA Industrial Open Frame Monitor |
| Product Series | IDS-3117 |
| Brand Name | Advantech |
