Data Capturing Devices

Expected delivery 3 to 7 business days (exceptions applied)

Elo

Monitor LCD táctil de marco abierto Elo 1790L de 17" - 5:4 - 5 ms - Vista de 17"

Monitor LCD táctil de marco abierto Elo 1790L de 17" - 5:4 - 5 ms - Vista de 17"

Precio habitual $0.00 CAD
Precio habitual $0.00 CAD Precio de oferta $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Monitor LCD táctil de marco abierto Elo 1790L de 17" - 5:4 - 5 ms - 17" visibles - Resistivo de 5 hilos - 1280 x 1024 - SXGA - 16,7 millones de colores - 800:1 - 250 cd/m² - Retroiluminación LED - HDMI - USB - VGA - DisplayPort - Negro - 3 años de garantía

VPN:E326347 SKU:DCD494124 UPC:

  • La tecnología resistiva de 5 cables se puede activar con prácticamente cualquier objeto, como un lápiz óptico, una mano enguantada, un bolígrafo y los dedos.
  • La tecnología de retroiluminación LED proporciona un bajo consumo de energía líder en la industria y materiales menos peligrosos.
  • La relación de contraste de 800:1 produce una nitidez mejorada y precisión de sombreado en cada imagen.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Monitor LCD táctil de marco abierto Elo 1790L de 17" - 5:4 - 5 ms - Vista de 17"

Resumen de información del producto

Monitor LCD táctil de marco abierto Elo 1790L de 17" - 5:4 - 5 ms - Vista de 17"

Acerca del producto

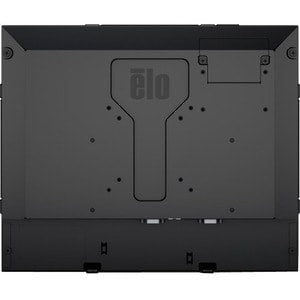

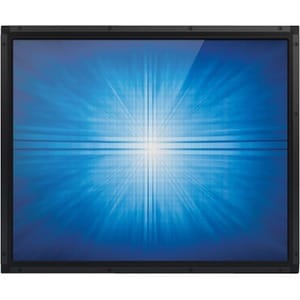

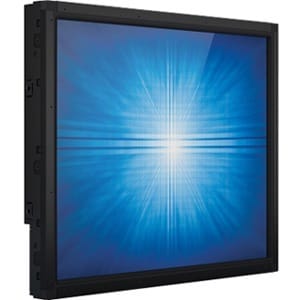

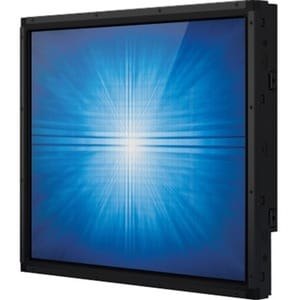

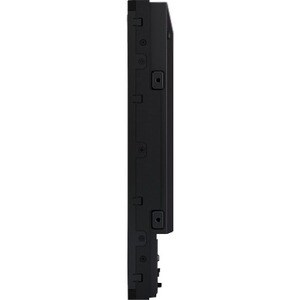

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • High quality energy-saving LED panel
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications

Especificaciones técnicas

Power Description
Operating Power Consumption17.80 W
Touchscreen Information
Touchscreen Type5-wire Resistive
Interfaces/Ports
USBYes
HDMIYes
VGAYes
DisplayPortYes
Video
Contrast Ratio800:1
Brightness250 cd/m²
Color Supported16.7 Million Colors
Maximum Resolution1280 x 1024
Miscellaneous
Package Contents
  • 1790L 17" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • Japan Class-B info sheet
Certifications & Standards
  • TÜV
  • Environmentally FriendlyYes
    Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
    Restriction of Hazardous Substances (RoHS)
    Waste Electrical and Electronic Equipment Directive (WEEE)
    Physical Characteristics
    Weight (Approximate)7.94 lb (3600 g)
    Height12.06" (306.32 mm)
    Width14.50" (368.30 mm)
    Depth1.87" (47.50 mm)
    VESA Mount CompatibleYes
    Product ColorBlack
    General Information
    Product TypeOpen-frame LCD Touchscreen Monitor
    Manufacturer Part NumberE326347
    Manufacturer Website Addresshttp://www.elotouch.com
    ManufacturerElo Touch Solutions, Inc
    Product Model1790L
    Product Name1790L 17" Open Frame Touchscreen (Rev B)
    Brand NameElo
    Technical Information
    Aspect Ratio5:4
    Response Time5 ms
    Mount TypeFront Mount
    Rack-mountable
    Viewable Screen Size17"
    Screen ModeSXGA
    Backlight TechnologyLED
    Screen Size Class17"
