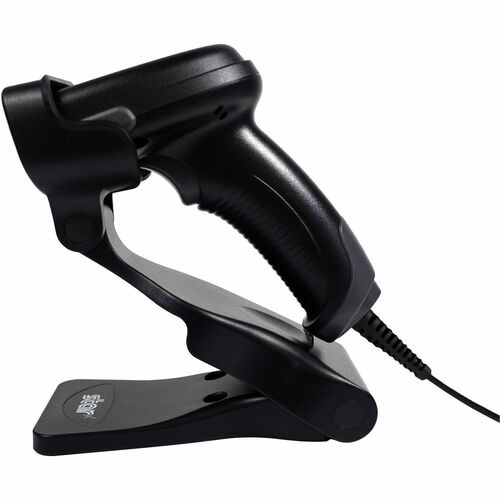

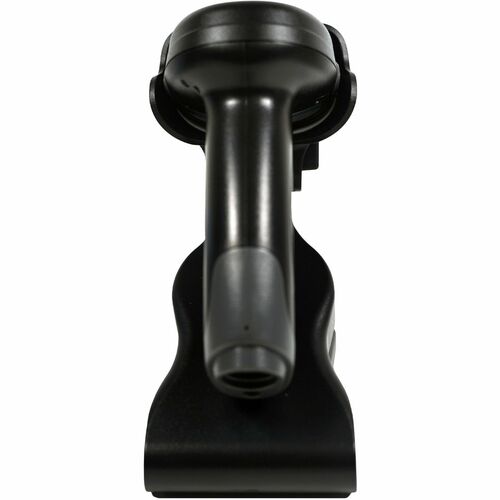

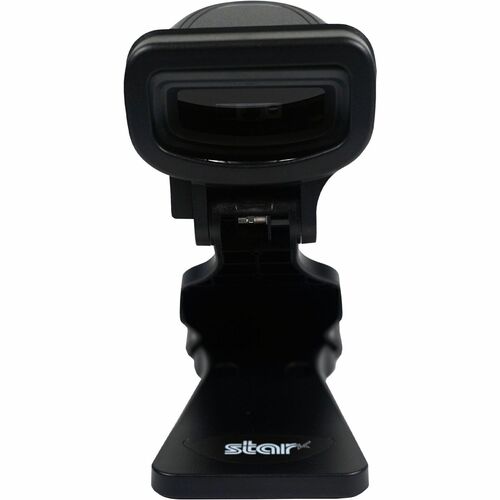

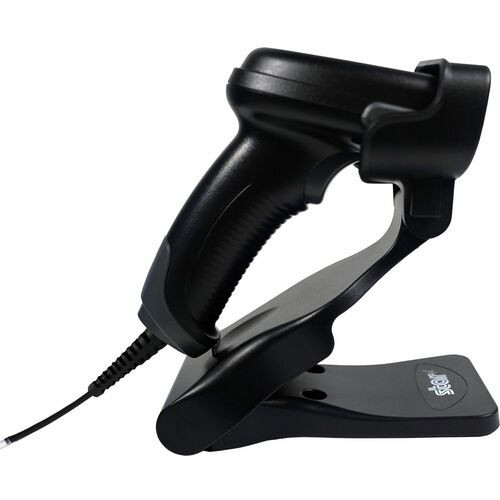

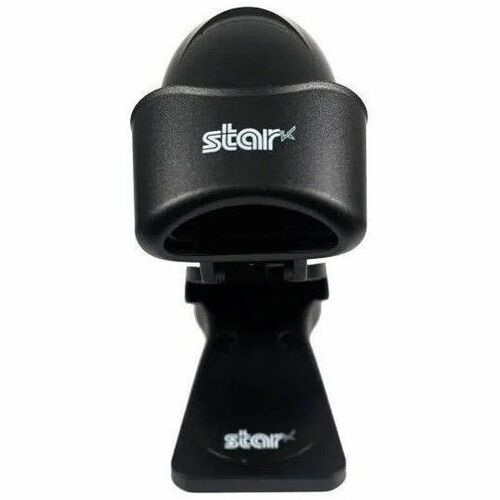

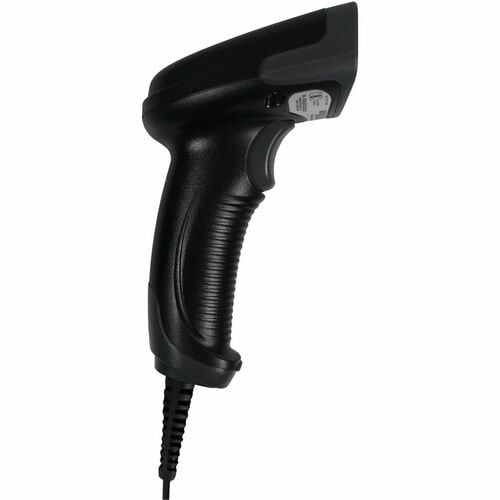

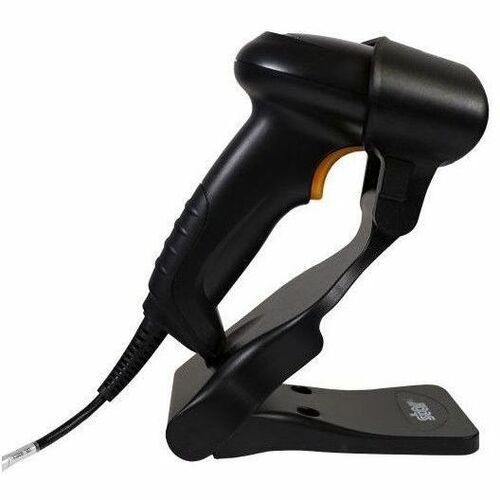

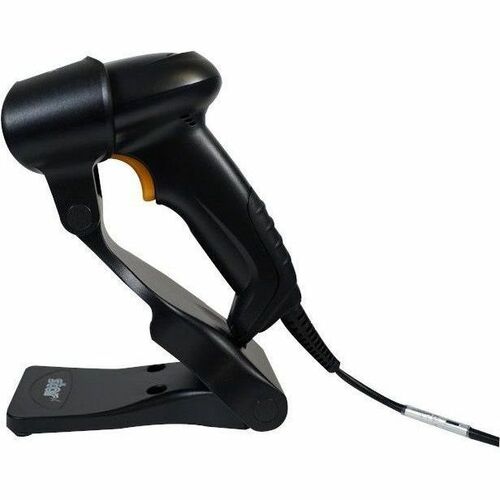

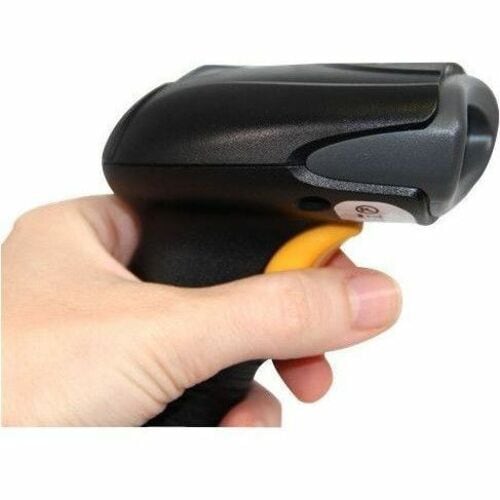

Handheld USB Barcode Scanner

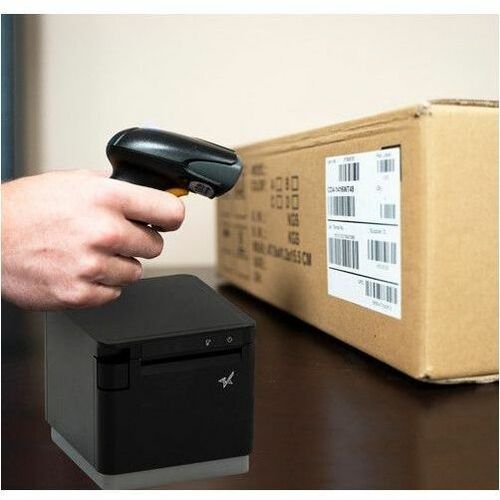

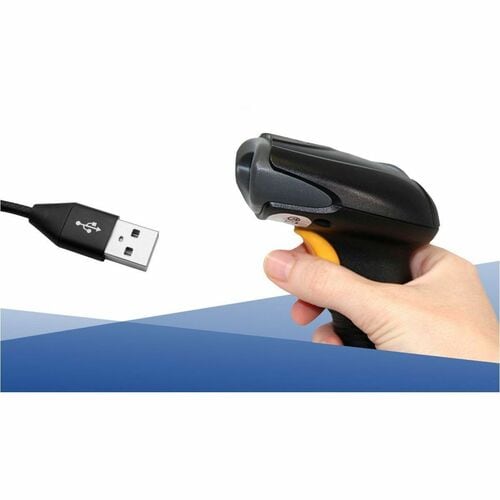

The BSH-20U is a versatile, cost-effective 1D/2D handheld USB barcode scanner equipped with a high-performance CPU. It excels in scanning high-density, high-volume, and distorted barcodes on various surfaces, including paper, uneven media, or digital displays. Designed for durability, it features an IP42-rated construction and drop-resistant housing, ensuring resilience in active business settings. It's ideal for a range of markets like retail, hospitality, and the healthcare sector and is compatible with any POS system. It supports easy plug-and-play functionality with iOS, Android, and Windows devices. For businesses seeking advanced scanning capabilities, the BSH-20U is the efficient, reliable, and economical choice.
Especificaciones técnicas
| Interfaces/Ports | |
| Host Interface | USB |
| Serial | |
| General Information | |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | 37950920 |
| Manufacturer Website Address | http://www.starmicronics.com |
| Manufacturer | Star Micronics, Inc |
| Product Model | BSH-20U |
| Product Name | BSH-20U Handheld Wired USB 1D/2D Barcode Scanner |
| Brand Name | Star Micronics |
| Physical Characteristics | |
| Weight (Approximate) | 4.41 oz (125 g) |
| Form Factor | Handheld |
| Length | 5.75" (146 mm) |
| Height | 2.72" (69 mm) |
| Width | 4.06" (103 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Application/Usage | Hospitality |
| Healthcare | |
| Retail | |
| Package Contents |
|
| Compatibility | Star Micronics:
|
| Platform Supported | Android |
| iOS | |
| Ingress Protection (IP) Rating | IP42 |
| Technical Information | |
| Barcode Symbology Supported | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Connectivity Technology | Cable |
| Features | Beep |
| Notification LED | |
| Scanning Distance | 10.24" (260 mm) |
| Light Source | LED |
| Drop Specification | 1.2m drop Resistance |
| Depth of Field |
|
| Image Sensor Type | CMOS |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Illumination Color | White |
| Scanning Capability | 1D |
| 2D | |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Reading Angle (Skew) | 55° |
| Reading Angle (Pitch) | 55° |
| Reading Angle (Roll) | 360° |
| Minimum Print Contrast | 20% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Air Electrostatic Discharge (+/-) | 15kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Image Sensor Resolution | 640 x 480 |
