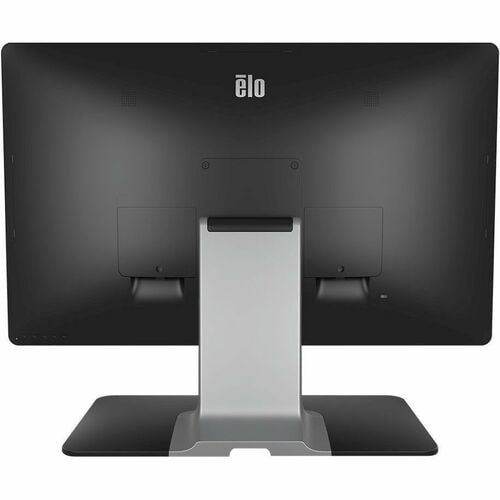

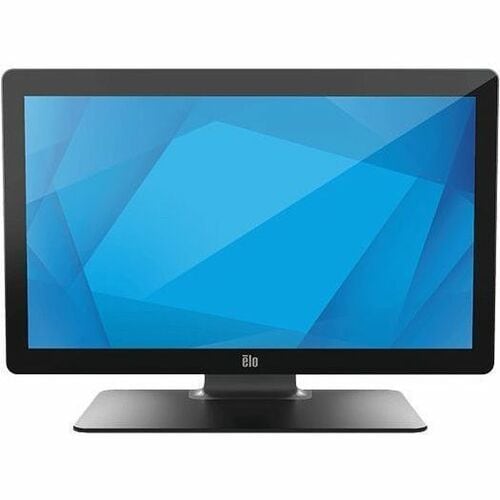

Monitor táctil LED Elo 2203LM de 22" - 16:9 - 14 ms - 21,5" visibles -

Monitor táctil LED Elo 2203LM de 22" - 16:9 - 14 ms - 21,5" visibles -

Precio habitual $0.00 CAD
Precio habitual $0.00 CAD Precio de oferta $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Monitor táctil LED Elo 2203LM de 22" - 16:9 - 14 ms - 21,5" visibles - Capacitivo proyectado - Pantalla multitáctil de 10 puntos - 1920 x 1080 - Full HD - 16,7 millones de colores - 250 cd/m² - Retroiluminación LED - Altavoces - HDMI - USB - VGA - Negro - 3 años de garantía

VPN:E658788 SKU:DCD557365 UPC:

  • La activación multitáctil se puede realizar con la tecnología de pantalla táctil capacitiva proyectiva, es decir, puede ingresar con dos dedos a la vez.
  • La tecnología de retroiluminación LED proporciona un bajo consumo de energía líder en la industria y materiales menos peligrosos.
  • El brillo de 250 cd/m² proporciona una pantalla excepcionalmente visible para obtener imágenes claras y consistentes en pantalla.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Monitor táctil LED Elo 2203LM de 22" - 16:9 - 14 ms - 21,5" visibles -

Resumen de información del producto

Monitor táctil LED Elo 2203LM de 22" - 16:9 - 14 ms - 21,5" visibles -

Acerca del producto

DICOM Medical Grade Touchscreen Monitor

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 - Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy | Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

  • Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 250 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles

Especificaciones técnicas

Audio
SpeakersYes
Number of Speakers2
Power Description
Frequency50 Hz
60 Hz
Operating Power Consumption16.78 W
Touchscreen Information
Touchscreen TypeProjected Capacitive
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10
Interfaces/Ports
USBYes
HDMIYes
VGAYes
Number of USB Ports4
Video
Brightness250 cd/m²
Color Supported16.7 Million Colors
Maximum Resolution1920 x 1080
Native Contrast Ratio1,000:1
Miscellaneous
Package Contents
  • 2203LM 22" Medical Grade Touchscreen Monitor
  • Stand
  • Quick Install Guide
  • 3 x Tie Wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick (E323104)
  • Power Cable
  • EEI Label
  • DICOM Calibration Sheet
  • 2 x Cable Cover Screws
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
China Restriction of Hazardous Substances (China RoHS)
General Information
Product TypeLED Touchscreen Monitor
Manufacturer Part NumberE658788
Manufacturer Website Addresshttp://www.elotouch.com
ManufacturerElo Touch Solutions, Inc
Product Model2203LM
Product Name2203LM 22" Medical Grade Touchscreen Monitor
Product Series03
Brand NameElo
Physical Characteristics
Weight (Approximate)10.58 lb (4800 g)
Weight with Stand (Approximate)14.88 lb (6750 g)
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Height with Stand15.11" (383.80 mm)
Width with Stand20.74" (526.90 mm)
Depth with Stand7.61" (193.40 mm)
Product ColorBlack
Color FamilyBlack
Technical Information
Aspect Ratio16:9
Response Time14 ms
FeaturesLED Indicator
Ergonomic Design
Anti-glare
OSD/Power Lock
Privacy Filter
On-screen Display (OSD)
Mount TypeArm-mountable
Cart Mountable
Wall Mountable
Viewable Screen Size21.5"
Screen ModeFull HD
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Backlight TechnologyLED
Horizontal Frequency30 kHz to 82 kHz
Vertical Frequency50 Hz to 75 Hz
Screen Size Class22"
Ingress Protection (IP) RatingIP54
Impact Protection (IK) RatingIK06
Response Time Details14ms Typical
