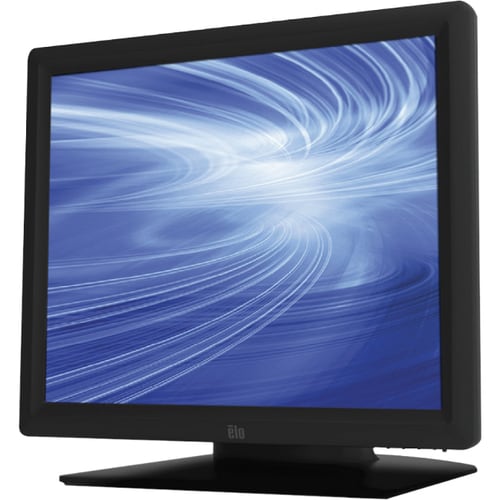

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
- The IntelliTouch Surface Wave touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability since it uses clear glass that keeps on working regardless of the possibility of scratches
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Enjoy crisp content and energetic hues with the 250 cd/m² brightness
Especificaciones técnicas
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Surface Wave |
| Touchscreen | Yes |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Serial Port | Yes |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Video | |
| Contrast Ratio | 800:1 |
| Brightness | 250 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Standard Refresh Rate | 75 Hz |
| Power Description | |
| Input Voltage | 220 V AC |
| 12 V DC | |
| 110 V AC | |
| Operating Power Consumption | 20 W |
| Standby Power Consumption | 1.80 W |
| Off-Mode Power Consumption | 1.40 W |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E077464 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1717L |
| Product Name | 1717L Rev B 17-inch Multifunction Desktop |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight with Stand (Approximate) | 11.90 lb (5400 g) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Height with Stand | 15.43" (392 mm) |
| Width with Stand | 14.21" (361 mm) |
| Depth with Stand | 8.46" (215 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Aspect Ratio | 5:4 |
| Response Time | 5 ms |
| Features | Security Lock |
| Mount Type | Wall Mountable |
| Desk Mountable | |
| Pole Mount | |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED |
| Screen Size Class | 17" |
