Acerca del producto

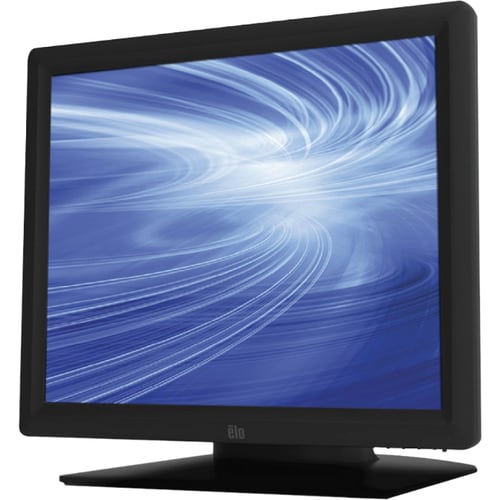

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail- focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, loyalty systems, and shelf-level and countertop interactive digital signage are found.
The 1717L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch-and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR) is programmable to either HID or Keyboard Emulation. It is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the- art LED backlights in the display panels.
- Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Furnishes captivating visuals with about 250 cd/m² brightness levels
Especificaciones técnicas
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Touchscreen | Yes |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Serial Port | Yes |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Operating Power Consumption | 20 W |
| Standby Power Consumption | 1.80 W |
| Off-Mode Power Consumption | 1.40 W |
| Video | |
| Contrast Ratio | 800:1 |
| Brightness | 250 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Standard Refresh Rate | 75 Hz |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E649473 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1717L |
| Product Name | 1717L Rev B 17-inch Multifunction Desktop |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 11.90 lb (5400 g) |
| Height | 15.43" (392 mm) |
| Weight with Stand (Approximate) | 11.90 lb (5400 g) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Height with Stand | 15.43" (392 mm) |
| Width with Stand | 14.21" (361 mm) |
| Depth with Stand | 8.46" (215 mm) |
| Product Color | Black |
| Technical Information | |
| Aspect Ratio | 5:4 |
| Response Time | 7.80 ms |
| Features | Security Lock |
| Mount Type | Desk Mountable |
| Pole Mount | |
| Wall Mountable | |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED |
| Screen Size Class | 17" |
