Introduction

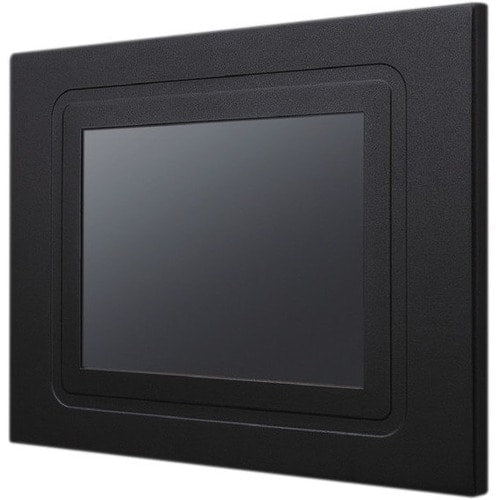

The Advantech IDS-3206 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.
- With 4-wire Resistive touch technology, the top & bottom sheets measure each other's voltages and based on the sensors, can determine the location point of touch
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- View your content easily in well-lit areas with 800 cd/m² brightness

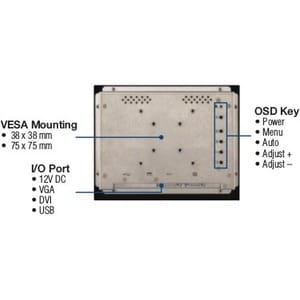

- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Especificaciones técnicas
| Touchscreen Information | |
| Touchscreen Type | 4-wire Resistive |

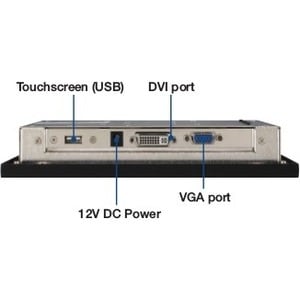

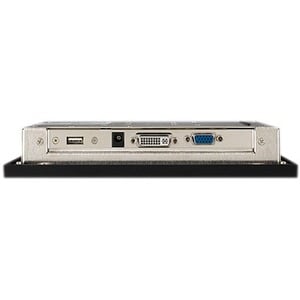

| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 800 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 640 x 480 |
| Native Contrast Ratio | 600:1 |
| Physical Characteristics | |
| Weight (Approximate) | 2.65 lb (1200 g) |
| Height | 6.76" (171.80 mm) |
| Width | 8.62" (219 mm) |
| Depth | 1.48" (37.66 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Technical Information | |
| Response Time | 25 ms |
| Mount Type | Panel Mount |
| Rear Mount | |
| Viewable Screen Size | 6.5" |
| Screen Mode | XGA |
| Backlight Technology | LED |
| Screen Size Class | 7" |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3206R-80VGA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3206 |
| Product Name | IDS-3206 6.5" VGA Industrial Panel Mount Monitor |
| Brand Name | Advantech |
