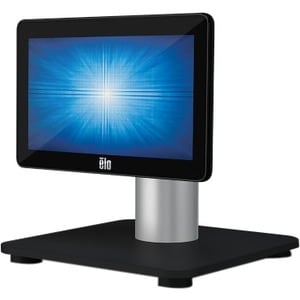

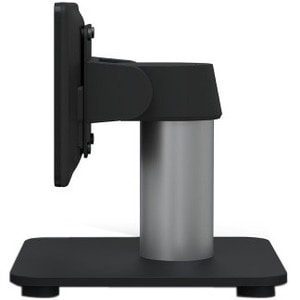

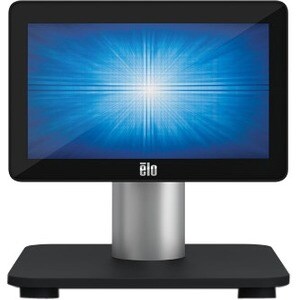

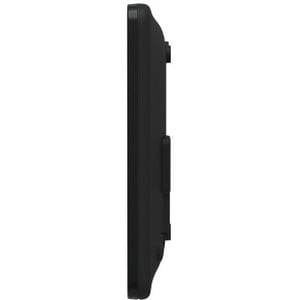

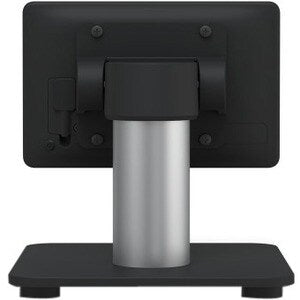

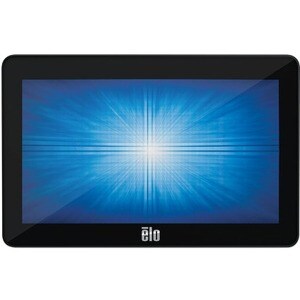

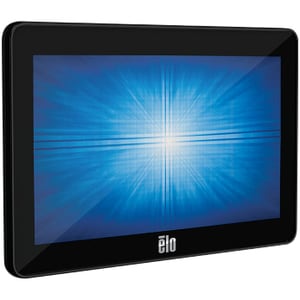

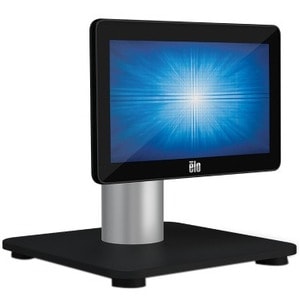

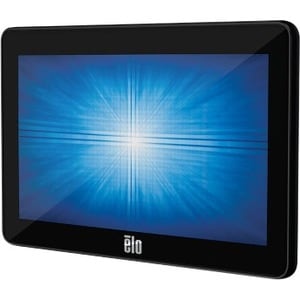

Elo's 0702L Touchscreen Monitor
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
DisplayLink technology supports Windows, Android and Linux operating systems.
Mount With Flexibility
Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.
Brilliant Displays from 7 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.
EloCareSM - We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- View your content easily in well-lit areas with 500 cd/m² brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Power Description | |
| Operating Power Consumption | 3.70 W |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Brightness | 500 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 800 x 480 |
| Native Contrast Ratio | 500:1 |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E796382 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 0702L |
| Product Name | 0702L 7" Touchscreen Monitor |
| Product Series | 02 |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 12.32 oz (349.27 g) |
| Height | 4.61" (117.09 mm) |
| Width | 7.11" (180.59 mm) |
| Depth | 0.70" (17.78 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Aspect Ratio | 5:3 |
| Response Time | 25 ms |
| Features | Anti-glare |
| Mount Type | Shelf Mount |
| Wall Mountable | |
| Pole Mount | |
| Viewable Screen Size | 7" |
| Screen Mode | WVGA |
| Horizontal Viewing Angle | 150° |
| Vertical Viewing Angle | 120° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 31.50 kHz |
| Vertical Frequency | 60 Hz |
| Screen Size Class | 7" |
| Response Time Details | 25ms Typical |
