Data Capturing Devices

Expected delivery 3 to 7 business days (exceptions applied)

Elo

Monitor LCD táctil de marco abierto Elo 1598L de 15" - 4:3 - 35 ms - Vista de 15"

Monitor LCD táctil de marco abierto Elo 1598L de 15" - 4:3 - 35 ms - Vista de 15"

Precio habitual $0.00 CAD
Precio habitual $0.00 CAD Precio de oferta $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Monitor LCD táctil de marco abierto Elo 1598L de 15" - Relación de aspecto 4:3 - 35 ms - 15" visibles - Resistivo de 5 hilos - 1024 x 768 - XGA - 16,2 millones de colores - 1500:1 - 500 cd/m² - Retroiluminación LED - HDMI - USB - VGA - DisplayPort - Negro

VPN:E126407 SKU:DCD812814 UPC:

  • Cuenta con tecnología táctil resistiva de 5 cables que está hecha de un panel de vidrio y una pantalla de película, cada uno cubierto con una fina capa metálica, aislada por un espacio estrecho.
  • La tecnología de retroiluminación LED proporciona un bajo consumo de energía líder en la industria y materiales menos peligrosos.
  • La relación de contraste de 1500:1 produce una nitidez mejorada y precisión de sombreado en cada imagen.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Monitor LCD táctil de marco abierto Elo 1598L de 15" - 4:3 - 35 ms - Vista de 15"

Resumen de información del producto

Monitor LCD táctil de marco abierto Elo 1598L de 15" - 4:3 - 35 ms - Vista de 15"

Acerca del producto

The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50 C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit, manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

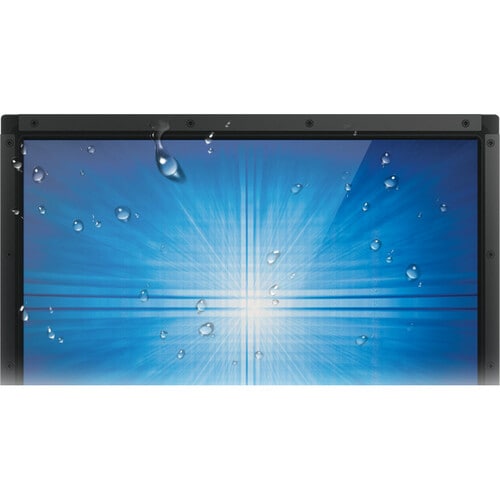

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration.

Touch ready.

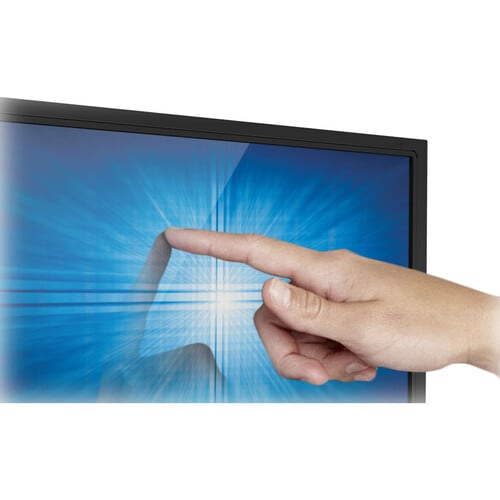

The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

  • HDMI, Display Port and VGA video interfaces
  • Backed by a standard three-year warranty extendable to five years, including the LCD panel
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 1,500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • View your content easily in well-lit areas with 500 cd/m² brightness

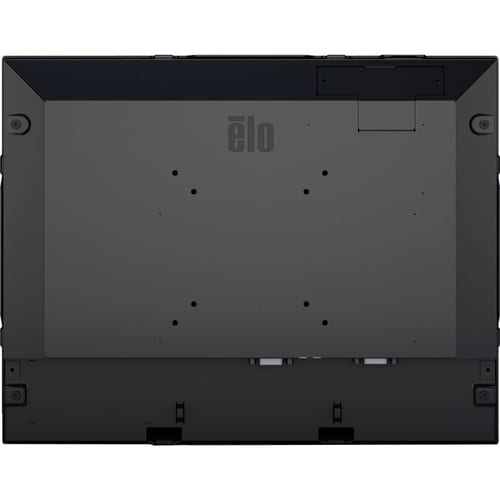

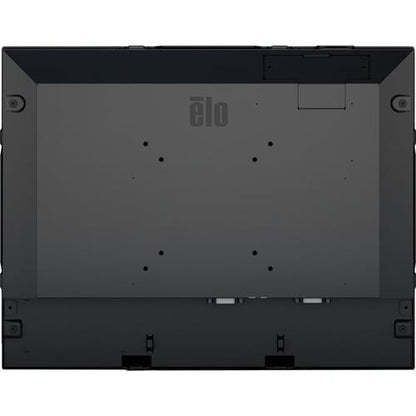

  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor

Especificaciones técnicas

Power Description
Operating Power Consumption14.10 W
Touchscreen Information
Touchscreen Type5-wire Resistive
Interfaces/Ports
USBYes
HDMIYes
VGAYes
DisplayPortYes
Video
Contrast Ratio1,500:1
Brightness500 cd/m²
Color Supported16.2 Million Colors
Maximum Resolution1024 x 768
Physical Characteristics
Weight (Approximate)6.40 lb (2902.99 g)
Height10.41" (264.41 mm)
Width13.24" (336.30 mm)
Depth1.65" (41.91 mm)
VESA Mount CompatibleYes
Product ColorBlack
General Information
Product TypeOpen-frame LCD Touchscreen Monitor
Manufacturer Part NumberE126407
Manufacturer Website Addresshttp://www.elotouch.com
ManufacturerElo Touch Solutions, Inc
Product Model1598L
Product Name1598L 15" Open Frame Touchscreen (Rev A)
Brand NameElo
Technical Information
Aspect Ratio4:3
Response Time35 ms
Mount TypeFront Mount
Rack-mountable
Viewable Screen Size15"
Screen ModeXGA
Backlight TechnologyLED
Screen Size Class15"
