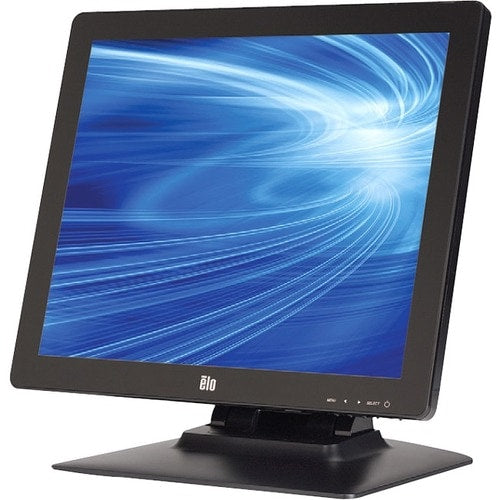

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
- The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
- The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Furnishes captivating visuals with about 250 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Especificaciones técnicas
| Audio | |
| Speakers | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Certifications & Standards |
|
| Power Description | |
| Input Voltage | 110 V AC |
| 220 V AC | |
| Operating Power Consumption | 12 W |
| Touchscreen Information | |
| Touchscreen Type | Surface Acoustic Wave |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Video | |
| Contrast Ratio | 700:1 |
| Brightness | 250 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Standard Refresh Rate | 60 Hz |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | E394454 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1523L |
| Product Name | 1523L Multifunction 15-Inch Desktop Touchmonitor |
| Brand Name | Elo |
| Physical Characteristics | |
| Weight (Approximate) | 5.84 lb (2650 g) |
| Weight with Stand (Approximate) | 9.79 lb (4440 g) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Height with Stand | 7.83" (199 mm) |
| Width with Stand | 14.09" (358 mm) |
| Depth with Stand | 12.52" (318 mm) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Aspect Ratio | 4:3 |
| Response Time | 25 ms |
| Features | Cable Management |
| Water Proof | |
| Security Lock | |
| Mount Type | Desk Mountable |
| Wall Mountable | |
| Screen Surface | Anti-scratch |
| Anti-glare | |
| Viewable Screen Size | 15" |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Adjustable Display Angle | Yes |
| Adjustable Display Height | Yes |
| Screen Size Class | 15" |
