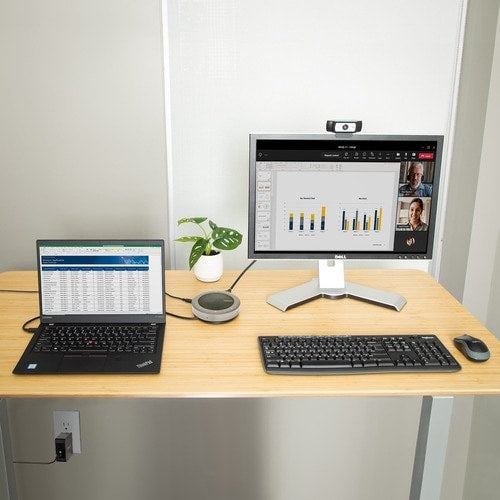

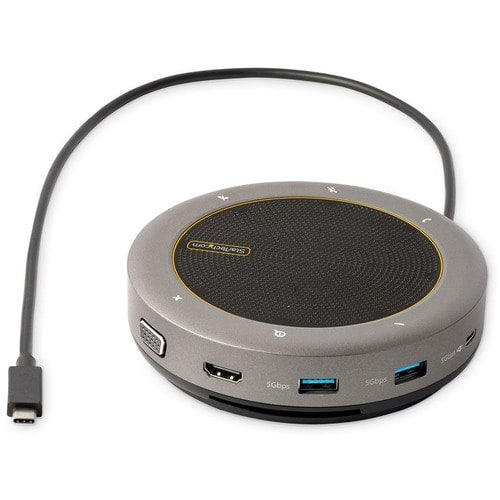

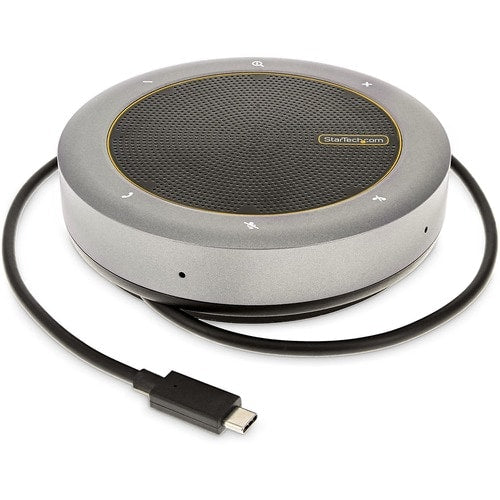

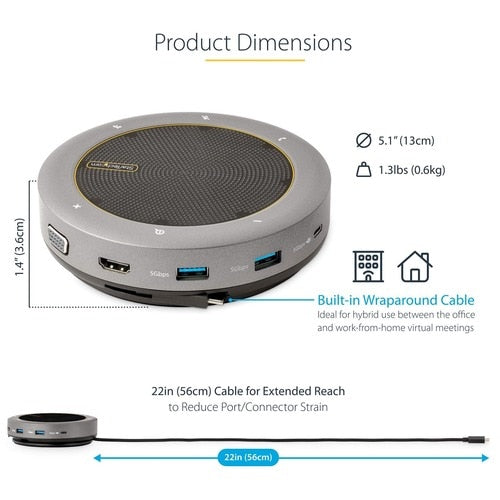

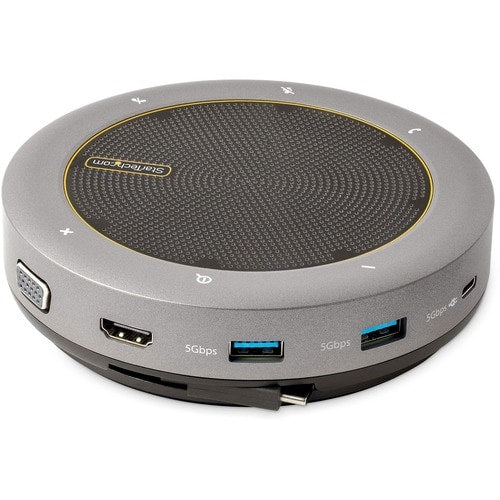

This USB Type-C Conference Speaker Mini Dock features a speakerphone, HDMI/VGA video output, USB-C PD pass-through/data, a USB-A x2 hub, a built-in USB-C host cable, and tap/touch buttons with LED indicators. It simplifies a workstation setup, converting any desk into a teleconferencing space. The dock features HDMI or VGA single-video output. It has 2 USB-A ports and a USB-C port with the option for Power Delivery (PD) pass-though.. The Conference Speaker Dock connects to the host device, using a built-in wraparound 22 in. (56 cm) USB-C host cable. Connect this host cable to a USB-C or Thunderbolt 3/4™ port.
Unified Collaboration Platform Compatibility

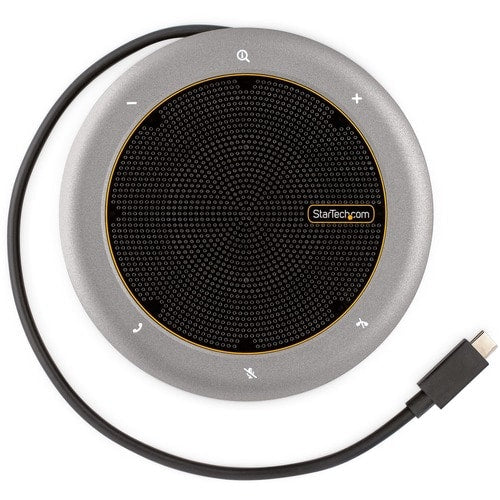

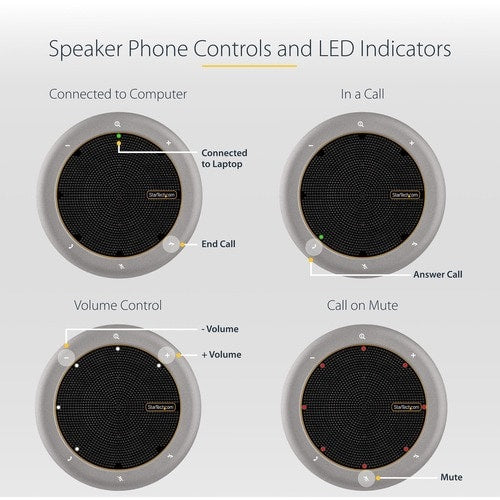

The Speakerphone Dock is optimized for use with Unified Communications (UC) platforms, such as Microsoft Teams, Zoom, Google Meet, etc. The dock features buttons that intuitively control functions within the UC platform:
- Call Button -Tap to receive and accept an incoming call.
- Hang up Button -Tap to disconnect from the current call or to reject an incoming call.
- +/- Volume Buttons - Tap to adjust the system volume.
- Mute Button - Tap to disable the built-in microphone.
The dock is optimized for Microsoft Teams and fully compatible with other UC/softphone applications including Zoom, Skype, and Google Meet.

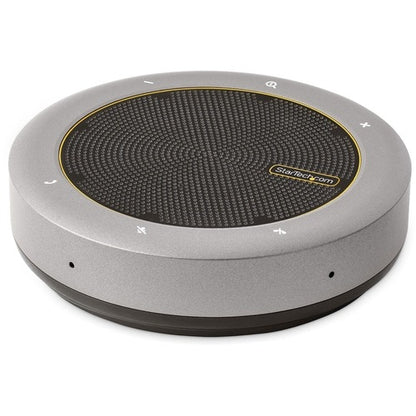

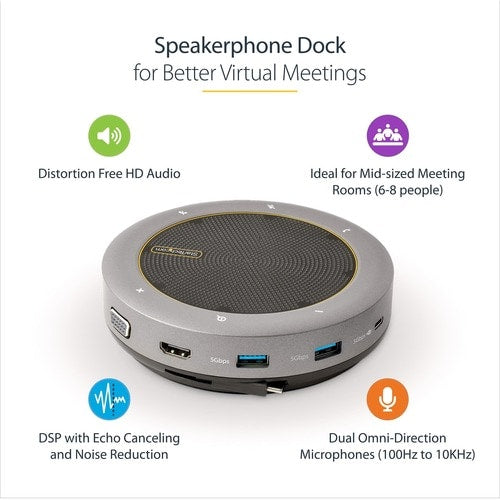

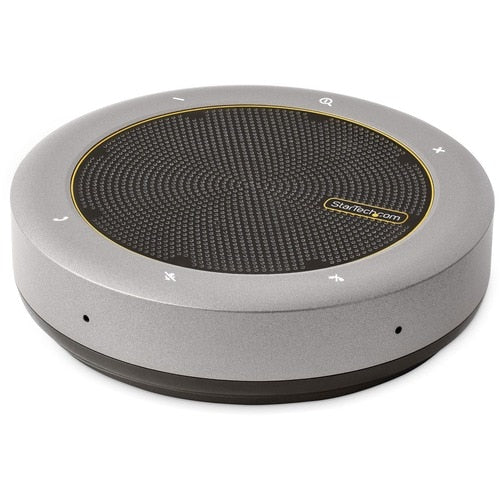

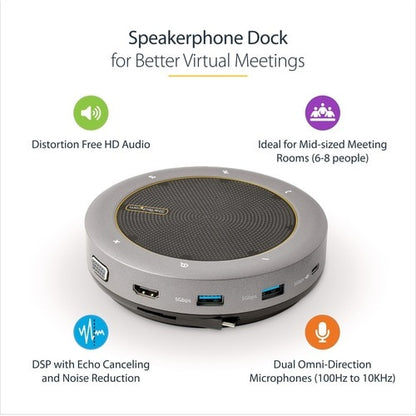

Conference Speaker and Omnidirectional Microphones
Capture voices from up to 7.5ft (2.3m) away, using the dual-omnidirectional microphones (100Hz to 10kHz) with echo cancellation and noise reduction. The microphones are ideal for capturing audio in mid-size meeting rooms (6-8 people) or from any location in a home office room. The speakers deliver 89dB (100Hz - 20kHz) distortion-free high-definition audio.

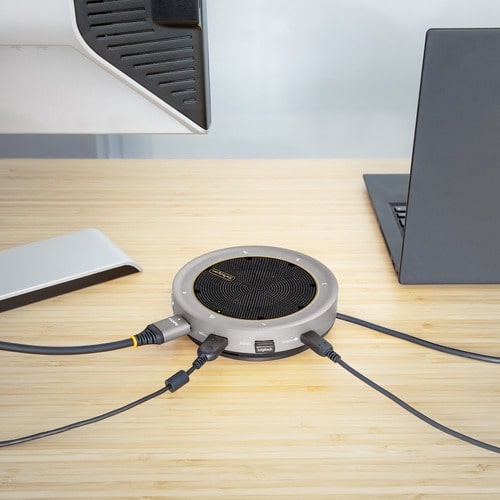

Easy Deployment
The speaker dock features docking station connectivity options in a quick-to-deploy format. Connect an HDMI or VGA enabled display device for single-video output. The HDMI video output supports resolutions up to 4K 60Hz. The VGA video output supports resolutions up to 1080p 60Hz.
More from the Manufacturer

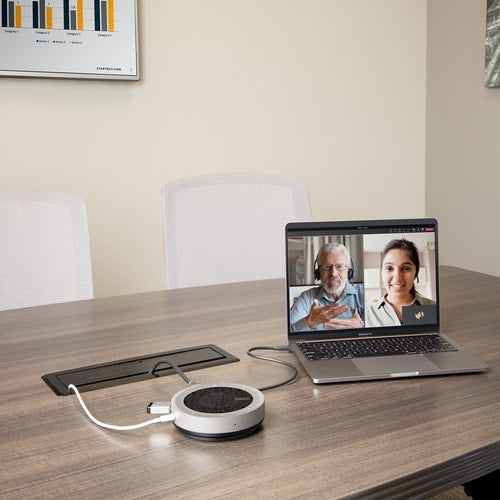

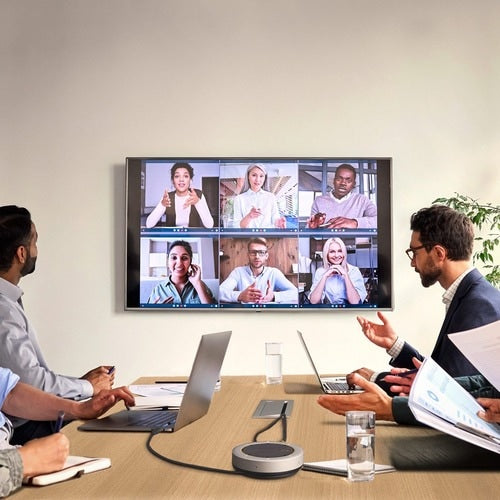

- RECREATE A CONFERENCE ROOM EXPERIENCE: Ideal for hybrid travel use between the office, shared workspaces, huddle and boardrooms & work-from-home (WFH) virtual meetings; Converts any desk into a tele-conference space
- OPTIMIZED FOR MS TEAMS: Optimized for Microsoft Teams and fully compatible with other UC/softphone applications like Zoom, Skype & Google Meet; Call control buttons work with UC platform software (+/- volume, answer/hang up, mute)

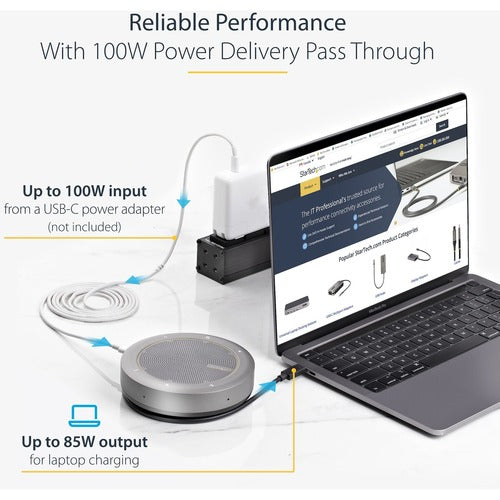

- FLEXIBLE SETUP: USB bus powered or USB Power Delivery (100W) with external USB-C power adapter (15W for dock); 22in (56cm) wraparound cable for extended reach to reduce connector strain on 2-in-1 devices (Surface Pro 7 & up) or laptops on riser stands
- COMPATIBILITY: Thunderbolt 4 & 3, USB Type C; HP/Lenovo/Dell/MacBook/Chromebook; Supports Windows, macOS, iOS (iPhone 15 [Plus/Pro/Max] and up), Chrome OS, HDMI 4K 60Hz output (DP 1.4 Alt Mode); Intel 11th / 12th Gen Processors, Apple M1 / M2 / Pro / Max

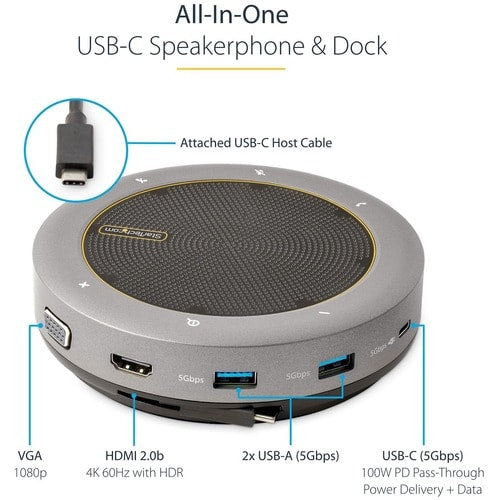

- ALL-IN-ONE USB-C SPEAKERPHONE: USB-C speaker, microphone & multiport adapter, HDMI 4K 60Hz HDR (DP 1.4 alt mode)/4K 30Hz (DP 1.2 alt mode) or VGA, 2x USB-A 3.2 Gen 1 hub (5Gbps), Shared USB-C 5Gbps port or 100W PD pass-through (85W laptop charging)
Especificaciones técnicas
| Power Description | |
| Power Consumption | 15 W |
| Microphone | |
| Polar Pattern | Omni-directional |
| Microphone Frequency Response | 100Hz - 10kHz |
| Microphone Pickup Range | 90" (2286 mm) |
| Speaker | |
| Sound Pressure Level | 89 dB |
| Peak Audio Output | 89 dB |
| Speaker Frequency Response | 100Hz to 20kHz |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Controls/Indicators | |
| Controls | Volume Down |
| Reject Call | |
| Call | |
| Volume Up | |
| Status Indicators | Hang Up Call |
| Incoming | |
| Mute | |
| General Information | |
| Product Type | Speakerphone |
| Manufacturer Part Number | DKTBRSPMPD |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | Speakerphone |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 13.76 oz (390 g) |
| Form Factor | Desktop |
| Length | 5.10" (129.54 mm) |
| Height | 1.40" (35.56 mm) |
| Width | 5.10" (129.54 mm) |
| Product Color | Space Gray |
| Product Material | Plastic |
| Interfaces/Ports | |
| Host Interface | USB-C |
| USB | Yes |
| HDMI | Yes |
| HDMI Version | HDMI 2.0 |
| Number of HDMI Ports | 1 |
| USB Standard | USB 3.2 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 1 |
| USB Type-C (Power Delivery) | 100 W |
| Video Ports | 1 x VGA (15 pin, High Density D-Sub) |
| Technical Information | |
| Application/Usage | Meeting Room |
| Board Room | |
| Conference Room | |
| Home Office Room | |
| Office Room | |
| Workstation | |
| Cable Length | 21.96" (557.78 mm) |
| Connectivity Technology | Wired |
| Features | Noise Reduction |
| Echo Cancellation | |
| Meeting Persons Capacity | 8 |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Notebooks of: Apple Smartphones: |
| Operating System Supported | Windows 8 |
| Windows 7 | |
| macOS Catalina | |
| macOS Big Sur | |
| Windows 11 | |
| Windows 10 | |
| macOS Monterey | |
| Chrome OS | |
| Windows 8.1 | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Unified Communications Platform | Zoom |
| Skype | |
| Microsoft Teams | |
| Google Meet |
