Acerca del producto

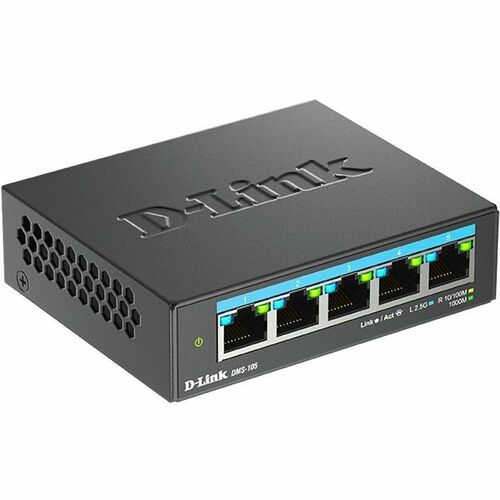

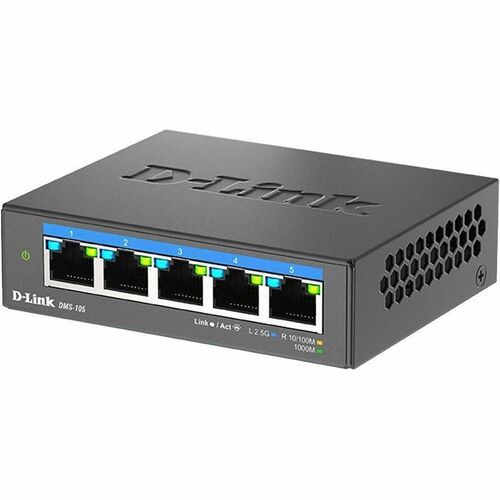

The DMS-105 5-Port Multi-Gigabit Unmanaged Switch is ideally suited for Small Office Home Office (SOHO) environments. With a durable design, silent operation, and plug-and-play functionality, the DMS-105 switch can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE), 802.1p Quality of Service (QoS), and multi-Gigabit Ethernet connection speeds provide advanced features in a compact package.
Integrated Networking
The DMS-105 switch uses auto-sensing ports, providing a small workgroup to flexibly connect Ethernet, Fast Ethernet, Gigabit and 2.5 Gigabit devices to create an integrated network. These ports detect the network speed via auto-negotiation allowing you to get the maximum speed possible for each device connected to your network.
Simplified Installation

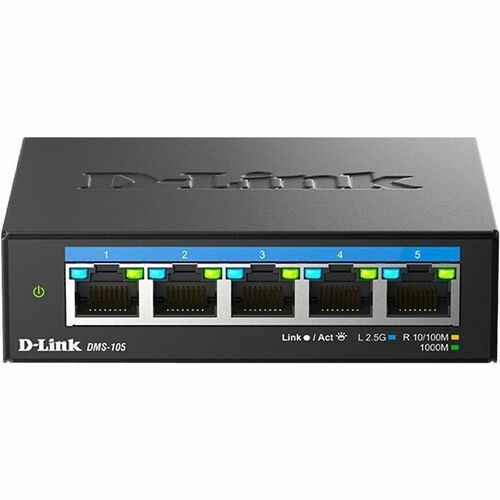

All of the ports on the DMS-105 switch supports automatic MDI/MDIX crossover, eliminating the need for crossover cables. Each port can be plugged in directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DMS-105 switch features multiple front, easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5.0 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | No |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5.0 |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet Network Port |
| Miscellaneous | |
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |

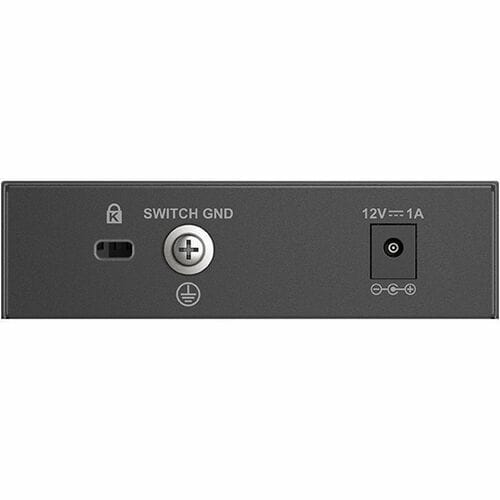

| Input Voltage | 12 V |
| Power Source | Power Adapter |
| Power Consumption | 4.92 W |
| Media & Performance | |
| Network Technology | 2.5GBase-T |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 2.5 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Weight (Approximate) | 8.42 oz (238.6 g) |
| Height | 1.10" (28 mm) |
| Width | 3.23" (82 mm) |
| Depth | 3.96" (100.50 mm) |
| Product Material | Metal |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DMS105 |
| Manufacturer Website Address | http://www.dlink.com |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DMS-105 |
| Product Name | 5-Port Multi-Gigabit Unmanaged Switch |
| Brand Name | D-Link |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.3u | |
| IEEE 802.3bz | |
| IEEE 802.3az | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| IEEE 802.1p |
