Acerca del producto

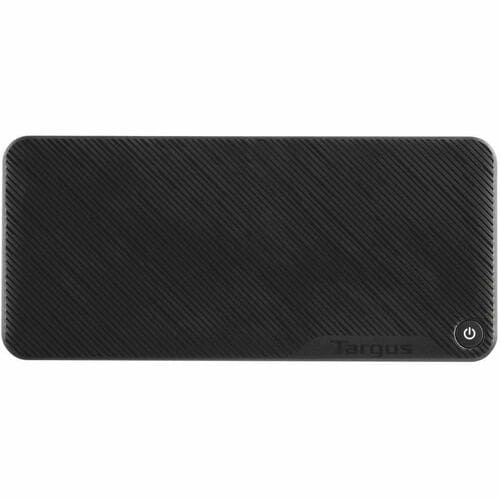

Create a more powerful, productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, DOCK430 offers broad compatibility for a range of hosts, devices and peripherals.
Enjoy crisp, clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port, you're able to support three monitors (1920x1080 p60), two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports.
Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two DisplayPort™ and One HDMI Monitor
Access the latest display technology with two DisplayPort™ and HDMI ports that creates a rich, high-definition viewing experience. The USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode - and even 1920x1080 p60 with three monitors.
Enhanced Power Delivery
The USB-C™ DisplayPort™ Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5, 9, 12, 15, and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC, MacBook, Chromebook, and even popular Android phones.
Onboard USB 3.0 for Advanced Peripherals and Charging
Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards, external drives, and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone, tablet, or other devices powered up and ready to go.
What's in the Box
- User Guide (part #410-3897-001A)
- Dock
- Cable, Input US AC cable cord set , 3pins, 1.8M, C5 connector (part #511-0518-001A)
- USB C/M (screwed) to C/M (normal) Cable, Black; 1M, 5A, 10Gbps (part #ACC1121GLX)
- Adapter, AC to DC, output: 20V, 6.75A, 135W (part #800-0485-001A)

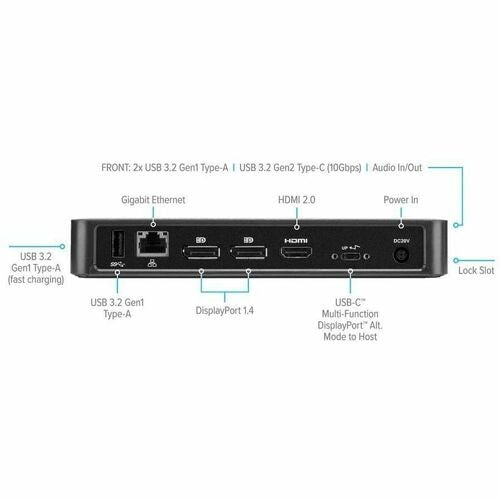

- Supports single 4K, dual 2K, or triple HD video via two DisplayPort™ 1.4 and one HDMI 2.0 monitor ports
- 5, 9, 12, 15, 20 VDC Power Delivery up to 85W
- 1 USB-C™ 3.2 Gen2 port (10Gbps)

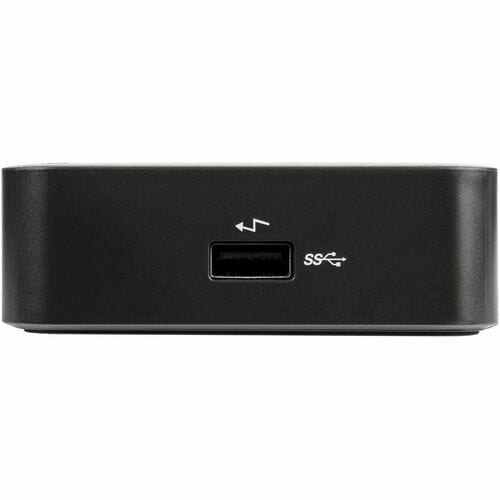

- 1 USB 3.2 Gen1 Type-A fast-charging port
- 3 USB 3.2 Gen1 Type-A ports
- 1 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out port for mics, speakers, and earphones

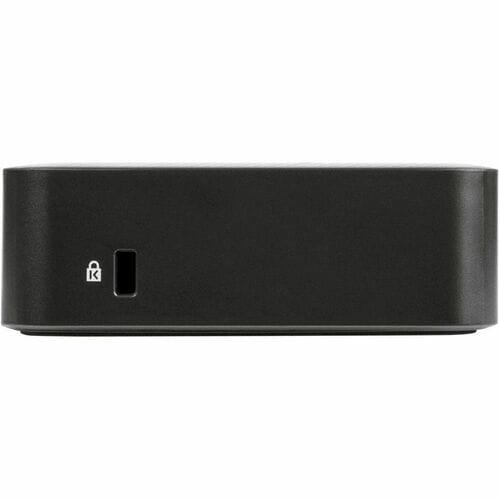

- Integrated lock slot accommodates standard security locks to safeguard equipment
- Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System Supported | macOS |
| ChromeOS | |
| Windows | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Kensington Security Slot | Yes |
| TAA Compliant | No |
| Physical Characteristics | |
| Weight (Approximate) | 10.08 oz (285.76 g) |
| Length | 7.10" (180.34 mm) |
| Height | 1.10" (27.94 mm) |
| Width | 3.25" (82.55 mm) |
| Product Color | Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | DOCK430USZ |
| Manufacturer Website Address | http://www.targus.com |
| Manufacturer | Targus Group International |
| Product Model | DOCK430USZ |
| Product Name | DOCK430USZ Docking Station |
| Brand Name | Targus |
| Technical Information | |
| Device Supported | Notebook/Tablet PC/Desktop PC/Smartphone/Monitor |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 1920 x 1080 |
| 2560 x 1440 | |
| 3840 x 2160 | |
| Screen Mode Supported | 4K |
| Full HD | |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| HDMI Version | 2.0 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 5 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C™ 3.2 Gen2 port (10Gbps) |
| Number of Mini DisplayPort | 0 |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 4 |
| USB Power Delivery | 85W |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| USB Type-A | Yes |
