Acerca del producto

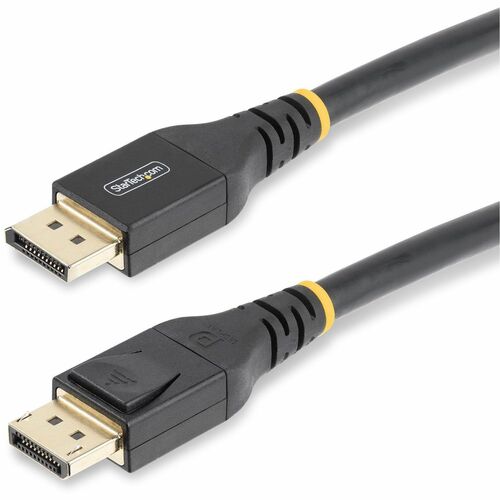

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 32.8ft (10m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.
VESA-Certified DP8K For seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2

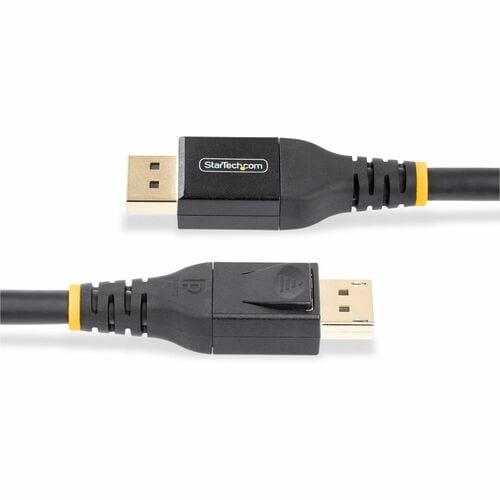

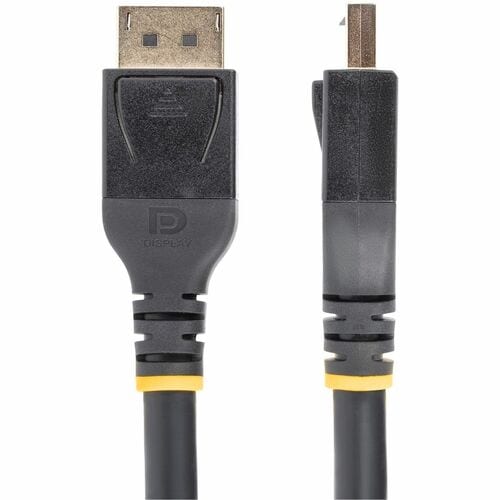

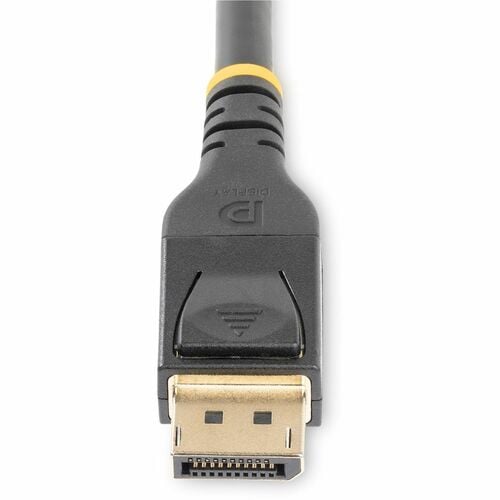

Durable Design This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.
Supported DisplayPort 1.4 Features: This 8K DisplayPort cable supports all DP 1.4 features:
Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
HDCP 2.2 support
High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
High Dynamic Range 10 (HDR10)
Display Stream Compression 1.2 (DSC 1.2)

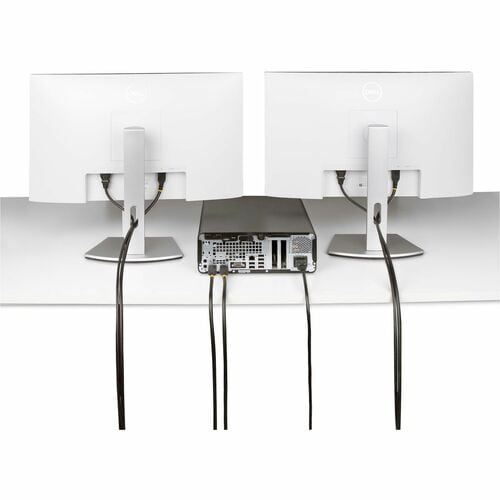

Multi-Stream Transport (MST) for daisy-chaining multiple monitors
32 Uncompressed Digital Audio Channels
Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

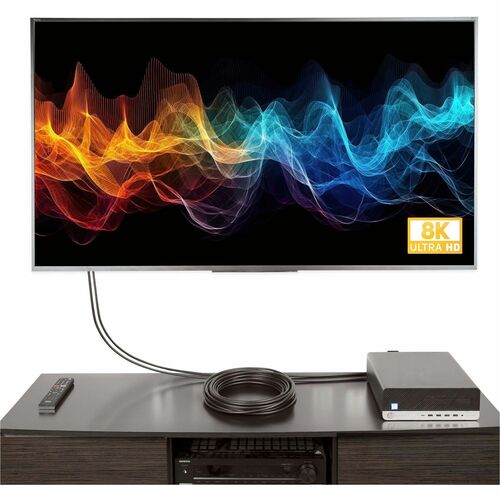

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.
- DESIGNED FOR LONG RANGE: 10m (32.8ft) Active DisplayPort 1.4 Cable delivers 8K video beyond the length of passive cables; Integrated self-powered signal booster enables consistent performance without the need for a DP booster or external power source
- THIRD PARTY CERTIFIED: The Active DP 1.4 Cable is VESA certified for seamless compatibility with DisplayPort devices and reliable performance over longer lengths; When using certified cables, full-feature DisplayPort compatibility is guaranteed
- DURABLE CONSTRUCTION: Latching gold-plated connectors with robust strain reliefs to prevent accidental disconnects; TPE outer cable jacket is flexible, non-toxic, halogen-free, and RoHS compliant; Shielded cable and connector for enhanced EMI protection
- VERSATILE INSTALLATION: This active DP 1.4 cable is unidirectional, with conveniently labeled connectors for source and display; 7.5mm Cable O.D. is identical to passive cables and improves flexibility; VW-1 Fire rated jacket enhances flame resistance
- SPECS: Black; 10m (32.8ft); Unidirectional cable; DP8K supports HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz, 4K 120Hz, 1440p 240Hz w/DSC; Backward Compatible w/ DP 1.3/1.2; Cable O.D.: 7.5mm; Gold-Plated Connectors; Rugged TPE Jacket w/Aluminum Mylar Shield
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Material Details | Copper - Cable |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Shielding Material | Aluminum Mylar Foil |
| Product Color | Black |
| Color Family | Black |
| Product Material | Copper |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | DP14A10MDPCABLE |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort Audio/Video Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 33 ft (10.06 m) |
| Data Transfer Rate | 25.9 Gbit/s |
| Device Supported | Video Wall |
| Signal Booster | |
| Monitor | |
| Digital Signage Display | |
| Jacket Type | VW-1 |
| Shielding | Yes |
| Features | Wear Resistant |
| Tarnish Resistant | |
| Strain Relief | |
| Rugged | |
| Multi-Stream Transport (MST) Support | |
| Latching Connector | |
| HDCP 2.2 | |
| Halogen Free | |
| Flexible | |
| Flame Resistant | |
| EMI Protection | |
| Display Stream Compression (DSC) 1.2 | |
| Bendable | |
| Active | |
| HDR10 Support | |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 24/28 AWG |
| Supported Resolution | 7680 x 4320 |
| Connector on First End Details | 1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
