Acerca del producto
Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this DisplayPort 2.1 DP40 Cable.
Seamless Compatibility
For seamless operation and compatibility between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is ideal for guaranteed DP 2.1 performance and backward compatibility with DP 2.0/1.3/1.2
Durable Design

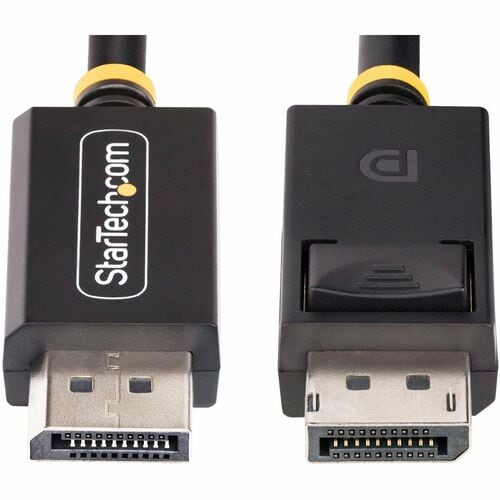

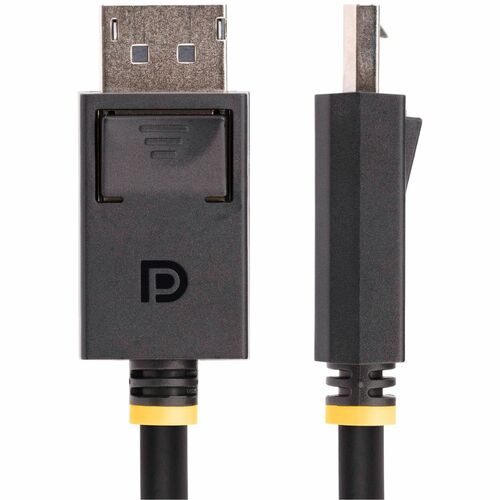

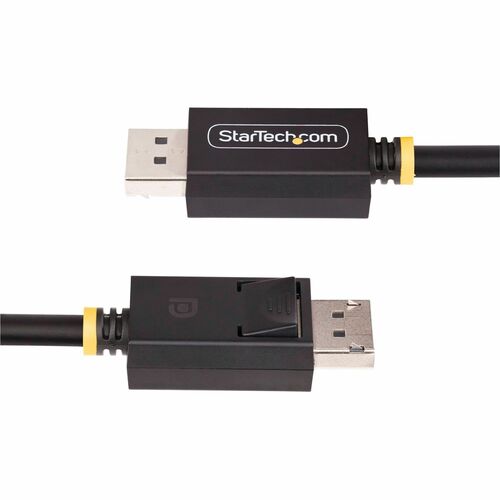

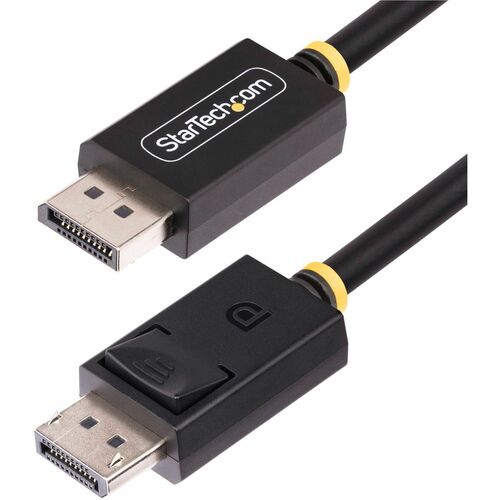

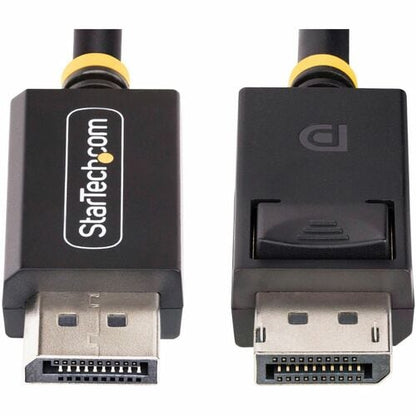

This DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bending for convenient positioning of the cable. The latching nickel-plated DP connectors attach securely to prevent accidental disconnection, and are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:
- Resolutions up to 8K 60Hz w/DSC using a compatible DP source and display
- UHBR10 supports higher refresh rates including 4K 120Hz and 1440p 240Hz
- High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
- High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
- Display Stream Compression (DSC 1.2a) for maximum resolution output
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- 32 Uncompressed Digital Audio Channels
- Backward compatible with previous DP versions
The DP 2.1 Cable is constructed with braided aluminum shielding to minimize EMI for clear and reliable audio/video output. This cable is designed for long-term reliability and is the ideal solution for setting up 8K workstations, GPUs, and docking stations.
- HIGH PERFORMANCE: DP 2.1 Cable is designed for UHBR10-enabled DisplayPort devices; DP40 supports 40Gbps for 8K 60Hz video and higher refresh rates at lower resolutions; Flexible TPE jacket routes well in tight spaces and withstands up to 120-degree bends
- FULL DP COMPATIBILITY: The DP 2.1 Cable enables seamless compatibility with DisplayPort devices; Full-featured DP 2.1 performance and backward compatibility with DP 2.0/1.4/1.2 are guaranteed
- QUALITY CONSTRUCTION: Nickel-plated ends rated beyond 10,000 insertions; Latching DP connectors w/strain reliefs prevent accidental disconnection; Braided aluminum shield for enhanced EMI protection; TPE jacket is durable, halogen-free, and RoHS compliant
- VERSATILE PERFORMANCE: DisplayPort 2.1 DP40 supports 40Gbps across four UHBR10 (10Gbps) lanes to enable consistent high throughput; Ideal for 8K displays, high performance GPUs, MST multi-monitor daisy chains, and docking stations; Supports 32-ch audio
- SPECS: Black; 10-foot (3-meter); DisplayPort 2.1 supports UHBR10/HDR/MST/DSC 1.2/HDCP 2.2; DP40 (40Gbps); 8K 60Hz/DSC, 4K 120Hz, 1440p 240Hz; 32-ch Audio; Compatible w/DP 2.0/1.4/1.2; Latching DP Connectors; 30AWG; 8.2mm (0.32in) O.D.
Especificaciones técnicas
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | DP21-10F-DP40-CABLE |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort Audio/Video Cable |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Material Details | Copper - Cable |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Shielding Material | Aluminum Mylar Foil |
| Braided Aluminum | |
| Product Color | Black |
| Color Family | Black |
| Product Material | ABS |
| Copper | |
| Technical Information | |
| Cable Length | 10 ft |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | External GPU |
| Hub | |
| Monitor | |
| Workstation | |
| Computer | |
| Audio/Video Device | |
| Docking Station | |
| Display | |
| Jacket Type | VW-1 |
| Shielding | Yes |
| Features | Wear Resistant |
| Strain Relief | |
| Multi-Stream Transport (MST) Support | |
| Passive | |
| Latching Connector | |
| HDR10 Support | |
| HDR Support | |
| HDCP 2.2 | |
| Halogen Free | |
| Flexible | |
| EMI Protection | |
| Durable | |
| Display Stream Compression (DSC) 1.2a | |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 7680 x 4320 |
| Connector on First End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
