Acerca del producto

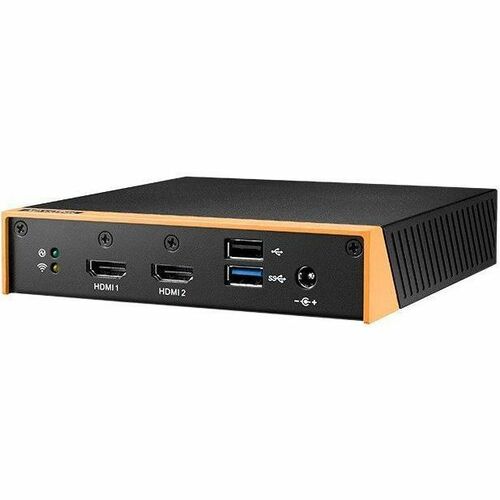

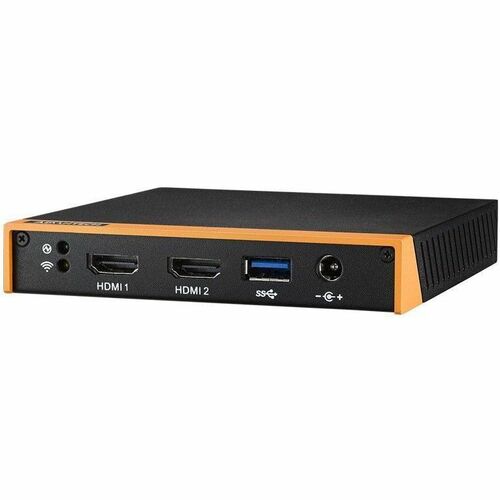

DS-100 is an ultra-compact signage player in the smallest possible palm size for optimized graphics experience. It's powered by the latest ARM dual-core Cortex-A72 and quad-core Cortex-A53 processor, low power but not giving in to performance. It's on the cutting edge in terms of the display capability among Android signage players to enable dual HDMI outputs, maximum resolution up to UHD 4K 60Hz + FHD 1080P
With dual LAN to enable interconnectivity, DS-100 simplifies deployment, maintenance, and management of remote devices. Design with 4K graphics, as well as connectivity and manageability, DS-100 is your ideal digital signage player for retail, QSR application in the IoT era.
Especificaciones técnicas
| Display & Graphics | |
| Graphics Controller Model | Mali-T860MP4 |
| Network & Communication | |
| Ethernet | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Software | |
| Operating System | Android 7.1.2 Nougat |
| Video | |
| Scan Format | 2160p |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | LPDDR3 |
| Miscellaneous | |
| Application/Usage | Retail |
| Package Contents |
|
| Physical Characteristics | |
| Weight (Approximate) | 1.61 lb (730 g) |
| Mount Type | Wall Mountable |
| Height | 1.14" (29 mm) |
| Width | 5.31" (135 mm) |
| Depth | 5.12" (130 mm) |
| Processor & Chipset | |
| Processor Type | Cortex A72 |
| Processor Core | Dual-core (2 Core) |
| 2nd Processor Type | Cortex A53 |
| 2nd Processor Core | Quad-core (4 Core) |
| Combined Processor Core | Hexa-core |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Outputs | 2 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Maximum Operating Humidity | 95% |
| Minimum Storage Humidity | 5% |
| Maximum Storage Humidity | 80% |
| General Information | |
| Product Type | Digital Signage Appliance |
| Manufacturer Part Number | DS100GFS8A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | DS-100 |
| Product Name | DS-100 Digital Signage Appliance |
| Brand Name | Advantech |
