Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

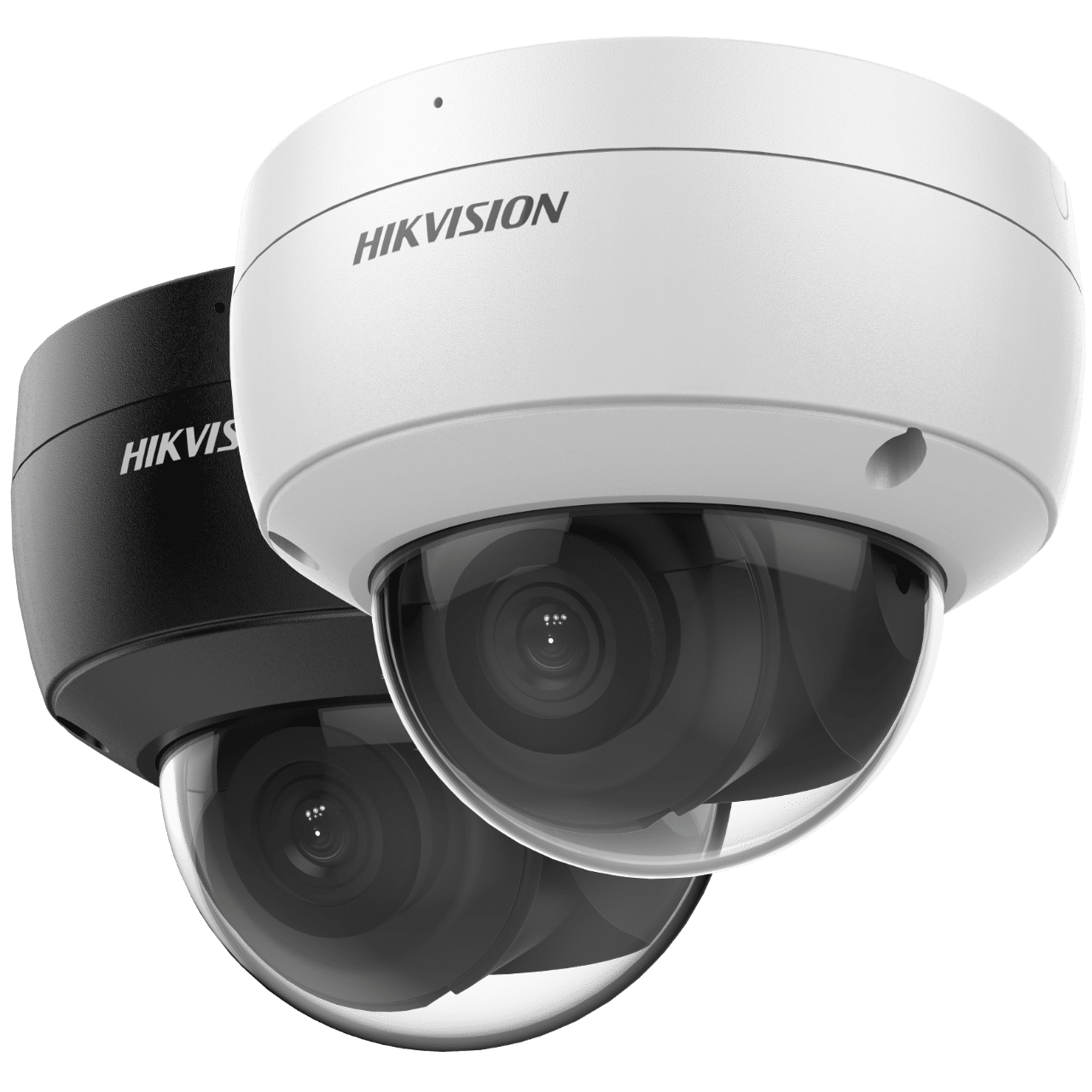

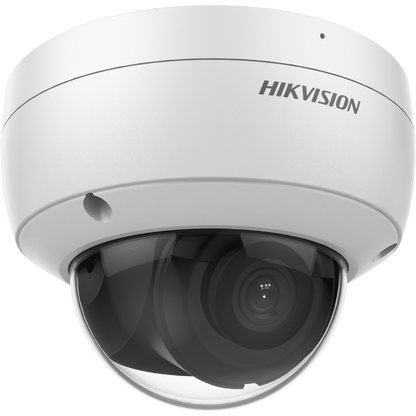

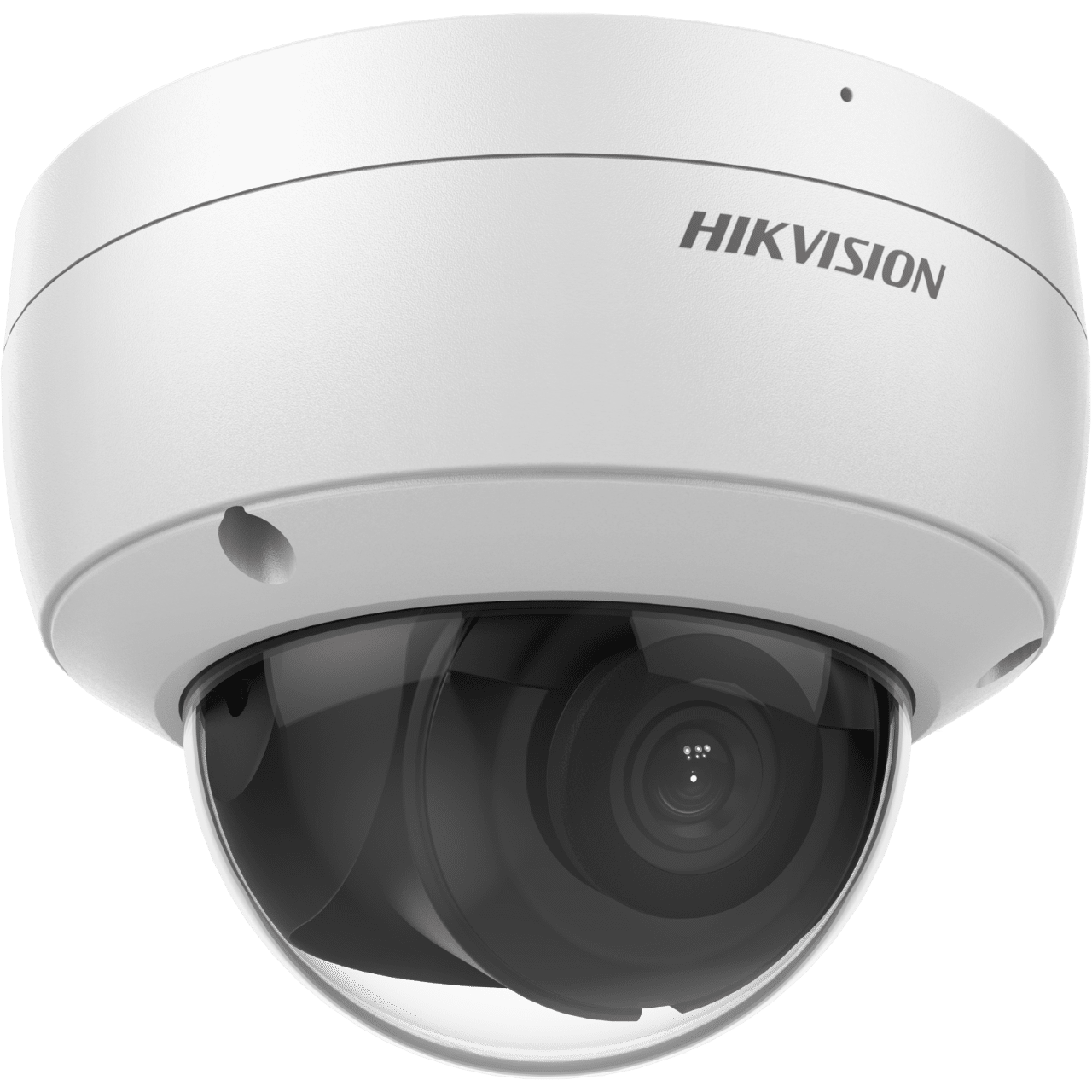

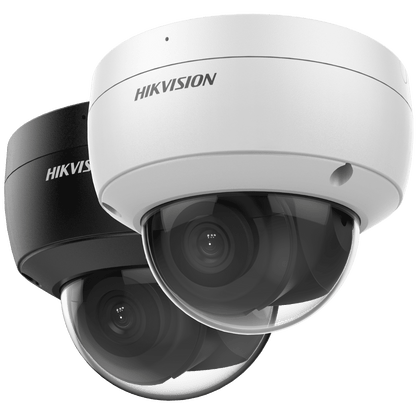

Hikvision IP Network AcuSense Dome Camera, 4MP, IR, IP67, IK10, 4mm Features:
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
Hikvision IP Network AcuSense Dome Camera, 4MP, IR, IP67, IK10, 4mm Specifications:
- Camera:
- Image Sensor 1/3"" Progressive Scan CMOS
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- P/N P/N
- Wide Dynamic Range 120 dB
- Day & Night ICR Cut
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens:
- Lens Type & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Aperture F1.6
- Lens Mount M12
- Dori:
- DORI 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
- Illuminator:
- IR Range Up to 30 m
- Wavelength 850 nm
- Video:
- Max. Resolution 2688 × 1520
- Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main Stream supports
- H.265+ Main Stream supports
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) Yes
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Audio:
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AACLC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
- Network:
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
- Image:
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Parameters Switch Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface:
- Built-in Microphone Yes
- On-board Storage Built-in microSD, up to 512 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event:
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Face Detection: Yes
- Deep Learning Functions:
- Perimeter Protection Line crossing detection, intrusion detection Supports human and vehicle targets classification
- General:
- Linkage Method Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
- Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
- Power Consumption and Current 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
- Power Interface Ø 5.5 mm coaxial power plug
- Material: Aluminum alloy body Bubble: plastic
- Camera Dimension Ø121.4 × 92.2 mm (Ø4.8? × 3.7?)
- Package Dimension 150 × 150 × 141 mm (5.9? × 5.9? × 5.6?)
- Camera Weight Approx. 570 g (1.3 lb.)
- With Package Weight Approx. 806 g (1.8 lb.)
- Approval:
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
