Acerca del producto

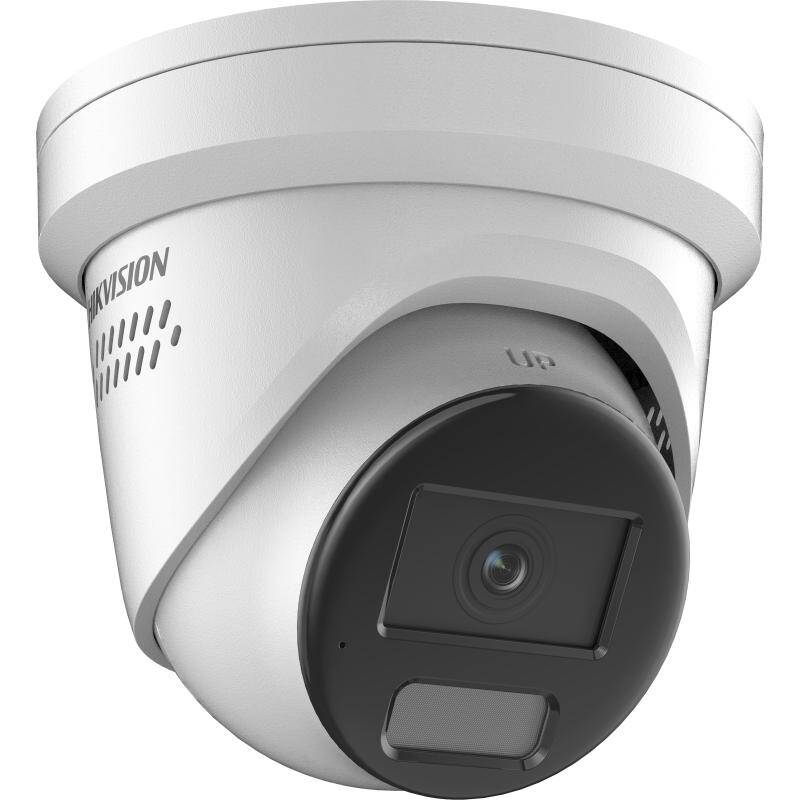

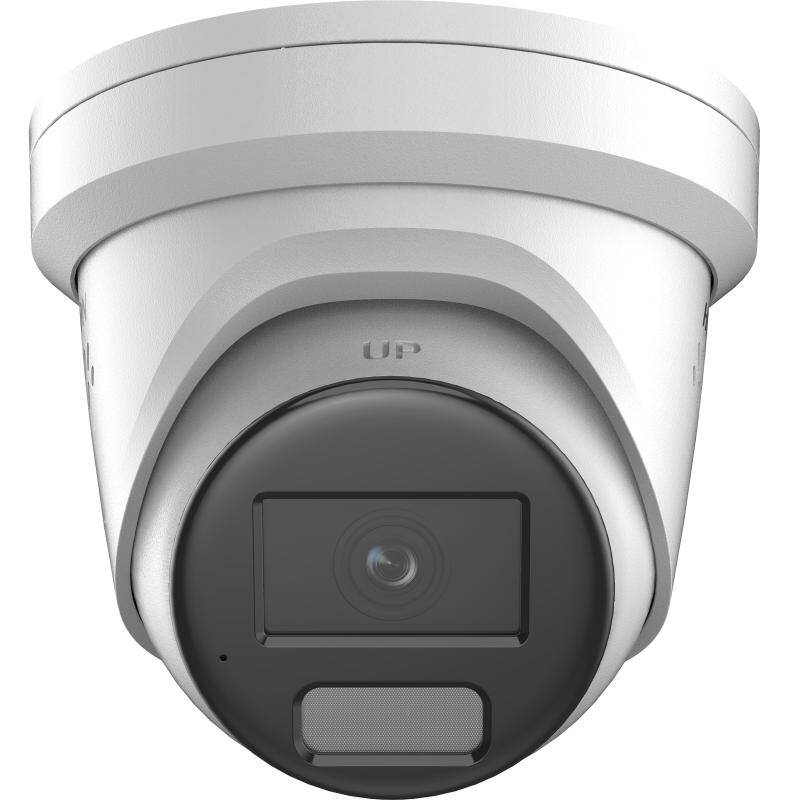

The Hikvision 4MP Smart Hybrid Light ColorVu Turret Camera is a smart frontline network security camera equipped with extended hybrid lighting for long-range surveillance paired with Hikvision’s ColorVu technology; rendering entire areas with clear, full-colour HD video—even in low-to-no light conditions. IP67 water and dust resistance ensures year-round operation for outdoor installation.
Built-in Active Deterrence strobe lighting and audio alarm acts as frontline deterrence for trespassers and unwanted intruders. Active two-way audio provides real-time security—allowing users and operators to speak directly to subjects within range, or play back a pre-recorded warning for an added layer of automated security. On-board storage up to 512 GB allows for optional camera backups.
Deep learning and human/vehicle classification allows for both manual and automatic surveillance options, preventing nuisance alarms or unwanted recording events from triggering from debris or wild animals. Clear 130 db WDR technology ensures picture-perfect brightness, accuracy and colour-rendering from any lighting situation: broad daylight, cloudy days, and even pitch-black nights.
Built-in alarm output (max. 24 VDC/24 VAC, 1 A) allows for deeper integration into security systems, and PoE or optional AC power (not included) ensures flexible and variable levels of hardware security for scalable installations.
DS-2CD2347G2H-LISU/SL(2.8MM) Specs and Features
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8mm
- Focal Length & FOV: 2.8 mm,
- Horizontal FOV 111.1°
- Vertical FOV 57.6°
- Diagonal FOV 138.5°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 2.5 m to ?
- DORI: D: 61 m, O: 24 m, R: 12 m, I: 6 m
- Supplement Light Type: IR, White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video:
- Main Stream: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: H.265/H.264/H.264+/H.265+/ MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Type: Mono sound
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client: iVMS-4200, Hik-Connect
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR, Defog
- SNR: ? 52 dB
- Wide Dynamic Range (WDR): 130 dB
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes, 1 built-in microphone
- Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure level @ 10 cm: 95 dB
- Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key: Yes
- Event:
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light
- Smart Event: Scene change detection
- Face Capture: Yes
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
- Supports alarm triggering by specified target types (human and vehicle)
- Power: 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
- Cover material: metal, main body: metal
- Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4"" × 4.5"")
- Weight: Approx. 820 g (1.8 lb.)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU
- Protection: IP67: IEC 60529-2013
Especificaciones técnicas
The Hikvision 4MP Smart Hybrid Light ColorVu Turret Camera is a smart frontline network security camera equipped with extended hybrid lighting for long-range surveillance paired with Hikvision’s ColorVu technology; rendering entire areas with clear, full-colour HD video—even in low-to-no light conditions. IP67 water and dust resistance ensures year-round operation for outdoor installation.
Built-in Active Deterrence strobe lighting and audio alarm acts as frontline deterrence for trespassers and unwanted intruders. Active two-way audio provides real-time security—allowing users and operators to speak directly to subjects within range, or play back a pre-recorded warning for an added layer of automated security. On-board storage up to 512 GB allows for optional camera backups.
Deep learning and human/vehicle classification allows for both manual and automatic surveillance options, preventing nuisance alarms or unwanted recording events from triggering from debris or wild animals. Clear 130 db WDR technology ensures picture-perfect brightness, accuracy and colour-rendering from any lighting situation: broad daylight, cloudy days, and even pitch-black nights.
Built-in alarm output (max. 24 VDC/24 VAC, 1 A) allows for deeper integration into security systems, and PoE or optional AC power (not included) ensures flexible and variable levels of hardware security for scalable installations.
DS-2CD2347G2H-LISU/SL(2.8MM) Specs and Features
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8mm
- Focal Length & FOV: 2.8 mm,
- Horizontal FOV 111.1°
- Vertical FOV 57.6°
- Diagonal FOV 138.5°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 2.5 m to ?
- DORI: D: 61 m, O: 24 m, R: 12 m, I: 6 m
- Supplement Light Type: IR, White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video:
- Main Stream: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: H.265/H.264/H.264+/H.265+/ MJPEG
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Type: Mono sound
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client: iVMS-4200, Hik-Connect
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR, Defog
- SNR: ? 52 dB
- Wide Dynamic Range (WDR): 130 dB
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes, 1 built-in microphone
- Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure level @ 10 cm: 95 dB
- Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key: Yes
- Event:
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light
- Smart Event: Scene change detection
- Face Capture: Yes
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
- Supports alarm triggering by specified target types (human and vehicle)
- Power: 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
- Cover material: metal, main body: metal
- Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4"" × 4.5"")
- Weight: Approx. 820 g (1.8 lb.)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU
- Protection: IP67: IEC 60529-2013
