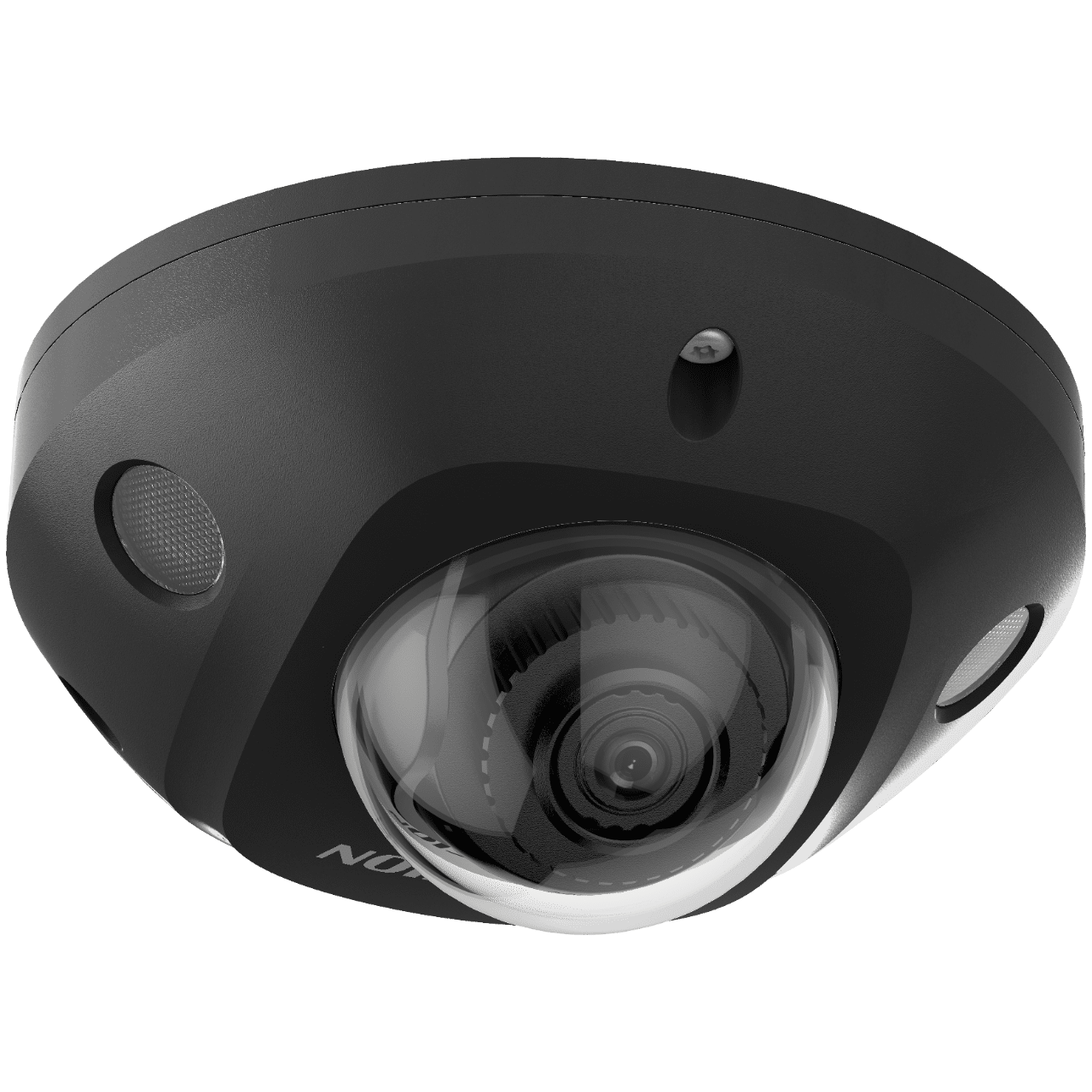

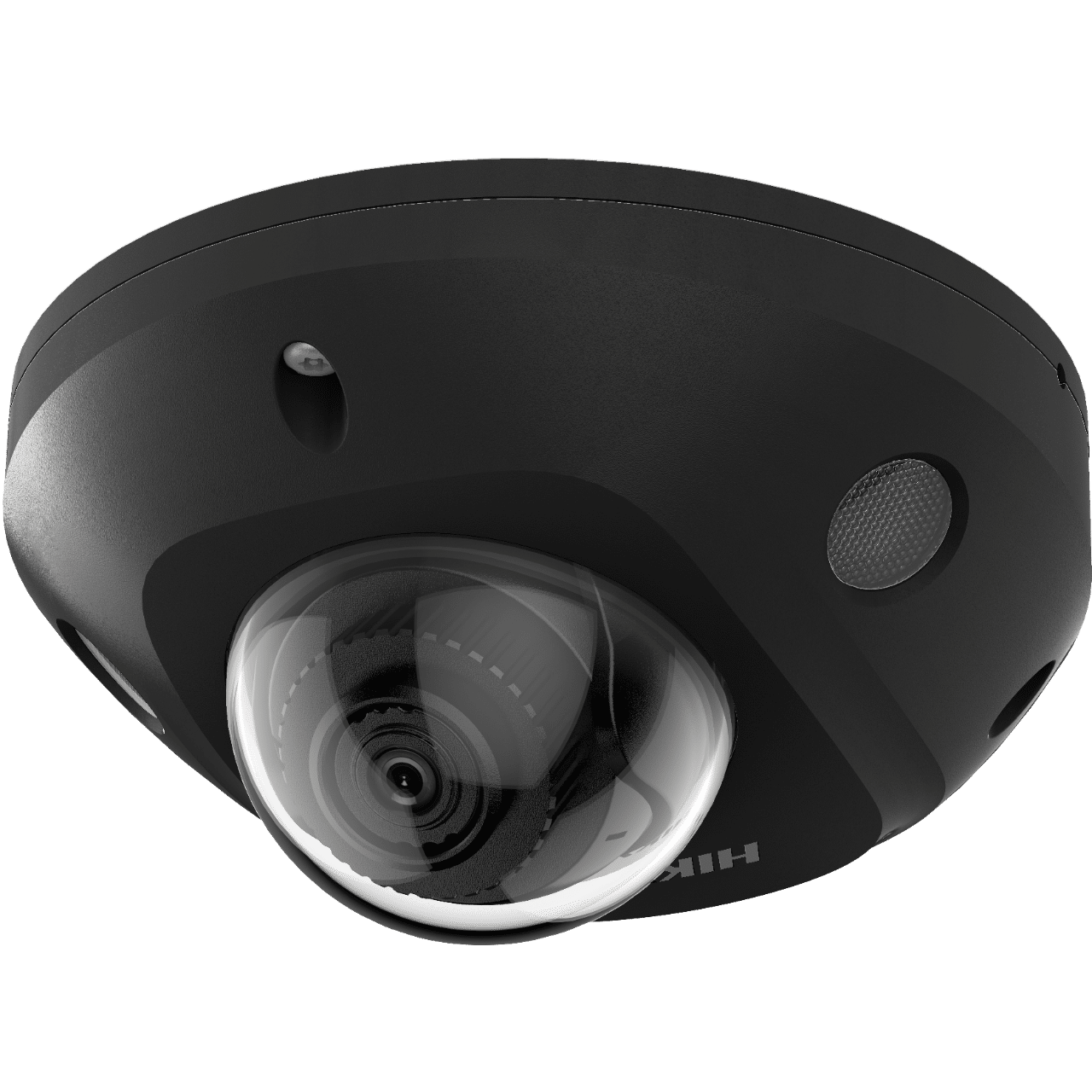

Cámara minidomo de red IP AcuSense de Hikvision, micrófono, IK08, 4 MP, 2,8 mm, negra (DS-2CD2543G2-ISB-2.8MM)

Name: Cámara minidomo de red IP AcuSense de Hikvision, micrófono, IK08, 4 MP, 2,8 mm, negra (DS-2CD2543G2-ISB-2.8MM)
Brand: Hikvision
SKU: AT425808
Price: 255.99 CAD
Availability: InStock

$255.99 CAD

~~$286.99 CAD~~ $255.99 CAD

-10% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cámara minidomo de red IP AcuSense de Hikvision, micrófono, IK08, 4 MP, 2,8 mm, negra (DS-2CD2543G2-ISB-2.8MM)

VPN: DS-2CD2543G2-ISB-2.8MM SKU: AT425808 UPC: 842571140491

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Cámara minidomo de red IP AcuSense de Hikvision, micrófono, IK08, 4 MP, 2,8 mm, negra (DS-2CD2543G2-ISB-2.8MM)

Acerca del producto

Hikvision IP Network Mini Dome AcuSense Camera, Mic, IK08, 4MP, 2.8mm, Black

4 MP AcuSense Fixed Mini Dome Camera Features

High-quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
-S: audio and alarm interface available
-W: Realizing Wi-Fi connection and easy installation
Water and dust resistant (IP67) and vandal resistant (IK08)

4 MP AcuSense Fixed Mini Dome Camera Specifications

Camera
- Image Sensor: 1/3"" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV:
  - 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
  - 4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- Depth Of Field:
  - 2.8 mm: 1.4 m to ?
  - 4 mm: 1.6 m to ?
DORI
- 2.8 mm
  - D: 64 m; O: 25 m; R: 13 m; I: 6 m
- 4 mm:
  - D: 85 m; O: 34 m; R: 17 m; I: 9 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream:
  - 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  - 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream:
  - 50 Hz: 25 fps (640 × 480, 640 × 360)
  - 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream:
  - 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  - 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  - *The Third stream is supported under certain settings.
- Video Compression
  - Main stream: H.265/H.264/H.265+/H.264+
  - Sub-stream: H.265/H.264/MJPEG
  - Third stream: H.265/H.264
  - *The Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for mainstream and sub-stream
Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS, 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser:
  - Plug-in required live view: IE 10, IE 11
  - Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  - Local service: Chrome 57.0+, Firefox 52.0+
Wi-Fi
- Encryption Mode: -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
- Wi-Fi Protocol:
  - -W: 802.11b: CCK, QPSK, BPSK
  - 802.11g/n: OFDM
- Frequency Range: -W: 2.4 GHz to 2.4835 GHz
- Channel Bandwidth: -W: 20/40 MHz
- Modulation: -W:
  - 802.11b: CCK, QPSK, BPSK
  - 802.11g/n: OFDM
- Transfer Rate: -W:
  - 802.11b: 11 Mbps
  - 802.11g: 54 Mbps
  - 802.11n: up to 300 Mbps
- Wireless Range
  - -W: Up to 80 m (The performance varies based on the actual environment)
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ? 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone: Yes
- Audio: -IS/IWS:
  - 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium
  - 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: -IS/IWS:
  - 1 input, 1 output (max. 12 VDC, 20 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event:
  - Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
  - Face detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
General
- Power:
  - -IS:
    - 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    - PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
  - -IWS:
    - 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    - PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
- Dimension: Ø110 mm × 57.4 mm (Ø 4.3"" × 2.3"")
- Package Dimension:
  - 134 mm × 134 mm × 108 mm (5.3"" × 5.3"" × 4.3"")
  - Approx. 380 g (0.8 lb.)
- With Package Weight: Approx. 615 g (1.4 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages
  - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
Approval
- RF: -W:
  - FCC ID (FCC Part 15.247(BT or 2.4G));
  - CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
- EMC:
  - FCC (47 CFR Part 15, Subpart B)
  - CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
  - RCM (AS/NZS CISPR 32: 2015)
  - IC (ICES-003: Issue 7)
  - KC (KN32: 2015, KN35: 2015)
- Safety:
  - UL (UL 62368-1)
  - CB (IEC 62368-1: 2014+A11)
  - CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment
  - CE-RoHS (2011/65/EU)
  - WEEE (2012/19/EU)
  - Reach (Regulation (EC) No 1907/2006)
- Protection
  - IP67 (IEC 60529-2013)
  - IK8 (IEC 62262:2002)

Especificaciones técnicas

Hikvision IP Network Mini Dome AcuSense Camera, Mic, IK08, 4MP, 2.8mm, Black

4 MP AcuSense Fixed Mini Dome Camera Features

High-quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
-S: audio and alarm interface available
-W: Realizing Wi-Fi connection and easy installation
Water and dust resistant (IP67) and vandal resistant (IK08)

4 MP AcuSense Fixed Mini Dome Camera Specifications

Camera
- Image Sensor: 1/3"" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV:
  - 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
  - 4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- Depth Of Field:
  - 2.8 mm: 1.4 m to ?
  - 4 mm: 1.6 m to ?
DORI
- 2.8 mm
  - D: 64 m; O: 25 m; R: 13 m; I: 6 m
- 4 mm:
  - D: 85 m; O: 34 m; R: 17 m; I: 9 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream:
  - 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  - 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream:
  - 50 Hz: 25 fps (640 × 480, 640 × 360)
  - 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream:
  - 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  - 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  - *The Third stream is supported under certain settings.
- Video Compression
  - Main stream: H.265/H.264/H.265+/H.264+
  - Sub-stream: H.265/H.264/MJPEG
  - Third stream: H.265/H.264
  - *The Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for mainstream and sub-stream
Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS, 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser:
  - Plug-in required live view: IE 10, IE 11
  - Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  - Local service: Chrome 57.0+, Firefox 52.0+
Wi-Fi
- Encryption Mode: -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
- Wi-Fi Protocol:
  - -W: 802.11b: CCK, QPSK, BPSK
  - 802.11g/n: OFDM
- Frequency Range: -W: 2.4 GHz to 2.4835 GHz
- Channel Bandwidth: -W: 20/40 MHz
- Modulation: -W:
  - 802.11b: CCK, QPSK, BPSK
  - 802.11g/n: OFDM
- Transfer Rate: -W:
  - 802.11b: 11 Mbps
  - 802.11g: 54 Mbps
  - 802.11n: up to 300 Mbps
- Wireless Range
  - -W: Up to 80 m (The performance varies based on the actual environment)
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ? 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone: Yes
- Audio: -IS/IWS:
  - 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium
  - 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: -IS/IWS:
  - 1 input, 1 output (max. 12 VDC, 20 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event:
  - Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
  - Face detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
General
- Power:
  - -IS:
    - 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    - PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
  - -IWS:
    - 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    - PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
- Dimension: Ø110 mm × 57.4 mm (Ø 4.3"" × 2.3"")
- Package Dimension:
  - 134 mm × 134 mm × 108 mm (5.3"" × 5.3"" × 4.3"")
  - Approx. 380 g (0.8 lb.)
- With Package Weight: Approx. 615 g (1.4 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages
  - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
Approval
- RF: -W:
  - FCC ID (FCC Part 15.247(BT or 2.4G));
  - CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
- EMC:
  - FCC (47 CFR Part 15, Subpart B)
  - CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
  - RCM (AS/NZS CISPR 32: 2015)
  - IC (ICES-003: Issue 7)
  - KC (KN32: 2015, KN35: 2015)
- Safety:
  - UL (UL 62368-1)
  - CB (IEC 62368-1: 2014+A11)
  - CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment
  - CE-RoHS (2011/65/EU)
  - WEEE (2012/19/EU)
  - Reach (Regulation (EC) No 1907/2006)
- Protection
  - IP67 (IEC 60529-2013)
  - IK8 (IEC 62262:2002)

Comparación de productos

Garantía del producto

Garantía estándar del fabricante según corresponda

Política de devoluciones

Políticas

Garantía de precio

!00% siempre estamos por debajo del precio del mercado.

Explora colecciones de marca

Colecciones
