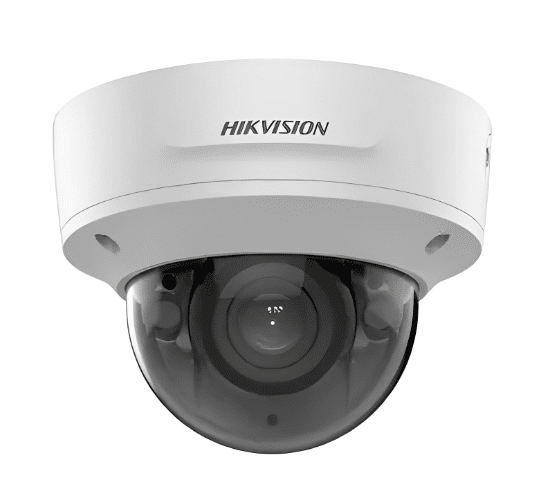

Hikvision DS-2CD2743G2-IZS AcuSense Outdoor Dome, 4MP, 2.8-12mm is a Motorized Zoom Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Hikvision DS-2CD2743G2-IZS AcuSense Outdoor Dome, 4MP Features:
- High-quality imaging with 4 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Focus on human and vehicle targets classification based on deep learning
Hikvision DS-2CD2743G2-IZS AcuSense Outdoor Dome, 4MP Specifications:
Camera
- Image Sensor: 1/3? Progressive Scan CMOS
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- P/N: P/N
- Wide Dynamic Range: 120 dB
- Day & Night: ICR Cut
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Lens Type & FOV: 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° Aperture: F1.6
- Lens Mount: Ø 14
DORI
- DORI: 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
Illuminator
- IR Range: Up to 40 m
- Wavelength: 850 nm
Video
- Max. Resolution: 2688 × 1520
- Main Stream: 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile H.264+ Main Stream supports H.265+: Main Stream supports
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): Yes
- Region of Interest (ROI): 1 fixed region for mainstream and sub-stream
Audio
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AACLC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
Network
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
General
- Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
- Power Consumption and Current: 12 VDC, 0.88 A, max. 10.5 W PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W Power Interface Ø 5.5 mm coaxial power plug
- Material: Upper cover and base: metal Bubble: plastic Camera Dimension: Ø153.3 × 111.6 mm (Ø6.1? × 4.4?) Package Dimension: 244 × 174 × 173 mm (9.7"" × 6.9"" × 6.9"") Camera Weight: Approx. 880 g (1.9 lb.)
- Package Weight: Approx. 1419 g (3.1 lb.)
