Acerca del producto
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high-performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

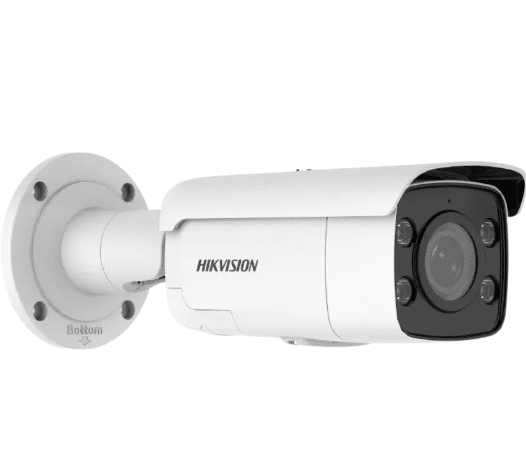

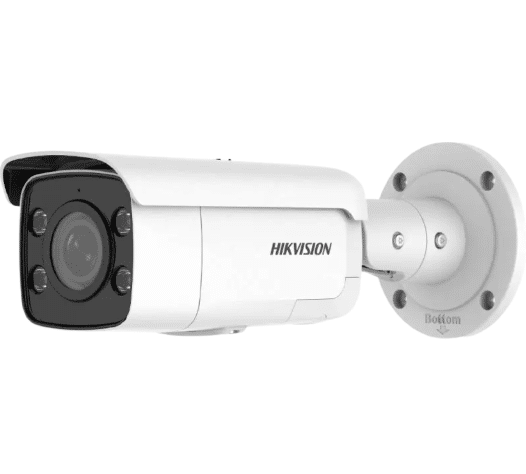

Hikvision DS-2CD2T87G2-LSU/SL ColorVu AcuSense Outdoor IP Bullet Features:
- High-quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Audio and alarm interface available
- Water and dust resistant (IP67)
Hikvision DS-2CD2T87G2-LSU/SL ColorVu AcuSense Outdoor IP Bullet Specifications:
Camera:
- Image Sensor: 1/1.2"" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: 1/3 s to 1/100,000 s
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Day & Night: 24/7 color imaging
Lens:
- Lens Type: Fixed focal lens, 2.8, 4, 6 mm optional
- Focal Length & FOV:
- 2.8 mm: horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
- 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
- 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
- Iris Type: Fixed
- Lens Mount: M mount
- Aperture: F1.0
- Depth of Field:
- 2.8 mm: 4.5 m to ?
- 4 mm: 7 m to ?
- 6 mm: 13 m to ?
Illuminator:
- Supplement Light Type: White Light
- Supplement Light Range: 60 m
- Smart Supplement Light: Yes
Video:
- Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160)
- 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream:
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream:
- 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
- Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): Yes
Network:
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image:
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- SNR: ? 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 4 regions of privacy mask
Interface:
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
- Reset Key: Yes
- Built-in Microphone: Yes
- Built-in Speaker: 2 W, 10 cm: 97 dB
- Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
Event:
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
Linkage:
- Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
Deep Learning Function:
- Face Capture: Yes
General:
- Power:
- 12 VDC ± 25%, 0.84 A, max. 11.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.21 A
- Material: Front cover: metal, body: metal, bracket: metal
- Dimension: 289.9 mm × 93.5 mm × 91.2 mm (11.4"" × 3.7"" × 3.6"")
- Package Dimension: 386 × 156 × 155 mm (15.2"" × 6.1"" × 6.1"")
- Weight: Approx. 1255 g (2.6 lb.)
- With Package Weight: Approx. 1769 g (3.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
- Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian)
- General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approval:
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013)
Especificaciones técnicas
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high-performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
Hikvision DS-2CD2T87G2-LSU/SL ColorVu AcuSense Outdoor IP Bullet Features:
- High-quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Audio and alarm interface available
- Water and dust resistant (IP67)
Hikvision DS-2CD2T87G2-LSU/SL ColorVu AcuSense Outdoor IP Bullet Specifications:
Camera:
- Image Sensor: 1/1.2"" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: 1/3 s to 1/100,000 s
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Day & Night: 24/7 color imaging
Lens:
- Lens Type: Fixed focal lens, 2.8, 4, 6 mm optional
- Focal Length & FOV:
- 2.8 mm: horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
- 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
- 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
- Iris Type: Fixed
- Lens Mount: M mount
- Aperture: F1.0
- Depth of Field:
- 2.8 mm: 4.5 m to ?
- 4 mm: 7 m to ?
- 6 mm: 13 m to ?
Illuminator:
- Supplement Light Type: White Light
- Supplement Light Range: 60 m
- Smart Supplement Light: Yes
Video:
- Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160)
- 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream:
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream:
- 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
- Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): Yes
Network:
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image:
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130 dB
- SNR: ? 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 4 regions of privacy mask
Interface:
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB
- Reset Key: Yes
- Built-in Microphone: Yes
- Built-in Speaker: 2 W, 10 cm: 97 dB
- Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
Event:
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
Linkage:
- Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
Deep Learning Function:
- Face Capture: Yes
General:
- Power:
- 12 VDC ± 25%, 0.84 A, max. 11.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.21 A
- Material: Front cover: metal, body: metal, bracket: metal
- Dimension: 289.9 mm × 93.5 mm × 91.2 mm (11.4"" × 3.7"" × 3.6"")
- Package Dimension: 386 × 156 × 155 mm (15.2"" × 6.1"" × 6.1"")
- Weight: Approx. 1255 g (2.6 lb.)
- With Package Weight: Approx. 1769 g (3.7 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
- Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian)
- General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approval:
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013)
