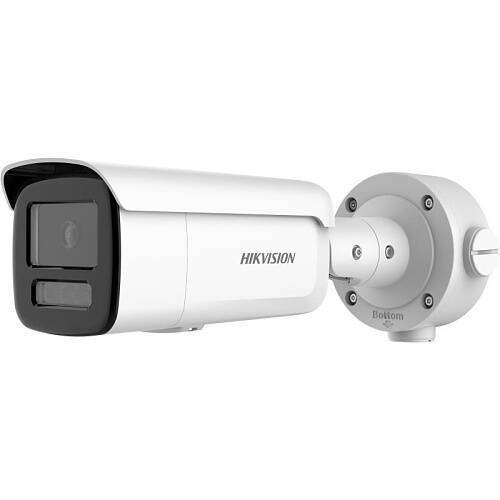

The Hikvision 4mm Ultra Series 8MP Dual Illumination Fixed Bullet Network Camera is a fixed-lens, 4mm bullet camera with Dual-Light high-range illumination for high-quality, long-range recording day or night. Featuring up to 8MP still resolution and up to 3840 × 2160 4K video resolution and clear imaging from 130 dB WDR technology—preventing images from blowing out in direct sunlight, and maintaining image detail in low-to-no light situations. Darkfighter technology uses an aspherical lens shape with improved light transmittance over traditional glass lenses—greatly enhancing image brightness at night. IP67 weather resistance prevents water ingress, and built-in audio provides real-time audio; paired with onboard smart analytics like human and vehicle classification, the Hikvision Ultra Series bullet camera is perfect for extremely high-resolution, uncompromising 24/7 recording—indoors or outdoors—no matter how challenging the conditions.
Hikvision Embedded Open Platform (HEOP) connectivity built into the camera allows for open-source and third party camera integrations—with 1.5 TOPS computing power, 40MB onboard memory, 350MB Smart RAM, and 2GB eMMC storage enables open development of deep learning structures and algorithms.
DS-2CD3T86G2H-LISU-4MM Specs and Features:
- Image Sensor: 1/1.8"" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- Lens Type: Fixed focal lens, 4 mm
- FOV
- Horizontal FOV 90.0°
- Vertical FOV 45.8°
- Diagonal FOV 109.4°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 3.8 m to ?
- DORI: 109 m, 43 m, 21 m, 10 m
- Smart Supplement Light: Yes
- Illuminator Supplement Light Type: IR, White Light
- Supplement Light Range: Up to 60 m
- IR Wavelength: 850 nm
- HEOP
- Open Resources: Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
- Computing Power: 1.5 TOPS
- Open Capability: HEOP 2.0 OpendevSDK
- Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
- Programming Language: C, C++
- Main Stream: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Fourth Stream: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Image/Video Compression: H.265/H.264/H.264+/H.265+, MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Type: Mono sound
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (ONVIF) (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client: iVMS-4200,Hik-Connect, Hik-Central
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes
Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium - Alarm: 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
- Reset Key: Yes
- Power Output: 12 VDC, max. 100 mA
- Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
- Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- Face Capture: Yes
- Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; supports alarm triggered by specified target types (human and vehicle)
- Power: 12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 10.5 W
- Material: Metal
- Dimensions: 325.7 mm × 93.3 mm × 91.2 mm (12.8"" × 3.7"" × 3.6"")
- Weight: Approx. 1100 g (2.4 lb.)
- General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
- Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F)
- Certifications
- Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU
- Protection IP67: IEC 60529-2013
