Acerca del producto

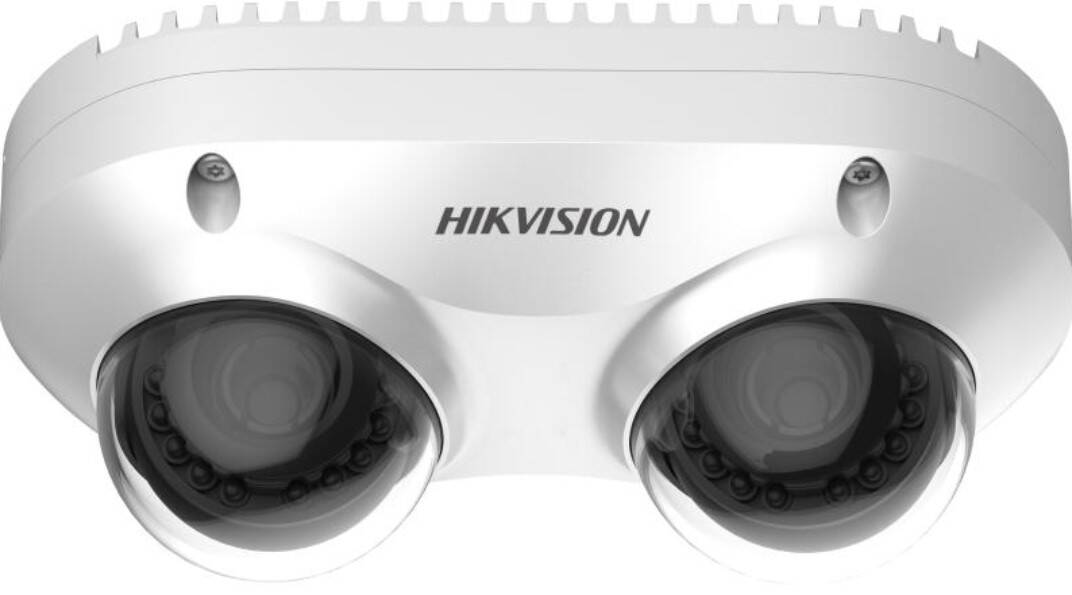

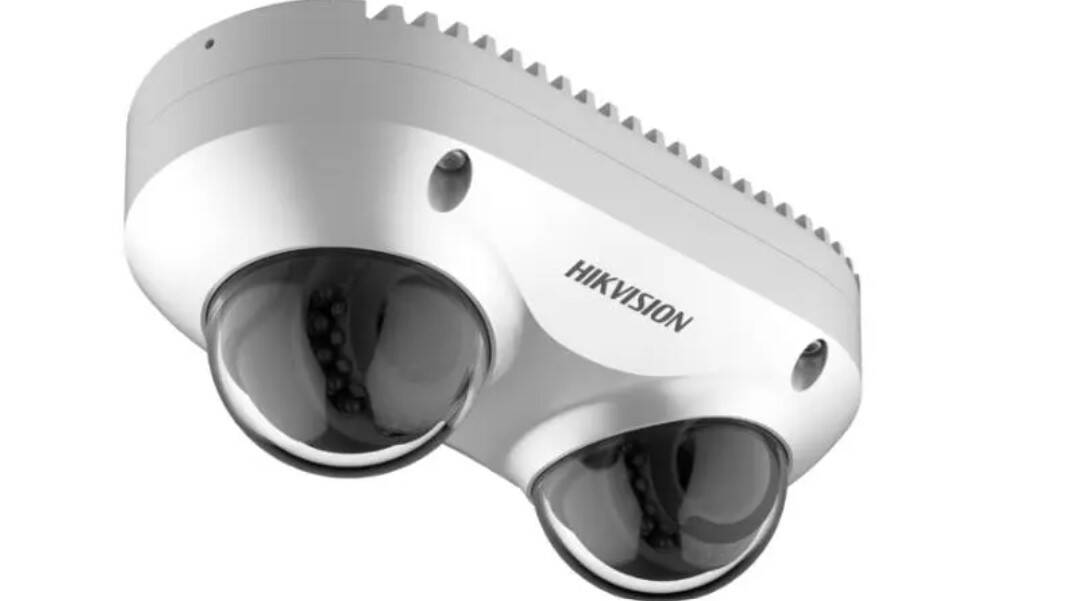

The Hikvision PanoVu DS-2CD6D52G0-IHS DualDirectional PanoVu Camera features a dual-lens design to capture two separate wide angle views.Other features include H.265+ video compression, audio I/O, an internal microSD memory card slot (up to 256 GB), and an IR range of up to 33 feet (10 meters).
Dual-Directional Multi-Sensor PanoVu Camera Features:
- Minimum Illumination Color: 0.009 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on), 0 lux with IR
- 2560 × 1920 @ 30 fps
- Flexible Lens: P: -90° to 90°; T: 0° to 60° (2.8 mm), 0° to 70° (4 mm/6 mm); R: 0° to 355
- H.265+, H.265, H.264+, H.264
- Frame Rate: Main Stream 30 fps (2560 × 1920, 2048 × 1536)
- Built-in MicroSD/SDHC/SDXC Card Slot, up to 256 GB
- 12 VDC, POE (802.3af)
Dual-Directional Multi-Sensor PanoVu Camera Specifications:
- Camera:
- Image Sensor: 2 x 1/2.7"" progressive scan CMOS
- Minimum Illumination: Color: 0.009 lux @ (F/1.6, AGC on), B/W: 0.0018 lux @ (F1.6, AGC on), 0 lux with IR
- Shutter Speed: 1s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120 dB
- Day/Night: ICR (Infrared Cut Removal) filter
- Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email
- Angle Adjustment: P: -90 to 90°; T: 0 to 60° (2.8 mm), 0 to 70° (4 mm/6 mm); R: 0 to 355°
- Lens:
- Lens Type and FOV: 2.8 mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° 4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° 6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°
- Aperture: 1.6
- Lens Mount: M12
- Illuminator:
- IR Range: Up to 33 ft (10 m)
- Wavelength 850 nm
- Smart Supplement Light: Yes
- Video:
- Maximum Resolution: 2560 × 1920
- Main Stream: 30 fps (2560 × 1920, 2048 × 1536)
- Sub Stream: 30 fps (640 × 480, 704 × 480)
- Third Stream: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)
- Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264: Type Baseline Profile/Main Profile/High Profile
- H.265: Type Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Bit Rate Control: CBR/VBR
- Stream Type: Main stream/sub-stream/third stream
- Scalable Video Coding (SVC): H.265 and H.264 supported
- Region of Interest (ROI): 4 fixed regions for each stream
- Audio:
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711 ulaw), 64 Kbps (G.711 alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-160Kbps(MP2L2),250Kbps (PCM)
- Audio Type: Stereo
- Network:
- Simultaneous Live View: Up to 20 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP,802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming: Yes
- User/Host: Up to 32 users; 3 levels: Administrator, Operator and User
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP,EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
- Image:
- Day/Night: Switch Day, Night, Auto, Schedule, Triggered by Alarm In
- Picture Overlay: Logo picture can be overlaid on video in 128 × 128 24-bit bmp format
- Image Enhancement: BLC, HLC, Defog, EIS, 3D DNR
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, white balance adjustable by client softwareorWebbrowser
- Interface:
- Alarm: 1 input, 1 output (maximum 36 VDC, 30 mA)
- Audio; 2 built-in mics, 1 line in, 1 line out
- RS-485: 1 RS-485 interface, half duplex
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256 GB
- Reset Reset: via reset button on camera body, Web browser, and client software
- Communication Interface: 1 RJ-45 10M/100M self-adaptive Ethernet port
- Heater: Yes
