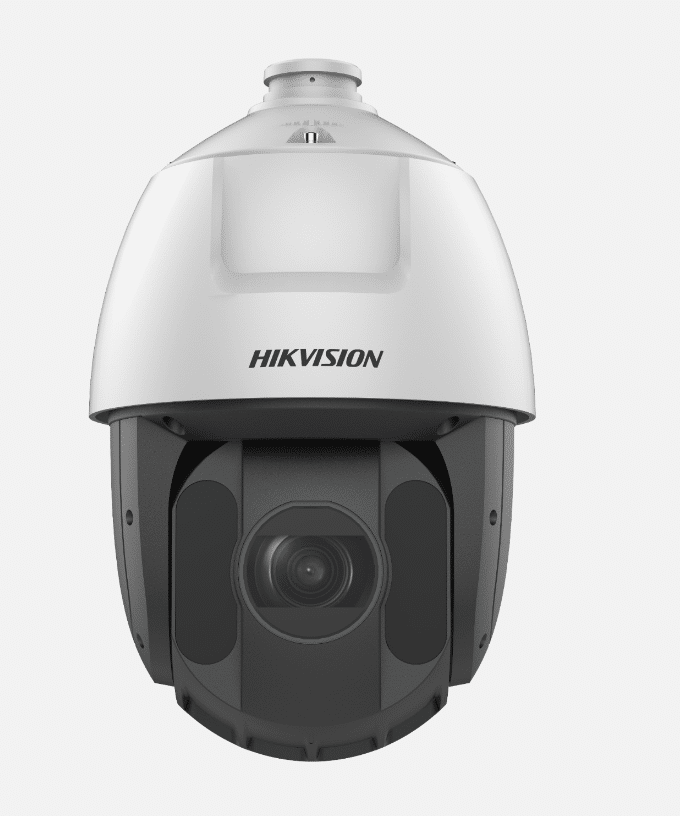

Hikvision Outdoor IP Network IR PTZ Dome Camera 25X, 4MP, 4.8-120 mm Overview
Hikvision DS-2DE5425IW-AE(T5) 4 MP 25× Network IR Speed Dome adopts a 1/2.8"" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas.
This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, venues, etc.
Hikvision Outdoor IP Network Dome Camera Features
- 1/2.8"" Progressive Scan CMOS. High-quality imaging with 4 MP resolution
- Focuses on human and vehicle targets classification based on deep learning
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close-up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 150 m IR distance
- 24 VAC & PoE (802.3at)
- Efficient H.265+/H.265 compression technology
DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera's ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
- DORI: Definition
- Detect: 25 px/m
- Observe: 63 px/m
- Recognize: 125 px/m
- Identify: 250 px/m
- DORI: Distance (Tele)
- Detect: 2400.0 m (7874.0 ft)
- Observe: 952.4 m (3124.7 ft)
- Recognize: 480.0 m (1574.8 ft)
- Identify: 240.0 m (787.4 ft)
Hikvision Outdoor IP Network Dome Camera Specifications
- Camera
- Image Sensor: 1/2.8? Progressive Scan CMOS
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed: 1 s to 1/30,000 s
- Slow Shutter: Yes
- Day & Night: IR cut filter
- Zoom: 25x optional, 16x digital
- Max. Resolution: 2560 × 1440
- Lens
- Focus: Auto, semi-auto, manual
- Focal Length: 4.8 mm to 120 mm
- Zoom Speed: Approx. 3.6 s
- FOV:
- Horizontal field of view: 55° to 2.4° (wide-tele),
- Vertical field of view: 33° to 1.4° (wide-tele),
- Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Aperture: Max. F1.6
- Illuminator
- Supplement Light Type: IR
- Supplement Light Range: IR Distance: up to 150 m
- PTZ
- Movement Range (Pan): 360°
- Movement Range (Tilt): -15° to 90° (auto flip)
- Pan Speed: Pan speed: is configurable from 0.1° to 120°/s; preset speed: 120°/s
- Tilt Speed: Tilt speed: is configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Pan: Yes
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans
- Power-Off Memory: Yes
- Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning: Yes
- PTZ Status Display: Yes
- Preset Freezing: Yes
- Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline profile/Main Profile/High profile
- H.265 Type: Main profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 8 fixed regions for each stream
- Main Stream
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Client: iVMS-4200, HikCentral Pro, Hik-Connect
- Web Browser: IE11, Chrome57+, Firefox52+, Safari11+
- Image
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Wide Dynamic Range (WDR): 120 dB
- Defog: Digital Defog
- Image Stabilization: No
- Regional Exposure: Yes
- Regional Focus: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters Switch: Yes
- Privacy Mask: 24 programmable polygon privacy masks, mask color, or mosaic configurable
- SNR: ?52 dB
- Interface
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Alarm: 2 inputs, 1 output
- Audio:
- 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K? ± 10%;
- 1 output (line out), line level, output impedance: 600 ?
- Reset: Yes
- Event
- Basic Event: Motion detection, video tampering alarm, exception, alarm input, and output
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send an email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting a face in motion, and outputting the best face picture of the face
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power: 24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
- Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Demist: Yes
- Material: Metal
- Dimension:
- Ø 210 mm × 344.7 mm (Ø 8.27"" × 13.57"")
- Approx. 3.0 kg (6.61 lb.)
- Approval
- EMC:
- FCC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
- RCM (AS/NZS CISPR 32: 2015);
- IC (ICES-003: Issue 7);
- KC (KN 32: 2015, KN 35: 2015)
- Safety:
- UL (UL 62368-1);
- CB (IEC 62368-1:2014+A11);
- CE-LVD (EN 62368-1:2014/A11:2017)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection, and voltage transient protection
