Acerca del producto

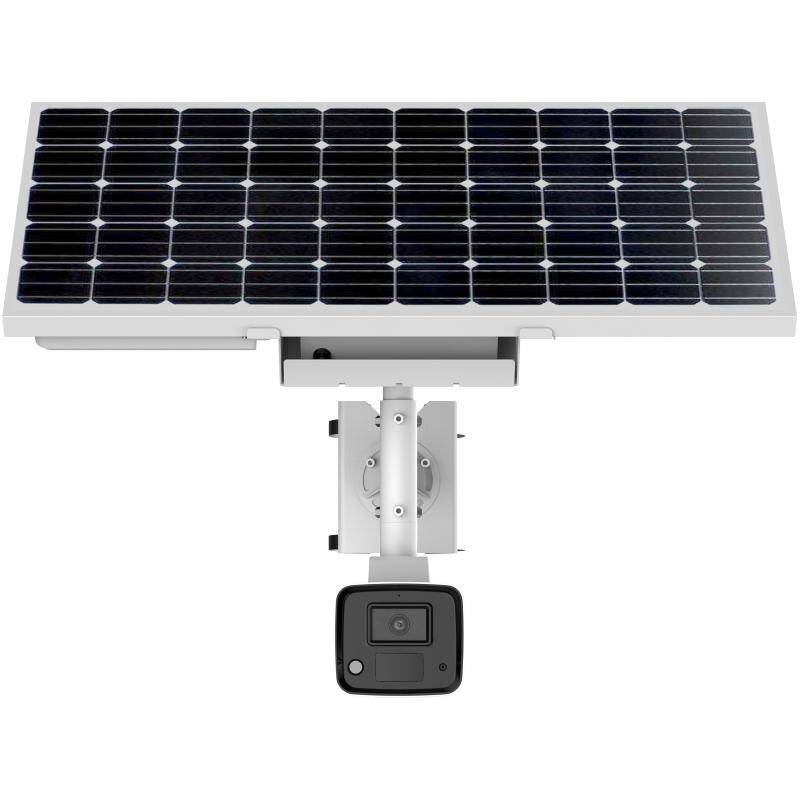

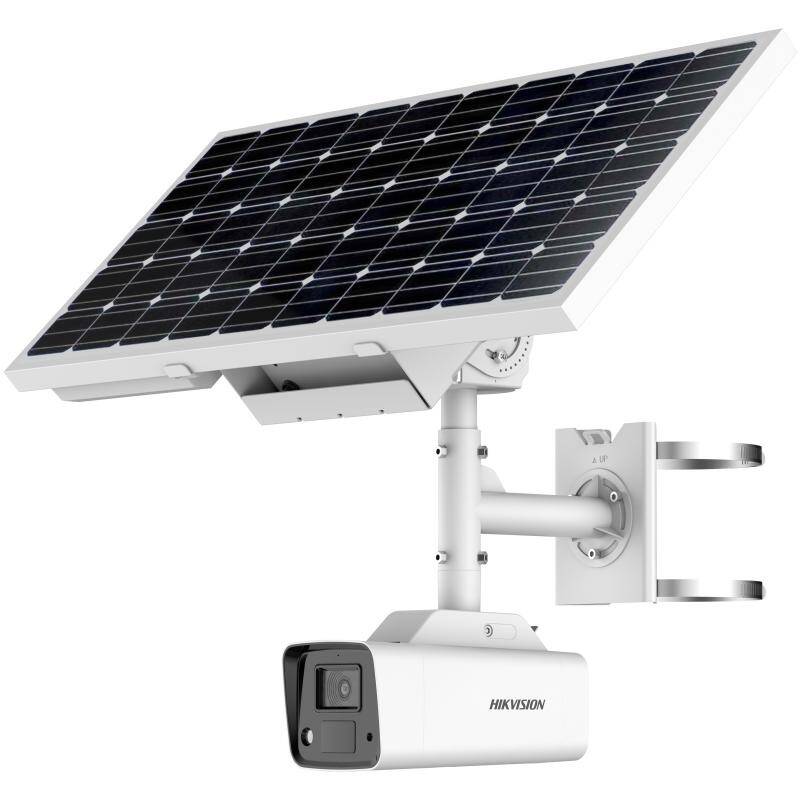

The Hikvision 4MP ColorVu Solar-Powered Security Camera Kit is an ideal way of extending security systems beyond areas that can be traditionally reached by networking and electrical systems. With ColorVu technology, low-to-no light recordings are captured with vivid colour detail and reproduction, ensuring 24/7 clear 1440p QHD colour video—day or night— without the traditional ‘white-black-blue’ colour of IR recordings. Ideal for recording sensitive outdoor areas like roads, railways, airports, cargo/civilian transit hubs, stadiums—as well as scenic and natural areas like parks, rural properties, animal trails, and more.
With human detection support, you can ensure that recordings and alerts are accurate—and with 2-way audio with built-in mic and speaker, live operators can speak to trespassers or play automatic warning recordings directly through the camera, adding a secondary deterrence layer to any remote or standalone security setup.
Using a 4G connection, you can watch live footage, review recordings and address alerts using the Hik-Connect app, and with optional microSD/SDHC/SDXC storage up to 256 GB, and 50 GB of on-board eMMC storage, you can ensure critical recordings are maintained locally without external storage devices or NVR control.
With the included solar panel and dual 8.4 Ah rechargeable lithium battery packs, you can run the camera for up to 6 days in Proactive mode, or up to 30 days in standby mode without charging; and with a lifetime of 500 battery cycles, you can ensure 24/7 operation without constant upkeep.
DS-2XS2T47G1-LDH/4G/C18S40(4MM)/US Specs and Features:
- Camera
- Image Sensor:1/3"" progressive scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Speed: 1/3 s to 1/100,000 s
- Day & Night: 24/7 color imaging
- Angle Adjustment
- Solar panel: pan: 0° to 358°, tilt: -40° to 0°
- Camera: pan: 0° to 360°, tilt: -60° to 0°
- Lens
- Focal Length: Fixed focal lens, 4mm
- FOV:
- Horizontal FOV: 75°
- Vertical FOV: 40°
- Diagonal FOV: 89°
- Depth of Field: 2.7 m to ?
- Aperture: F1.0
- Lens Mount: M12
- DORI: D: 82 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light Type: White Light
- Supplement Light Range:
- Performance mode: up to 30 m,
- Proactive mode: up to 10 m
- Video
- Main Stream
- 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265/ H.264
- Sub-stream: H.265/H.264/MJPEG
- H.264+ and H.265+: main stream supports under performance mode
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Scalable Video Coding (SVC): Yes
- Region Of Interest (ROI): 1 Fixed region
- Main Stream
- Audio
- Two-way audio with built in mic and speaker
Audio Compression: G.711, G.722.1, G.726, MP2L2, MP3, PCM, AAC-LC - Audio Sampling Rate:
- MP2L2: 16 kHz, 32 kHz, 48 kHz
- AAC-LC: 16 kHz, 32 kHz, 48 kHz
- PCM: 8 kHz, 16 kHz, 32 kHz, 48kHz
- MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filtering: Yes
- Two-way audio with built in mic and speaker
- Network
- Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live View: Up to 6 channels
- Web Browser
- Local service: Chrome 57.0+, Firefox 52.0+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Plug-in required live view: IE 10+
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Network Storage: Auto Network Replenishment (ANR)
- User/Host
- 3 user levels: administrator, operator, and user
- Up to 32 users
- Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- Wireless (Mobile Communication)
- SIM Card Type: Micro SIM
- Uplink And Downlink Data Rate: Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
- Frequency
- NL668-US:
- LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71
- WCDMA: B2/B4/B5
- Standard: LTE-TDD,LTE-FDD,WCDMA,GSM
- NL668-LA:
- LTE-TDD: B38/B40
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
- WCDMA:B1/B2/B3/B4/B5/B8
- GSM: B2/B3/B5/B8
- NL668-EU:
- LTE-TDD: B38/B40/B41
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28
- WCDMA: B1/B5/B8
- GSM: B3/B5/B8
- NL668-US:
- Image
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness
- Day/Night Switch: day, night, auto, schedule
- Wide Dynamic Range (WDR): yes
- SNR: > 52dB
- Defog: Yes
- Interface
- On-Board Storage:
- Built-in eMMC storage, up to 64 GB.
- Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB.
- Built-In Microphone: Yes
- Built-In Speaker: Yes
- Reset Key: Yes
- On-Board Storage:
- Event
- Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Linkage: Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning
- General
- Power Consumption and Current:
- Typical power scenarios: 1.85 W (4G working)
- Standby scenarios: 40 mW
- Max. power consumption: 6 W
- Power Supply:
- 12 VDC ± 25% *For debugging only
- 40 W (deviation: ± 2 W) Solar panels
- Power Interface:
- Power supply interface: Ø5.5 mm coaxial power plug
- Extened solar panel: four-core aviation connector
- Material: ADC12
- Storage Conditions: -20 °C to 50 °C (-4 °F to 122 °F).
- Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror, flash log
- Startup And Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F).
- Humidity 95% or less (non-condensing)
- Dimensions: 679 mm × 443 mm × 760 mm (26.7"" × 17.4"" × 29.9"")
- Weight: Approx. 11.570 kg (25.5 lb.)
- Power Consumption and Current:
- Battery
- Battery Type: Ternary Lithium
- Capacity: 8.4 Ah × 2 packs
- Max. Charging Voltage: 12.6 V
- Operating Temperature:
- Charging: -20 °C to 45 °C (-4 °F to 113 °F)
- Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
- Battery Voltage: 9 V to 12.6 V
- Battery Lif: More than 500 cycles
- Cycle Lifetime:
- Performance mode: 3.6 days
- Proactive mode: 6 days
- Standby mode: 30 days
- Battery Weight: Approx. 1400 g (3.1 lb.)
- Approval
- EMC
- FCC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- IC: ICES-003: Issue 7
- RF
- FCC ID: FCC Part 15.247 (BT or 2.4G)
- IC ID (RSS-247(BT or 2.4G))
- CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
- Safety
- CB: IEC 62368-1: 2014+A11
- CE-LVD: EN 62368-1: 2014/A11: 2017
- LOA: IEC/EN 60950-1
- Environment
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
- Protection
- IP67: IEC 60529-2013
- EMC
