Acerca del producto

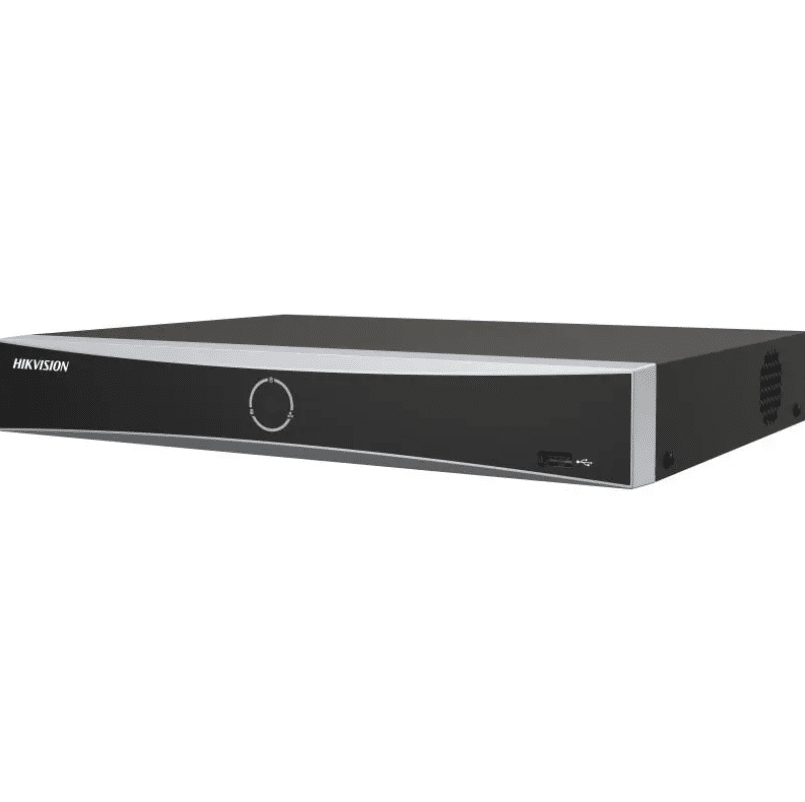

Hikvision 4 Channel 4K NVR AcuSense NVR, 1U, 2TB Key Features:
- Up to 4-ch IP camera inputs, plug & play with 4 power-over-ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Hikvision 4 Channel 4K NVR AcuSense NVR, 1U, 2TB Specifications:
- Intelligent Analytics
- AI by Device: Facial recognition, perimeter protection, motion detection 2.0
- AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
- Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
- Facial Detection and Analytics Performance 1-ch, 8 MP
- Face Picture Comparison 2-ch
- Motion Detection 2.0
- By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By Camera: All channels
- Perimeter Protection:
- By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera: All channels
- Video and Audio
- IP Video Input 4-ch
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 80 Mbps
- HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI1/VGA simultaneous output
- CVBS Output N/A
- Audio Output 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding
- Decoding Format H.265/H.265+/H.264+/H.264
- Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 4-ch
- Decoding Capability AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream Type Video, Video & Audio
- Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection 128
- API ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power ? 50 W
- Standard IEEE 802.3af/at
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each HDD
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out N/A (4/1 is optional)
- General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply 48 VDC, 1.35 A
- Consumption ? 10 W (without HDD and PoE off)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 320 mm × 240 mm × 48 mm (12.6""× 9.4"" × 1.9"")
- Weight ? 1 kg (without HDD, 2.2 lb.)
- Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Especificaciones técnicas
Hikvision 4 Channel 4K NVR AcuSense NVR, 1U, 2TB Key Features:
- Up to 4-ch IP camera inputs, plug & play with 4 power-over-ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Hikvision 4 Channel 4K NVR AcuSense NVR, 1U, 2TB Specifications:
- Intelligent Analytics
- AI by Device: Facial recognition, perimeter protection, motion detection 2.0
- AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
- Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
- Facial Detection and Analytics Performance 1-ch, 8 MP
- Face Picture Comparison 2-ch
- Motion Detection 2.0
- By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By Camera: All channels
- Perimeter Protection:
- By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera: All channels
- Video and Audio
- IP Video Input 4-ch
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 80 Mbps
- HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI1/VGA simultaneous output
- CVBS Output N/A
- Audio Output 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding
- Decoding Format H.265/H.265+/H.264+/H.264
- Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 4-ch
- Decoding Capability AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream Type Video, Video & Audio
- Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection 128
- API ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power ? 50 W
- Standard IEEE 802.3af/at
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each HDD
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out N/A (4/1 is optional)
- General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply 48 VDC, 1.35 A
- Consumption ? 10 W (without HDD and PoE off)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 320 mm × 240 mm × 48 mm (12.6""× 9.4"" × 1.9"")
- Weight ? 1 kg (without HDD, 2.2 lb.)
- Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
