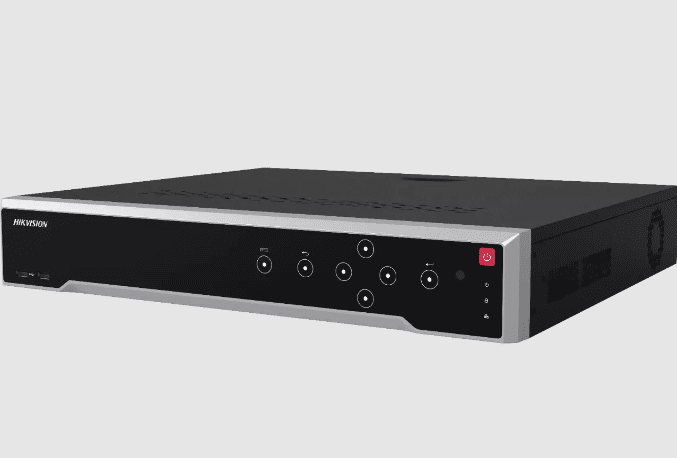

NVR Hikvision Serie M de 16 canales y 32 MP, con conectividad Plug and Play (DS-7716NI-M4/16P)

H.265+/H.265/H.264+/H.264 video formats

Up to 16-ch IP camera inputs

Up to 16-ch@4 MP decoding capacity

Up to 256 Mbps incoming bandwidth

H.265+ compression effectively reduces the storage space by up to 75%

Dual-stream recording saves bandwidth

Adopt stream over TLS encryption technology which provides a more secure stream transmission service

Support double verification for playback and downloading

Provide independent HDMI and VGA outputs

HDMI video output at up to 8K resolution

Dual 4K HDMI output resolution

Up to 4 SATA interfaces for HDD connection

16-ch synchronous playback

Smart & POS Function

Support multiple VCA (Video Content Analytics) events

Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting

POS information overlay on live view and playback, and POS triggered recording and alarm

6 independent PoE network interfaces

1 self-adaptive 10/100/1000 Mbps Ethernet interface

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Smooth streaming technology

Support web access without plug-in

IP Video Input: 16-ch

Up to 32 MP resolution*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP

IP video inputs.

• Incoming Bandwidth 256 Mbps

• Outgoing Bandwidth 256 Mbps

HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz

HDMI 2 Output

• 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×

• 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• VGA Output

• 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz

• Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output

• CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output 1-ch, RCA (Linear, 1 K?)

Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding Format H.265+/H.265/H.264+/H.264

Recording Resolution:

• 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

• *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP

IP video inputs.

Synchronous Playback 16-ch

Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25fps)/16-ch@4 MP (30 fps)

Dual-Stream Recording Support

Stream Type Video, Video & Audio

Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Remote Connection 128

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,UPnP™, HTTP, HTTPS

Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power ? 200 W

Standard IEEE 802.3 af/at

RAID Type N/A

Auxiliary Interface

eSATA 1 eSATA interface

SATA 4 SATA interfaces

Capacity Up to 14 TB capacity for each disk

Serial Interface 2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out 16/9

USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

DC 12V 12 VDC, 1 A power output

Power Supply 100 to 240 VAC, 50 to 60 Hz

Consumption ? 15 W (without HDD and PoE off)

Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity 10% to 90%

Chassis 19-inch rack-mounted 1.5U chassis

Dimension (W × D × H) 445 × 400 × 75 mm ( 17.5""× 15.7"" × 3.0"")

Weight ? 5 kg (without HDD, 11 lb.)
