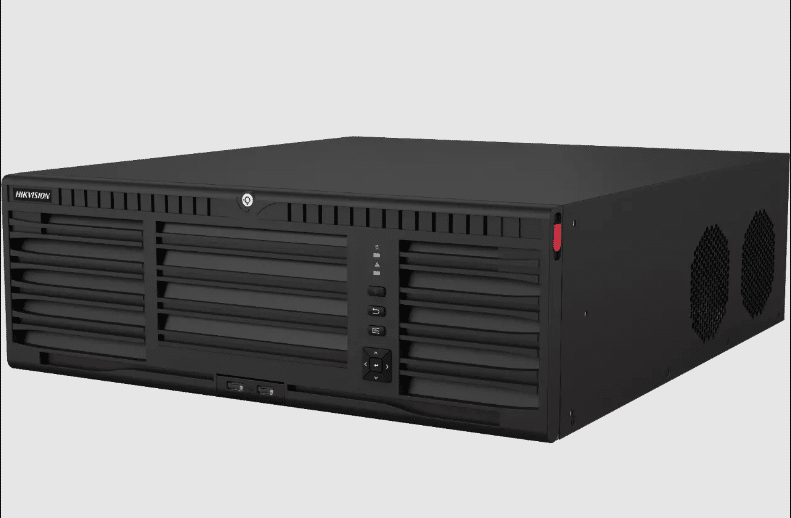

Hikvision DS-9632NI-M16 3U 4K 32 Channel NVR, No HDD
Hikvision DS-9632NI-M16 3U 4K 32 Channel NVR Features:
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides a more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K or dual 4K resolution
- Storage and Playback
- 16 SATA interfaces for HDD connection (up to 14 TB capacity per HDD)
- 1 eSATA interface for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
Hikvision DS-9632NI-M16 3U 4K 32 Channel NVR Specifications:
Video and Audio
IP Video Input 32-ch
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz
HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is1080p.
VGA 1 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?)
Audio Output 2-ch, RCA (Linear, 1 K?)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k ?)
Decoding
Decoding Format H.265/H.265+/H.264/H.264+
Recording Resolution:
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface 1 RS-485 (full-duplex), 1 RS-232
SATA 16 SATA interfaces supporting hot-plug
eSATA 1 eSATA interface
Capacity Up to 14 TB capacity for each disk
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 2× USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be
turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ? 50 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 3U chassis
Dimension (W × D × H) 445 × 496 × 150 mm (17.5"" × 19.5"" × 5.9"")
Weight ? 12.5 kg (without HDD, 27.6 lb.)
Certification
Obtained Certification CE, FCC
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
