Workstations

Expected delivery 3 to 7 business days (exceptions applied)

Advantech

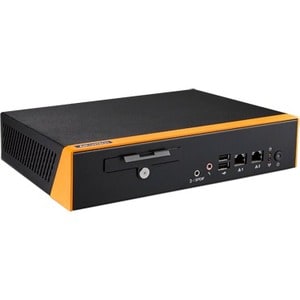

Dispositivo de señalización digital Advantech DS-980GL-U4A1E

Dispositivo de señalización digital Advantech DS-980GL-U4A1E

Precio habitual $2,455.60 CAD
Precio habitual $2,750.27 CAD Precio de oferta $2,455.60 CAD
-10% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Dispositivo de señalización digital Advantech DS-980GL-U4A1E - Core i7 - HDMI - USB - Ethernet serie

VPN:DS-980GL-U4A1ESKU:834VVPCM UPC:

Vea la descripción a continuación.

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Dispositivo de señalización digital Advantech DS-980GL-U4A1E

Resumen de información del producto

Dispositivo de señalización digital Advantech DS-980GL-U4A1E

Acerca del producto

Advantech DS-980 is the first video wall solution of digital signage players, which is powered by the 6th generation Intel® Core i7/ i5/ i3/ Celeron rPGA processor (LGA 1151), and stackable design for PCI Express 3.0 x16 expansion which is used for optional graphic cards. DS-980 delivers the exceptional graphic performance by Intel HD Graphics 530 which supports HEVC/265, AVC/264, MPEG2, VC1/WMV9, VP8, JPEG/MJPEG, VP9 video format. Additionally, DS-980 adopts the latest interfaces to fulfill the customer's advanced requirements, such as HDMI2.0 supports 4096 x 2160 @60Hz maximum resolution, DDR4 2133MHz SO-DIMM with dual channel (maximum capacity for 32GB, 16GB per SO-DIMM), and M.2 (2230 E key) for wireless function. Total display outputs on the DS-980 motherboard are 3 x HDMI which are designed for 1 x HDMI2.0 (printed HDMI1); 2 x 1.4 (printed HDMI2 & HDMI 3; HDMI2 supports CEC function). The maximum resolution is true 4K (4096 x 2160 @ 60Hz). Not only 3 x HDMI outputs but also the extra outputs from PCI Express 3.0 x16 slot for optional graphic card further support up to 6 outputs and realize the video wall application in retails, public services, institute and etc..

Especificaciones técnicas

Network & Communication
EthernetYes
Power Description
Input Voltage12 V DC
Processor & Chipset
Processor TypeCore i7
Technical Information
Video Wall CompatibleYes
Miscellaneous
Package Contents
  • DS-980GL-U4A1E Digital Signage Appliance
  • 1 x 12V DC-in 150W power adapter
  • 1 x Signage Software (WISE-PaaS/RMM & WebAccess/IMM) CD package
  • 1 x China RoHS declaration
  • 1 x Traditional & Simplified Chinese User Manual
  • 1 x Warranty card
  • 2 x Mounting brackets with 4 screws
  • 4 x Stand rubber with 4 screws
  • 1 x 2nd Storage module
  • 1 x Bracket
  • 4 x Damper
  • 4 x Screws for installing on a bottom layer
  • 4 x Step screws for installing storage on a bracket
  • 1 x SATA cable
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)7.94 lb (3600 g)
Height3.46" (88 mm)
Width10.54" (267.60 mm)
Depth8.07" (205 mm)
Interfaces/Ports
USBYes
HDMIYes
Number of HDMI Outputs3
Number of USB 2.0 Ports2
Number of USB 3.0 Ports4
SerialYes
General Information
Product TypeDigital Signage Appliance
Manufacturer Part NumberDS-980GL-U4A1E
Manufacturer Website Addresshttp://www.advantech.com
Packaged Quantity1
ManufacturerAdvantech Co., Ltd
Product ModelDS-980GL-U4A1E
Product NameDS-980GL-U4A1E Digital Signage Appliance
Product SeriesDS-980
Brand NameAdvantech
