What This Product Does

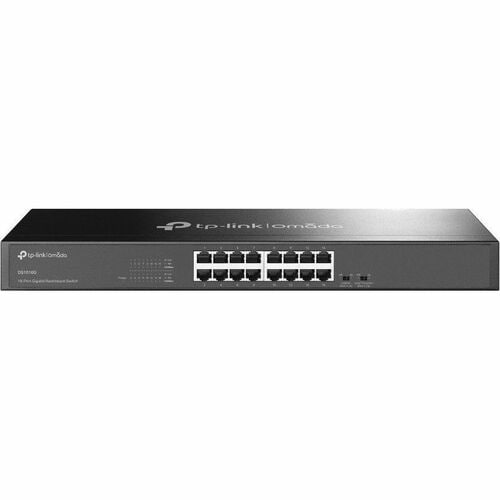

The DS1016G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the DS1016G can save power consumption, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation DS1016G Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU's RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, DS1016G forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The DS1016G work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Loop Prevention
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
Especificaciones técnicas
| Miscellaneous | |
| Application/Usage | Network |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 16 |
| Technical Information | |
| Features | Loop Protection |
| Fanless | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Networking Standards | IEEE 802.1p |
| IEEE 802.3ab | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| Physical Characteristics | |
| Form Factor | Desktop |
| Rack-mountable | |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 5.51" (140 mm) |
| Product Material | Steel |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | AC |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 10.68 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DS1016G |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | DS1016G |
| Product Name | DS1016G Omada 16-Port Gigabit Rackmount Switch |
| Package Type | Retail |
| Product Line | Omada |
| Brand Name | TP-Link |
