Acerca del producto

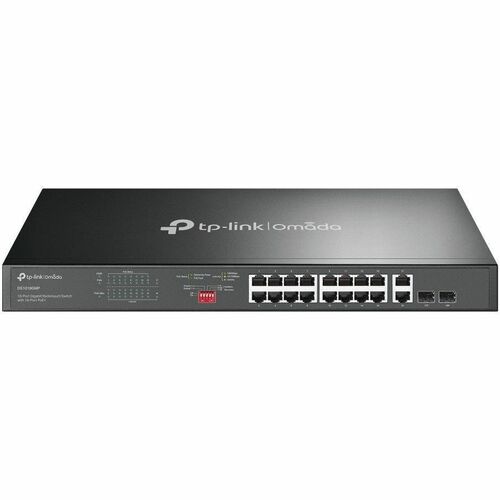

DS1018GMP is an 18-port Gigabit Desktop/Rackmount Switch with 16 PoE+ ports. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 250 W*, up to 30 W per port, DS1018GMP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, DS1018GMP can save power consumption, making it an eco-friendly solution for your business network.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Rack mounting enables you to organize wires & secure cables for professional installation
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 18 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 18 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | No |
| Miscellaneous | |
| Application/Usage | Business |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 18 |
| Port/Expansion Slot Details | 18 x 10/100/1000BASE-T RJ45 Network Ports |
| 2 x Gigabit SFP Expansion Port | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 1.73" (43.94 mm) |
| Width | 17.30" (439.42 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DS1018GMP |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Name | Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE+ |
| Product Line | Omada |
| Brand Name | TP-Link |
| Media & Performance | |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Maximum Data Transfer Rate | 128 MB/s |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 293.34 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Network & Communication | |
| Networking Standards | IEEE 802.3z |
| IEEE802.3af | |
| IEEE 802.3x | |
| IEEE 802.3u | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| IEEE 802.1p |
