Acerca del producto
- 67 W PoE Budget
- Long-Range PoE+ (250m)
- One-Click Priority Mode
- PoE Auto Recovery
- Desktop or Wall-Mounting
- Plug and Play
- Fanless Design for Silent Operation
- Durable Metal Casing
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

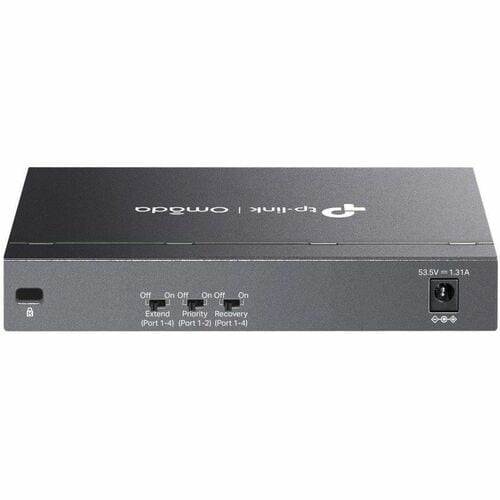

Instantaneous Multi-mode Toggles | Extend Mode | Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m -perfect for IP Camera deployment in large areas.
Priority Mode | One-click Port Priority
Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
Recovery Mode | PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks

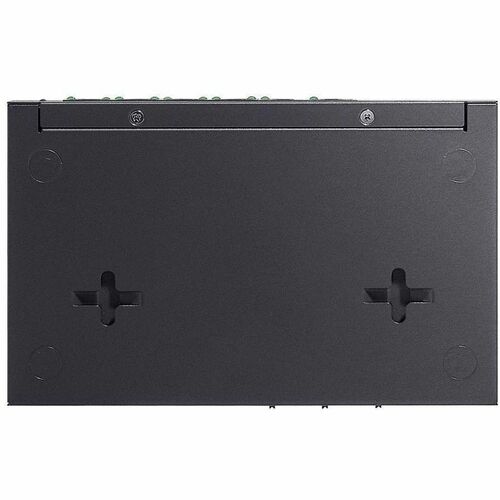

- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 10 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | No |
| Technical Information | |
| Features | Plug and Play |
| Fanless | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 4 x Fast Ethernet PoE+ |
| 6 x Fast Ethernet Network | |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af |
| IEEE 802.3at | |
| IEEE 802.3x | |
| Media & Performance | |
| Network Technology | 10/100Base-T |
| 10/100/1000Base-T | |
| Ethernet Technology | Fast Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Power Description | |
| Power Source | Power Adapter |
| Frequency | 50 Hz |
| Power Consumption | 2.52 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 67 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 0.98" (25 mm) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Product Material | Metal |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DS106P |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | DS106P |
| Product Name | Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ |
| Product Line | Omada |
| Brand Name | TP-Link |
| Miscellaneous | |
| Application/Usage | Network |
| IP Phone | |
| IP Camera | |
| Wireless Access Point | |
| PC | |
| Network Video Recorder | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
