A complete and extendable Dahua VMS for versatile, scalable, dependable, and potent central management is DSS Pro. DSS Pro offers multi-service collaboration, easy connections, information sharing, central administration, and client-server architecture. In addition to basic features like user permission management, device management, alarm management, and central storage, the software offers advanced features like access control features, video wall and map configuration, video intercom, attendance, and analytic functions like face and object detection. Additionally, it incorporates add-ons like traffic monitoring and business information.
Dahua DSS Pro V8 Intelligent Inspection Module License Features:

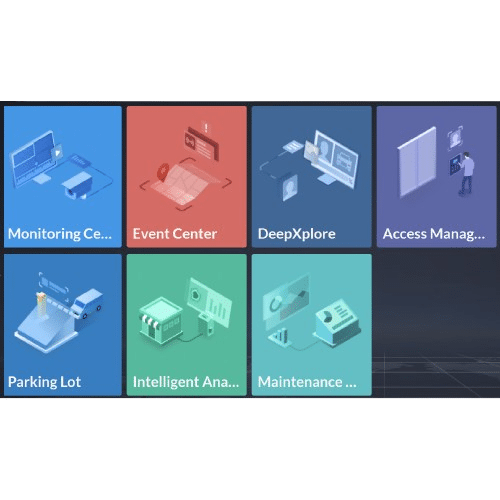

- Integrates All Management Functions into One Client
- Allows Device Initialization and Management
- Live Video Playback from Edge Device
- Supports Access Control and Video Intercom Integration
- Configure Video Wall Layout and Scheme
- Offers Fisheye Camera Dewarping on Live View
Dahua DSS Pro V8 Intelligent Inspection Module License System Features:
Business Configuration
- Device Management
• Bind cameras for alarm configuration
• Initialize Dahua devices
• Add devices via auto search, IP, IP Segment, P2P, Domain, and auto-register
• Turn push notifications on and off
• Manage Dahua devices
• Add third-party devices via ONVIF
• Modify Dahua device IP address and password
• Import Intercom Devices - Role and User Management1
• Manage user permissions and roles for devices and control
• Assign user to defined roles
• Assign appropriate permissions to specific users
• Set user PTZ permissions
• Lock users
• Import domain user and assign roles - Event Management
• Set alarm type: device, video channel, alarm input, IVS alarm, thermal, vehicle block list
• Set alarm scheme: all day, weekday, weekend, or custom template
• Set alarm priority: Low, Medium, High
• Link recordings, snapshots, live video, alarm output, PTZ actions, or e-mail - Storage
• Set edge storage and central storage
• Extend central storage via iSCSI
• Create recording plan by time template: all day template, weekday template, weekend
• template, and custom template
• Backup video from edge storage devices (EVS, NVR, DVR, etc.) by schedule
• Backup video from MDVR, NVR, EVS, DVR via Wi-Fi
• Allocate disks and cameras to different groups to main disk quotas
Note: Video and image recordings cannot be on the same physical hard drive. Separate physical drives are required for video and image storage. System hard drives are only for DSS software installation. - Map
• Use Google online or offline maps, or raster maps
• Supports 8-level sub-map
• Configure camera, alarm input, and intelligent channel, and sub-map hot spots. - Video Wall
• Display/Hide the screen ID
• Display alarm output channels
• Display all alarms in a list
• Click an alarm to locate the alarm source
• Supports screen combinations
• Bind the decode channel with the corresponding screen - Vehicle Block List
• Manage vehicle block lists
• Arm and disarm vehicle block lists
• Import and export vehicle block lists - Video Intercom
• Manage communication between intercom devices via SIP protocol or command
• center.
• Release text information to VTH, release address book to VTO
• View, delete, and freeze DSS Mobile users
System Maintenance
- Backup and Restore
• Automatically backup system database (daily, weekly monthly)
• Manually backup system database
• Restore system database from a server or a local file - System Dashboard
• View overview and detailed system information
• Check CPU, storage, and bandwidth running status
• View device health report for service, device, and user online information
• View event information statistics: total and processed events
• View video and alarm channel source information - Logs
• View system, administrator, and client logs
• Look for devices logs from IPCs, NVRs, and controllers
• Search and export logs - Other Functions
• Support HTTPS
• Supports TLS1.2 email servers
• Set device time calibration
• Set log and alarm information - Service Management
• Delete the subserver
• Release text information to VTH, release address book to VTO
• View, delete, and freeze DSS Mobile users
Control Client
- Live View
• Display device tree; show/hide offline devices.
• Display device IP address or device name on the device tree
• View real-time video
• Apply a common layout (1, 4,6, 8, 9, 13, 16, 20, 25, 36, 64 ) or a customized layout
• Control PTZ cameras
• Set manual recording (PC or central storage)
• Take Snapshots
• Perform instant playback and digital zoom
• Apply fisheye dewarping
• Control smart tracking for fisheye, speed dome, and panoramic cameras
• Audio talk
• Decode to a video wall
• Turn on/off the audio in live view
• Set Region of Interest: divide one window into 4 or 6 parts, one shows whole image and others show details
• Display map in Live View and save current split as a view
• Switch to Playback mode
• Supports NKB1000 keyboard to control cameras in the Live View
• Adjust the video image and the display mode (full screen or original)
• Electronic focus - Playback
• Playback recording from front-end devices or from central storage
• Apply video filters: normal, motion, alarm, video loss,video tampering
• Sync play
• Reverse playback; Supports up to 64x fast play and 1/64x slow play
• Frame-by-frame Playback
• Lock or mark important recording segments for central storage
• Supports .avi, .dav, .flv, .mp4, and .asf video output
• Decode to a video wall
• Apply Fisheye dewarping
• Take a snapshot
• Switch to the Live View
• Apply a common layout (1, 4,6, 8, 9, 13, 16, 20, 25, 36) or a customized layout
• Adjust the video image and the display mode (full screen or original) - Event
• View real-time and historical alarm information
• View detailed alarm information (live video, record and pictures from related camera, alarm source location on the map)
• Acknowledge alarms
• Arm control for alarm source
• Forward alarms to relevant users
• Manually send alarm email to a relevant user
• Search by alarm source, alarm time, status, handle user, and priority
• Search alarm events and export the alarm list - Video Wall
• Manually/Automatically decode real-time video to a video wall
• Manage video wall split
• Change the video channel stream type
• Add box, turn screen on/off, and deliver video stream to control client
• Tour the video channel in one screen
• Set running task on the timeline for schedule plan
• Loop different tasks and set duration time for tour plan
• Supports NKB1000 keyboard to control the video wall. - Map
• View live video or playback video on the map
• Calculate area or length of a GIS map
• Supports visible range and initial angle (for PTZ cameras only)
• Displays visible alarm trigger on the map - Other Functions
• Decode GPU
• Connect NKB via USB - Personnel Management
• Add, edit, and delete personnel and departments
• Program card or fingerprint via USB or other readers
• Authorize access by door or by door group
• Set private passwords and face authentication
• Manage guest, VIP, and employee access
Control Client (Cont.)
- Access Control
• Monitor door status and events
• Set door groups and door levels
• Manage access rights
• Use one key to lock/unlock doors
• Link to fire control system
• Set advanced door rules (passback, first card unlock, for example) - Video Intercom
• Manage communication between intercom devices via SIP protocol or command center
• Release text information to VTH, release address book to VTO - Object Detection
• Take real-time snapshots and record information about human, motorized, and nonmotorized vehicles.
• Extract attributes from snapshots
• Search targets in database by criteria
• Generate daily, weekly, or monthly attribute reports - Thermal
• Supports monocular and binocular thermal imaging devices
• Reads temperature values from video frame - Vehicle Entry
• Edit parking lot information, including total and available spaces and parking lot name
• Manage vehicles, owners, and cards
• Bind LED screen with ITC or spot detector device
• Open barriers via VTO with card or remotely
• Force vehicles to leave parking lot
• Search historical pass records and export data
• Generate daily, weekly, monthly, and annual vehicle entry statistics - Traffic
• Search violations by time, license plate number, violation type.
• Supports daily, weekly, monthly, and annual traffic flow statistics
• Query data for vehicle data based on location, time period, and license plate number
Mobile Client
- History Record
• Show recently viewed channels, open live video or playback via history recordings
• Saves up to 20 history recordings before replacing the oldest recording - Live View
• Open more than one channel at the same time, up to 16 channels
• Supports high-definition (HD), standard-definition (SD), and Fluency (FL)stream types
• Supports PTZ control
• Supports horizontal screen play
• One-key switch to playback
• Take snapshots, record locally, and talk - Playback
• Replay device recordings and center recordings (up to 8x and as slow as 1/8x)
• Marks the calendar to indicate whether there is a video on a particular day
• Supports snapshot
• Manually record to local device
• Supports 1x, 2x, 3x, 4x, 1/2x, 1/4x, and 1/8x playback speeds - Alarm Center
• Subscribe to an alarm
• Process alarms
• View alarm video and picture
• Search alarms - Map
• Supports Google Maps
• Displays the video channel on the map
• View video and perform playback - Other Functions
• View video from a channel and add channel as a favorite
• View picture and video via a local file.
Dahua DSS Pro V8 Intelligent Inspection Module License Technical Specification:
- Hardware – Server
- Operating System
- Windows Server 2019 Standard (64-bit)
- Windows 10 20H2 Pro (64-bit)
- Windows 11 21H2 Pro (64-bit)
- CPU
- Recommended Intel® Xeon® Silver 4114 @ 2.2 GHz 10 Core Processor
- Minimum Intel® Xeon® E-2224 3.4GHz, 8M cache
- Memory
- Recommended 16 GB
- Minimum 8 GB
- System Disk 7200 RPM Enterprise Class HDD 1 TB, 500 GB free space for DSS
- Storage Disk 7200 RPM Enterprise Class HDD 1 TB, 500 GB free space for DSS
- Network Connection
- Recommended Four (4) 1000 Mbps Ethernet Port
- Minimum Two (2) 1000 Mbps Ethernet Port
- Languages English (United States), Simplified Chinese
- Operating System
- Hardware – Control Client
- Operating System
- Windows Server 2019 Standard (64-bit)
- Windows 10 20H2 Pro (32-bit)
- Windows 10 20H2 Pro (64-bit)
- Windows 11 21H2 Pro (64-bit)
- CPU
- Recommended Intel® Core i7-11700 at 2.50 GHz
- Minimum Intel® Core i5-9500 at 3.00 GHz
- Memory
- Recommended 16 GB
- Minimum 16 GB
- Graphics Card
- Recommended NVIDIA® GeForce® RTX 3060
- Minimum Intel® UHD Graphics 630
- Storage
- Recommended 200 GB free space
- Minimum 100 GB free space
- Network Connection One (1) 1000 Mbps Ethernet Port
- Languages Arabic, Bulgarian, Czech, Danish, English (United states), Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Macedonian, Polish, Brazilian Portuguese, Russian, Simplified Chinese, Spanish, Thai, Traditional Chinese, Turkish, Ukrainian, Vietnamese
- Operating System
- Hardware – DSS Mobile Client
- iPhone Model: iPhone 5S or later OS: iOS 10.0 or later
- Android Resolution: 1280 x 720 or higher RAM: 2 GB or more OS: Android 5.0 or later
- Language Arabic, English (United States), French, Russian, Simplified Chinese
- Total System Management Functions
- Organization, User, Roles
- Organization 10 Hierarchies; 999 Organization Total
- Roles 500 User Permissions
- Roles per user 32
- Users 200 Online Users 2,500 Total Users
- Users for VDP Mobile App 500 Online Users 5,000 Total Users
- Record and Event Plan
- General Recording Plans 3,000
- Motion Detection Recording Plans 3,000
- Video Retrieval Plans 3,000
- File Retrieval Plans 3,000
- Record and Event Plan (Cont.)
- Event Rules 3,000
- Combined Event Rules 100
- Combined Events 1,000
- Map
- Person and Vehicle Groups 999
- Sub Groups per Level 10
- Hierarchies 8
- Offline GIS Map Package 500 MB
- Raster Maps Up to 256
- Submaps per Map Up to 32
- Raster Map Size 15 MB
- Raster Map Resolution 8,100 x 8,100
- Resources per GIS Map Up to 300
- Resources per Raster Map Up to 300
- Person and Vehicle Management
- Persons 300,000
- Cards 600,000
- Faces 300,000
- Finger Prints 600,000
- Vehicles 50,000
- Vehicle Watch List 32
- Vehicles per Watch List 50,000
- Intelligent Analysis
- People Counting Groups 30
- People Counting Rules per Group 20
- Access Control
- Persons for Door Access Rules 30,000 (1 password, 2 face images, 3 fingerprints, and 5 cards for each person)
- Zones 256
- Door Access Rules 500
- Public Passwords 1,500
- Elevator Access Rules 300
- Persons for Elevator Access Rules 20,000
- Visitors (Registrations and Appointments) 10,000
- Video Intercom
- Rooms 5,000
- Persons per Room 10
- VDP Accounts 5
- Entrance/Exit Management
- Vehicle Groups 32
- Number of Entrances and Exits 60
- Parking Lots 16
- Entrance/Exit Points 60
- Total Entrances 30
- Total Exits 60
- License Plates per Reserved Parking Space 10,000
- Parking Space Detectors per Parking Lot 500
- Parking Space per Parking Lot 1,500
- Parking Available Displays per Parking Lot 30
- Image Size per Layer 15 MB
- Resolution per Layer 8,100 x 8,100
- Total Layers 128
- Layers per Parking Lot 16
- Resources per Layer 600
- Parking Spaces per Layer 1,000
- Data Records
- Alarms 2,000,000
- Number Plates 2,000,000
- ANPR 2,000,000
- Metadata 2,000,000
- Access Control 2,000,000
- Video Intercom 2,000,000
- Visitors 2,000,000
- Entrances 2,000,000
- Exits 2,000,000
- Forced Exits 2,000,000
- Historical Count 2,000,000
- In-Area Statistical 2,000,000
- Heat Map 2,000,000
- Operator Logs 2,000,000
- Service Logs 2,000,000
- Attendance
- Attendance Terminals 64
- Attendance Periods 64
- Attendance Shifts 100
- Synthesis
- Bridges 5
- Incoming Trigger Events 100
- Incoming Trigger Sources 500
- Inspection
- Intelligent Inspection 1,000
- Inspection Organizations 10
- Levels of Inspection Organizations 10,000
- Inspection Objects 10,000
- Inspection Points 10,000
- Inspection Points per Organization 1,000
- Inspection Plans 1,000
- Inspection Pointers per Inspection Plan 100
- Notification Center Messages 1,000
- Organization, User, Roles
Especificaciones técnicas
A complete and extendable Dahua VMS for versatile, scalable, dependable, and potent central management is DSS Pro. DSS Pro offers multi-service collaboration, easy connections, information sharing, central administration, and client-server architecture. In addition to basic features like user permission management, device management, alarm management, and central storage, the software offers advanced features like access control features, video wall and map configuration, video intercom, attendance, and analytic functions like face and object detection. Additionally, it incorporates add-ons like traffic monitoring and business information.
Dahua DSS Pro V8 Intelligent Inspection Module License Features:
- Integrates All Management Functions into One Client
- Allows Device Initialization and Management
- Live Video Playback from Edge Device
- Supports Access Control and Video Intercom Integration
- Configure Video Wall Layout and Scheme
- Offers Fisheye Camera Dewarping on Live View
Dahua DSS Pro V8 Intelligent Inspection Module License System Features:
Business Configuration
- Device Management
• Bind cameras for alarm configuration
• Initialize Dahua devices
• Add devices via auto search, IP, IP Segment, P2P, Domain, and auto-register
• Turn push notifications on and off
• Manage Dahua devices
• Add third-party devices via ONVIF
• Modify Dahua device IP address and password
• Import Intercom Devices - Role and User Management1
• Manage user permissions and roles for devices and control
• Assign user to defined roles
• Assign appropriate permissions to specific users
• Set user PTZ permissions
• Lock users
• Import domain user and assign roles - Event Management
• Set alarm type: device, video channel, alarm input, IVS alarm, thermal, vehicle block list
• Set alarm scheme: all day, weekday, weekend, or custom template
• Set alarm priority: Low, Medium, High
• Link recordings, snapshots, live video, alarm output, PTZ actions, or e-mail - Storage
• Set edge storage and central storage
• Extend central storage via iSCSI
• Create recording plan by time template: all day template, weekday template, weekend
• template, and custom template
• Backup video from edge storage devices (EVS, NVR, DVR, etc.) by schedule
• Backup video from MDVR, NVR, EVS, DVR via Wi-Fi
• Allocate disks and cameras to different groups to main disk quotas
Note: Video and image recordings cannot be on the same physical hard drive. Separate physical drives are required for video and image storage. System hard drives are only for DSS software installation. - Map
• Use Google online or offline maps, or raster maps
• Supports 8-level sub-map
• Configure camera, alarm input, and intelligent channel, and sub-map hot spots. - Video Wall
• Display/Hide the screen ID
• Display alarm output channels
• Display all alarms in a list
• Click an alarm to locate the alarm source
• Supports screen combinations
• Bind the decode channel with the corresponding screen - Vehicle Block List
• Manage vehicle block lists
• Arm and disarm vehicle block lists
• Import and export vehicle block lists - Video Intercom
• Manage communication between intercom devices via SIP protocol or command
• center.
• Release text information to VTH, release address book to VTO
• View, delete, and freeze DSS Mobile users
System Maintenance
- Backup and Restore
• Automatically backup system database (daily, weekly monthly)
• Manually backup system database
• Restore system database from a server or a local file - System Dashboard
• View overview and detailed system information
• Check CPU, storage, and bandwidth running status
• View device health report for service, device, and user online information
• View event information statistics: total and processed events
• View video and alarm channel source information - Logs
• View system, administrator, and client logs
• Look for devices logs from IPCs, NVRs, and controllers
• Search and export logs - Other Functions
• Support HTTPS
• Supports TLS1.2 email servers
• Set device time calibration
• Set log and alarm information - Service Management
• Delete the subserver
• Release text information to VTH, release address book to VTO
• View, delete, and freeze DSS Mobile users
Control Client
- Live View
• Display device tree; show/hide offline devices.
• Display device IP address or device name on the device tree
• View real-time video
• Apply a common layout (1, 4,6, 8, 9, 13, 16, 20, 25, 36, 64 ) or a customized layout
• Control PTZ cameras
• Set manual recording (PC or central storage)
• Take Snapshots
• Perform instant playback and digital zoom
• Apply fisheye dewarping
• Control smart tracking for fisheye, speed dome, and panoramic cameras
• Audio talk
• Decode to a video wall
• Turn on/off the audio in live view
• Set Region of Interest: divide one window into 4 or 6 parts, one shows whole image and others show details
• Display map in Live View and save current split as a view
• Switch to Playback mode
• Supports NKB1000 keyboard to control cameras in the Live View
• Adjust the video image and the display mode (full screen or original)
• Electronic focus - Playback
• Playback recording from front-end devices or from central storage
• Apply video filters: normal, motion, alarm, video loss,video tampering
• Sync play
• Reverse playback; Supports up to 64x fast play and 1/64x slow play
• Frame-by-frame Playback
• Lock or mark important recording segments for central storage
• Supports .avi, .dav, .flv, .mp4, and .asf video output
• Decode to a video wall
• Apply Fisheye dewarping
• Take a snapshot
• Switch to the Live View
• Apply a common layout (1, 4,6, 8, 9, 13, 16, 20, 25, 36) or a customized layout
• Adjust the video image and the display mode (full screen or original) - Event
• View real-time and historical alarm information
• View detailed alarm information (live video, record and pictures from related camera, alarm source location on the map)
• Acknowledge alarms
• Arm control for alarm source
• Forward alarms to relevant users
• Manually send alarm email to a relevant user
• Search by alarm source, alarm time, status, handle user, and priority
• Search alarm events and export the alarm list - Video Wall
• Manually/Automatically decode real-time video to a video wall
• Manage video wall split
• Change the video channel stream type
• Add box, turn screen on/off, and deliver video stream to control client
• Tour the video channel in one screen
• Set running task on the timeline for schedule plan
• Loop different tasks and set duration time for tour plan
• Supports NKB1000 keyboard to control the video wall. - Map
• View live video or playback video on the map
• Calculate area or length of a GIS map
• Supports visible range and initial angle (for PTZ cameras only)
• Displays visible alarm trigger on the map - Other Functions
• Decode GPU
• Connect NKB via USB - Personnel Management
• Add, edit, and delete personnel and departments
• Program card or fingerprint via USB or other readers
• Authorize access by door or by door group
• Set private passwords and face authentication
• Manage guest, VIP, and employee access
Control Client (Cont.)
- Access Control
• Monitor door status and events
• Set door groups and door levels
• Manage access rights
• Use one key to lock/unlock doors
• Link to fire control system
• Set advanced door rules (passback, first card unlock, for example) - Video Intercom
• Manage communication between intercom devices via SIP protocol or command center
• Release text information to VTH, release address book to VTO - Object Detection
• Take real-time snapshots and record information about human, motorized, and nonmotorized vehicles.
• Extract attributes from snapshots
• Search targets in database by criteria
• Generate daily, weekly, or monthly attribute reports - Thermal
• Supports monocular and binocular thermal imaging devices
• Reads temperature values from video frame - Vehicle Entry
• Edit parking lot information, including total and available spaces and parking lot name
• Manage vehicles, owners, and cards
• Bind LED screen with ITC or spot detector device
• Open barriers via VTO with card or remotely
• Force vehicles to leave parking lot
• Search historical pass records and export data
• Generate daily, weekly, monthly, and annual vehicle entry statistics - Traffic
• Search violations by time, license plate number, violation type.
• Supports daily, weekly, monthly, and annual traffic flow statistics
• Query data for vehicle data based on location, time period, and license plate number
Mobile Client
- History Record
• Show recently viewed channels, open live video or playback via history recordings
• Saves up to 20 history recordings before replacing the oldest recording - Live View
• Open more than one channel at the same time, up to 16 channels
• Supports high-definition (HD), standard-definition (SD), and Fluency (FL)stream types
• Supports PTZ control
• Supports horizontal screen play
• One-key switch to playback
• Take snapshots, record locally, and talk - Playback
• Replay device recordings and center recordings (up to 8x and as slow as 1/8x)
• Marks the calendar to indicate whether there is a video on a particular day
• Supports snapshot
• Manually record to local device
• Supports 1x, 2x, 3x, 4x, 1/2x, 1/4x, and 1/8x playback speeds - Alarm Center
• Subscribe to an alarm
• Process alarms
• View alarm video and picture
• Search alarms - Map
• Supports Google Maps
• Displays the video channel on the map
• View video and perform playback - Other Functions
• View video from a channel and add channel as a favorite
• View picture and video via a local file.
Dahua DSS Pro V8 Intelligent Inspection Module License Technical Specification:
- Hardware – Server
- Operating System
- Windows Server 2019 Standard (64-bit)
- Windows 10 20H2 Pro (64-bit)
- Windows 11 21H2 Pro (64-bit)
- CPU
- Recommended Intel® Xeon® Silver 4114 @ 2.2 GHz 10 Core Processor
- Minimum Intel® Xeon® E-2224 3.4GHz, 8M cache
- Memory
- Recommended 16 GB
- Minimum 8 GB
- System Disk 7200 RPM Enterprise Class HDD 1 TB, 500 GB free space for DSS
- Storage Disk 7200 RPM Enterprise Class HDD 1 TB, 500 GB free space for DSS
- Network Connection
- Recommended Four (4) 1000 Mbps Ethernet Port
- Minimum Two (2) 1000 Mbps Ethernet Port
- Languages English (United States), Simplified Chinese
- Operating System
- Hardware – Control Client
- Operating System
- Windows Server 2019 Standard (64-bit)
- Windows 10 20H2 Pro (32-bit)
- Windows 10 20H2 Pro (64-bit)
- Windows 11 21H2 Pro (64-bit)
- CPU
- Recommended Intel® Core i7-11700 at 2.50 GHz
- Minimum Intel® Core i5-9500 at 3.00 GHz
- Memory
- Recommended 16 GB
- Minimum 16 GB
- Graphics Card
- Recommended NVIDIA® GeForce® RTX 3060
- Minimum Intel® UHD Graphics 630
- Storage
- Recommended 200 GB free space
- Minimum 100 GB free space
- Network Connection One (1) 1000 Mbps Ethernet Port
- Languages Arabic, Bulgarian, Czech, Danish, English (United states), Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Macedonian, Polish, Brazilian Portuguese, Russian, Simplified Chinese, Spanish, Thai, Traditional Chinese, Turkish, Ukrainian, Vietnamese
- Operating System
- Hardware – DSS Mobile Client
- iPhone Model: iPhone 5S or later OS: iOS 10.0 or later
- Android Resolution: 1280 x 720 or higher RAM: 2 GB or more OS: Android 5.0 or later
- Language Arabic, English (United States), French, Russian, Simplified Chinese
- Total System Management Functions
- Organization, User, Roles
- Organization 10 Hierarchies; 999 Organization Total
- Roles 500 User Permissions
- Roles per user 32
- Users 200 Online Users 2,500 Total Users
- Users for VDP Mobile App 500 Online Users 5,000 Total Users
- Record and Event Plan
- General Recording Plans 3,000
- Motion Detection Recording Plans 3,000
- Video Retrieval Plans 3,000
- File Retrieval Plans 3,000
- Record and Event Plan (Cont.)
- Event Rules 3,000
- Combined Event Rules 100
- Combined Events 1,000
- Map
- Person and Vehicle Groups 999
- Sub Groups per Level 10
- Hierarchies 8
- Offline GIS Map Package 500 MB
- Raster Maps Up to 256
- Submaps per Map Up to 32
- Raster Map Size 15 MB
- Raster Map Resolution 8,100 x 8,100
- Resources per GIS Map Up to 300
- Resources per Raster Map Up to 300
- Person and Vehicle Management
- Persons 300,000
- Cards 600,000
- Faces 300,000
- Finger Prints 600,000
- Vehicles 50,000
- Vehicle Watch List 32
- Vehicles per Watch List 50,000
- Intelligent Analysis
- People Counting Groups 30
- People Counting Rules per Group 20
- Access Control
- Persons for Door Access Rules 30,000 (1 password, 2 face images, 3 fingerprints, and 5 cards for each person)
- Zones 256
- Door Access Rules 500
- Public Passwords 1,500
- Elevator Access Rules 300
- Persons for Elevator Access Rules 20,000
- Visitors (Registrations and Appointments) 10,000
- Video Intercom
- Rooms 5,000
- Persons per Room 10
- VDP Accounts 5
- Entrance/Exit Management
- Vehicle Groups 32
- Number of Entrances and Exits 60
- Parking Lots 16
- Entrance/Exit Points 60
- Total Entrances 30
- Total Exits 60
- License Plates per Reserved Parking Space 10,000
- Parking Space Detectors per Parking Lot 500
- Parking Space per Parking Lot 1,500
- Parking Available Displays per Parking Lot 30
- Image Size per Layer 15 MB
- Resolution per Layer 8,100 x 8,100
- Total Layers 128
- Layers per Parking Lot 16
- Resources per Layer 600
- Parking Spaces per Layer 1,000
- Data Records
- Alarms 2,000,000
- Number Plates 2,000,000
- ANPR 2,000,000
- Metadata 2,000,000
- Access Control 2,000,000
- Video Intercom 2,000,000
- Visitors 2,000,000
- Entrances 2,000,000
- Exits 2,000,000
- Forced Exits 2,000,000
- Historical Count 2,000,000
- In-Area Statistical 2,000,000
- Heat Map 2,000,000
- Operator Logs 2,000,000
- Service Logs 2,000,000
- Attendance
- Attendance Terminals 64
- Attendance Periods 64
- Attendance Shifts 100
- Synthesis
- Bridges 5
- Incoming Trigger Events 100
- Incoming Trigger Sources 500
- Inspection
- Intelligent Inspection 1,000
- Inspection Organizations 10
- Levels of Inspection Organizations 10,000
- Inspection Objects 10,000
- Inspection Points 10,000
- Inspection Points per Organization 1,000
- Inspection Plans 1,000
- Inspection Pointers per Inspection Plan 100
- Notification Center Messages 1,000
- Organization, User, Roles
Comparación de productos
Garantía del producto
Garantía estándar del fabricante según corresponda
Política de devoluciones
Garantía de precio
!00% siempre estamos por debajo del precio del mercado.
Explora colecciones de marca
Colecciones
Nuestros servicios
