Acerca del producto

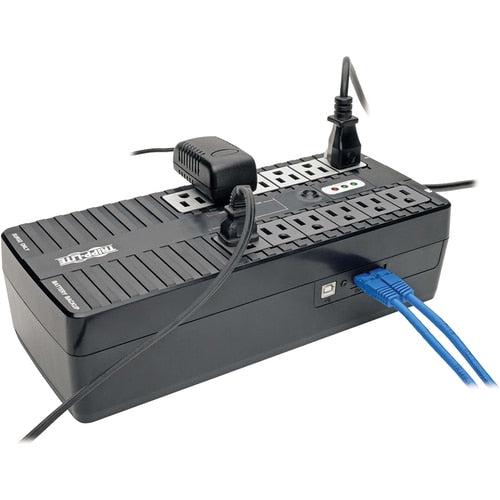

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes six battery-supported outlets for computer, monitor and four vital system peripherals, plus six additional surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. Built-in, single-line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dialup/DSL phone connection. UPS system meets RoHS standards. 750VA/450-watt power handling ability supports entry-level PC systems for up to 45 minutes during power fail conditions.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | 3 Status LEDs; GREEN #1 LED reports ECO mode off/on status; GREEN #2 LED reports line/battery mode operation, low-battery condition, overload and replace-battery notifications; RED LED reports battery-low, overload, replace-battery and fault conditions |
| Warranty | |
| Additional Warranty Information | 2 year $100,000 connected equipment guarantee |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Replace Battery |
| Fault | |
| Low Battery | |
| Overload | |
| Battery Information | |
| Backup/Run Time (Half Load) | 8.60 Minute |
| Backup/Run Time (Full Load) | 2 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 6.50 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 6.82 lb (3093.50 g) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Height | 3.35" (85.09 mm) |
| Width | 5.12" (130.05 mm) |
| Depth | 12.20" (309.88 mm) |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | ECO750UPS |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Name | ECO 750VA Desktop UPS |
| Product Series | ECO |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards | UL Listed Certification |
| Country of Origin | Vietnam |
| Recycled | No |
| Assembly Required | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| 115 V AC | |
| 120 V AC | |
| Surge Energy Rating | 316 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Technical Information | |
| Application/Usage | Business |
| Computer | |
| Kiosk | |
| Printer | |
| TV | |
| Blu-ray Player | |
| Security System | |
| Gaming Console | |
| Digital Signage | |
| Router | |
| ATM | |
| Dataline Protection | RJ-45 |
| RJ-11 | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
