Acerca del producto

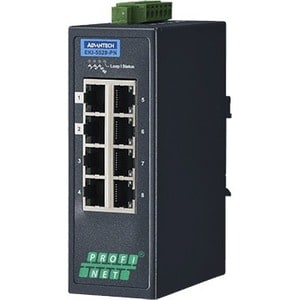

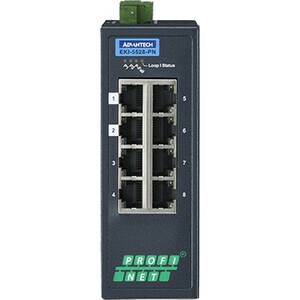

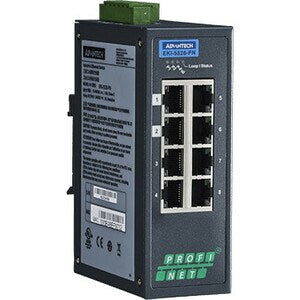

The EKI-5526-PN and EKI-5528-PN are new generation of entry-level managed switch products. They support media redundancy protocols and meet the PROFINET real time standard. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 V DC ) is dedicated to operating in areas of unstable power and rugged environments.
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 2 |
| Interfaces/Ports | |
| Modular | No |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Media & Performance | |
| Network Technology | 10/100Base-TX |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 4.72" (120 mm) |
| Width | 1.69" (43 mm) |
| Depth | 3.31" (84 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | EKI-5528-PN-AE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-5528-PN |
| Product Name | 8 Port Entry-level Managed Switch Supports PROFINET |
| Product Line | ProView |
| Product Series | EKI-5000 |
| Brand Name | Advantech |
