Acerca del producto

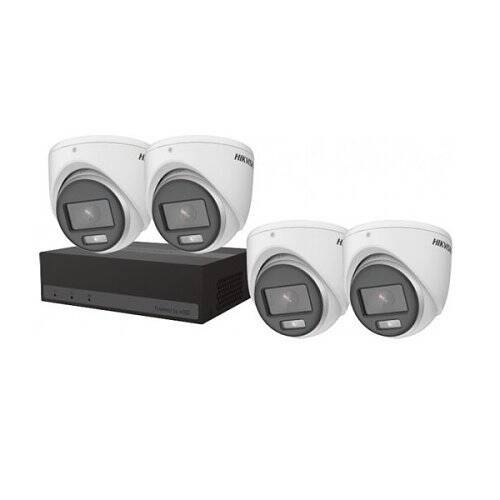

The Hikvision ColorVu TurboHD Kit is a 4-channel, 4-camera eDVR kit with built-in 512GB (480 GB available) eSSD for rapid and lightweight read/write operation. BNC analog connections ensure closed-circuit recording up to 2MP (1080p HD) with 24/7 colour imaging via large-aperture light capture (F1.0) and ColorVu rendering; creating full-colour images even in low-to-no-light scenarios. IP67 water and dust resistance ensures year-round operation in both indoor and outdoor environments.
Supports additional analog cameras up to 6MP. Kit includes 4x DS-2CE70DF0T-MF 2.8mm analog turret cameras, 1x DS-E04HQHI-B 4-channel eDVR with 512GB eSSD. Power supply for cameras sold separately (requires 12 VDC ± 25%).
EKT-SSD424 Specs and Features
DS-E04HQHI-B eDVR
- Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
- Video Compression: H.265 Pro/H.265
- Encoding Resolution: 4 MP Lite/1080p/720p/WD1/4CIF/QVGA/CIF
- Frame Rate
- Main stream: 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- When 1080p Lite mode enabled: 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate: According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
- Stream Type: Video, Video & Audio* Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
- IP Video Input: 1-ch, up to 6 MP resolution, supports H.265+/H.265 IP cameras
- Analog Video Input: 4-ch
- BNC interface: (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input: 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
- AHD Input: 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/30, 720p/25
- HDCVI Input: 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/30, 720p/25
- CVBS Input Support: HDMI Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Input: 4-ch via coaxial cable
- Audio Output: 1-ch via HDMI
- Synchronous playback: 4-ch
- Network Total Bandwidth: 72 Mbps
- Incoming bandwidth: 1 Mbps
- Remote Connections: 32
- Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
- Network Interface: 1, RJ45 10/100Mbps self-adaptive Ethernet interface
- Capacity: Built-in 480 GB eSSD* Note: The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/Out: N/A
- Power Supply: 12 VDC, 1 A
- Consumption: ? 5.4 W (with eSSD)
- Working Temperature: -10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity: 10% to 90%
- Dimensions (W × D × H): 151 × 121× 46 mm (5.94 × 4.76 × 1.81 inch)
- Weight: ? 0.5 kg (with eSSD, 1.1 lb.)
DS-2CE70DF0T-MF Turret Cameras
- Image Sensor: 2 MP CMOS
- Signal System: PAL/NTSC
- Resolution: 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: NTSC: 1/30 s to 1/50,000 s
- Lens: 2.8 mm
- Field of View: 2.8 mm
- Horizontal FOV: 98°
- Vertical FOV: 51°
- Diagonal FOV: 115°
- Lens Mount: M12
- Light Alarm: Solid Light Alarm (White Light)
- WDR (Wide Dynamic Range): Digital WDR
- Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotation: 0° to 360°
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- Day/Night Mode: Color
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: DWDR, BLC, HLC, Global
- Noise Reduction: 3D DNR/2D DNR
- Language: English
- Function: Brightness, Mirror, Sharpness, Anti-Banding, Smart Light
- Video Output: Switchable TVI/AHD/CVI/CVBS
- General Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 2.4 W
- Protection Level: IP67
- Material: Metal
- White Light Range: Up to 20 m
- Communication: HIKVISION-C
- Dimensions: ? 85.1 mm × 77.62 mm (? 3.35"" × 3.05"")
- Weight: Approx. 320 g (0.71 lb)
Especificaciones técnicas
The Hikvision ColorVu TurboHD Kit is a 4-channel, 4-camera eDVR kit with built-in 512GB (480 GB available) eSSD for rapid and lightweight read/write operation. BNC analog connections ensure closed-circuit recording up to 2MP (1080p HD) with 24/7 colour imaging via large-aperture light capture (F1.0) and ColorVu rendering; creating full-colour images even in low-to-no-light scenarios. IP67 water and dust resistance ensures year-round operation in both indoor and outdoor environments.
Supports additional analog cameras up to 6MP. Kit includes 4x DS-2CE70DF0T-MF 2.8mm analog turret cameras, 1x DS-E04HQHI-B 4-channel eDVR with 512GB eSSD. Power supply for cameras sold separately (requires 12 VDC ± 25%).
EKT-SSD424 Specs and Features
DS-E04HQHI-B eDVR
- Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
- Video Compression: H.265 Pro/H.265
- Encoding Resolution: 4 MP Lite/1080p/720p/WD1/4CIF/QVGA/CIF
- Frame Rate
- Main stream: 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- When 1080p Lite mode enabled: 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate: According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
- Stream Type: Video, Video & Audio* Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio Compression: G.711u
- Audio Bitrate: 64 Kbps
- IP Video Input: 1-ch, up to 6 MP resolution, supports H.265+/H.265 IP cameras
- Analog Video Input: 4-ch
- BNC interface: (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input: 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
- AHD Input: 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/30, 720p/25
- HDCVI Input: 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/30, 720p/25
- CVBS Input Support: HDMI Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Input: 4-ch via coaxial cable
- Audio Output: 1-ch via HDMI
- Synchronous playback: 4-ch
- Network Total Bandwidth: 72 Mbps
- Incoming bandwidth: 1 Mbps
- Remote Connections: 32
- Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
- Network Interface: 1, RJ45 10/100Mbps self-adaptive Ethernet interface
- Capacity: Built-in 480 GB eSSD* Note: The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/Out: N/A
- Power Supply: 12 VDC, 1 A
- Consumption: ? 5.4 W (with eSSD)
- Working Temperature: -10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity: 10% to 90%
- Dimensions (W × D × H): 151 × 121× 46 mm (5.94 × 4.76 × 1.81 inch)
- Weight: ? 0.5 kg (with eSSD, 1.1 lb.)
DS-2CE70DF0T-MF Turret Cameras
- Image Sensor: 2 MP CMOS
- Signal System: PAL/NTSC
- Resolution: 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: NTSC: 1/30 s to 1/50,000 s
- Lens: 2.8 mm
- Field of View: 2.8 mm
- Horizontal FOV: 98°
- Vertical FOV: 51°
- Diagonal FOV: 115°
- Lens Mount: M12
- Light Alarm: Solid Light Alarm (White Light)
- WDR (Wide Dynamic Range): Digital WDR
- Angle Adjustment
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotation: 0° to 360°
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- Day/Night Mode: Color
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: DWDR, BLC, HLC, Global
- Noise Reduction: 3D DNR/2D DNR
- Language: English
- Function: Brightness, Mirror, Sharpness, Anti-Banding, Smart Light
- Video Output: Switchable TVI/AHD/CVI/CVBS
- General Operating Conditions: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 2.4 W
- Protection Level: IP67
- Material: Metal
- White Light Range: Up to 20 m
- Communication: HIKVISION-C
- Dimensions: ? 85.1 mm × 77.62 mm (? 3.35"" × 3.05"")
- Weight: Approx. 320 g (0.71 lb)
