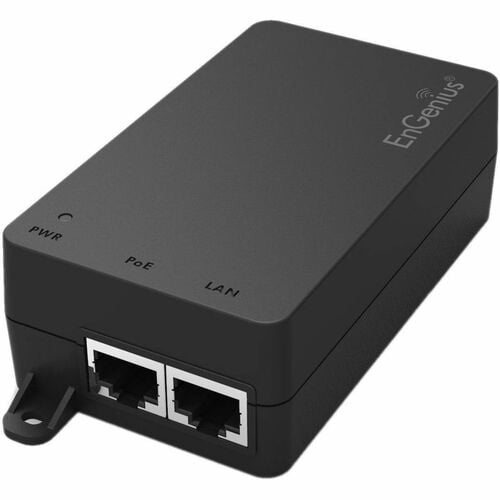

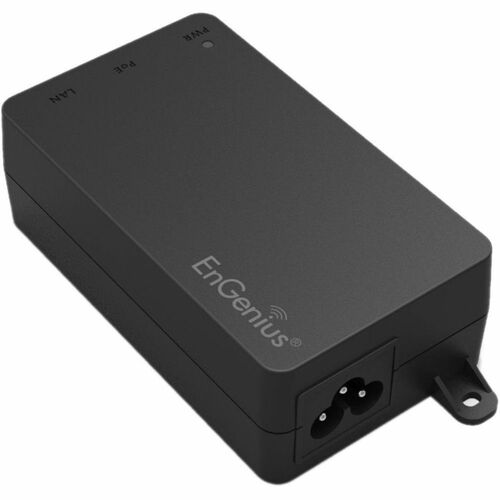

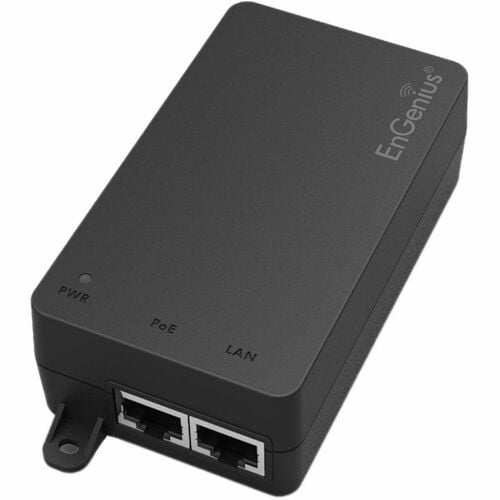

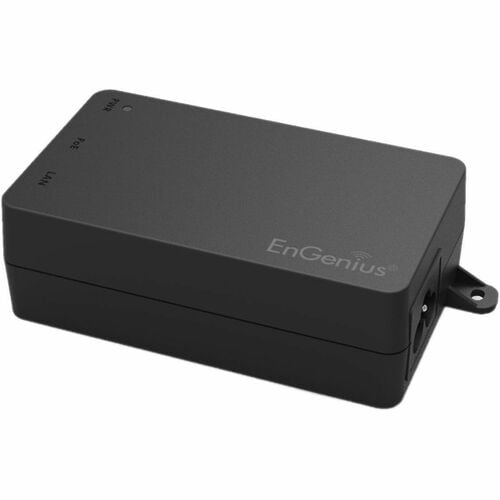

The EnGenius EPA5060HBT PoE Injector delivers 60-watts of power and 2.5Gb data communication to compatible network devices up to 328 feet (100m) over CAT5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.IEEE 802.3bt Type 3 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE -Supports 10/100/1000 Mbps Up to 2.5Gb applications
- Output power up to 60W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE up to 60W with full power capabilities
- Single-port PoE Midspan Injector flexible design allows for either desktop or surface-mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
Especificaciones técnicas
| Interfaces/Ports | |
| Input Ports | 1 x RJ-45 |
| Output Ports | 1 x RJ-45 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Technical Information | |
| Protection Type | Surge Protection |
| Short Circuit | |
| Over Current | |
| Over Voltage | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Maximum Input Current | 1.12 A |
| Maximum Output Power | 60 W |
| Minimum Input Current | 750 mA |
| Physical Characteristics | |
| Weight (Approximate) | 7 oz (198.45 g) |
| Length | 3.90" (99.06 mm) |
| Mount Type | Desktop/Surface-mountable |
| Height | 1.30" (33.02 mm) |
| Width | 2.27" (57.66 mm) |
| Product Color | Black |
| General Information | |
| Product Type | PoE Injector |
| Manufacturer Part Number | EPA5060HBT |
| Manufacturer Website Address | http://www.engeniustech.com |
| Packaged Quantity | 1 |
| Manufacturer | EnGenius Technologies, Inc |
| Product Model | EPA5060HBT |
| Product Name | 60W 802.3af/at/bt 2.5GbE Power over Ethernet Injector |
| Brand Name | EnGenius |
